Alenia Aermacchi S-211


Advanced Jet Trainer / Light Strike Aircraft


Italy | 1984



"The Alenia Aermacchi S-211 advanced trainer was initially conceived of through a private venture endeavor by SIAI-Marchetti of Italy."



Authored By: Staff Writer | Last Edited: 08/17/2017 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site; No A.I. was used in the generation of this content.
Sensing the growing need for light, jet-powered dual-role aircraft, the Italian concern of SIAI-Marchetti proposed a new aircraft through a self-funded, in-house venture designated as the "S.211". The primary target of this program would be its existing operators managing the propeller-driven SF.260 light trainers. Conventional by any regard, the S.211 would allow budget conscious air forces around the world to utilize a modern two-seat training platform that doubled as a light attack aircraft. Such developments were growing in popularity and typified by aircraft types of the period including the Spanish CASA C-101 and the joint French/German Dassault/Dornier Alpha Jet.

Design work on the S.211 began in 1976 to which the project was unveiled publicly in 1977 at the Paris Air Show. Two prototypes were then ordered and the first one went airborne on April 10th, 1981. After a period of trials and evaluations, SIAI-Marchetti was able to net its first procurement order in 1983 through Singapore for ten aircraft. Formal introduction of the type occurred in 1984 with the Singapore Air Force. Production of the aircraft spanned from 1981 into 1994 to which the Philippine Air Force and, later, the Haitian Air Force, joined as operators. In January of 1997, Aermacchi acquired SIAI-Marchetti and production rights to the S.211 was inherited, the designation slightly altered to "S-211". Since the mid-1980s, there have been approximately fifty-eight total S-211 aircraft sold and most were locally assembles under license by the respective customer. Singapore procured 30 units to the Philippines 24. Haiti purchased just 4 examples.

Article Continues Below Advertisement...
ADVERTISEMENTS
The S.211/S-211 falls into a specially identified group of aircraft that are procured with the primary intention of training up-and-coming pilots on a jet-powered platform while offering strike capabilities as secondary. Such designs generally rely upon a basic airframe with modern equipment and access to basic ordnance options. The crew of two undoubtedly spreads the workload about and the jet-propulsion supplies the needed performance capabilities for the low-level strike role. Many manufactures have supplied trainer/light strike aircraft since the 1960s and this group continues to be an important part of modern world air forces - though the dual-role functionality perhaps proving more important to developing nations or those with restrictive procurement budgets.

Externally, the S-211/S.211 is a no-frills platform crewed by two personnel sitting in a tandem arrangement under a single-piece canopy (hinged to the right side). Both crew members sit in Martin-Baker ejection seats while the airframe exhibits very smooth and clean contours from the slim, pointed nose cap to the rear tapered empennage. The tail section features a single vertical tail fin and high-mounted tailplanes with the single engine exhaust port located at the base of the tail unit. The main wing assemblies are shoulder-mounted, allowing underwing ordnance the proper ground clearance. There is noticeable sweep along their leading edges only (less noticeable along the trailing edges). Power is served through a single turbofan installation being aspirated through two small intake openings to either side of the cockpit and exhausted through a single port at the rear. The undercarriage is fully-retractable and consists of a pair of single-wheeled main legs and a single-wheeled nose leg. Construction of the S-211 body is primarily of composites, this making up some 60% of the aircraft and providing for a lighter overall end-product.

Power for the S-211 is served through a single Pratt & Whitney JT15D-4C turbofan engine developing 2,500lbs of thrust. This supplies the airframe with a top speed of over 400 miles per hour. Range is listed at 1,000 miles with a service ceiling of 40,000 feet. Rate-of-climb is reported at 4,200 feet per minute.

In the strike role, the S-211 is cleared to carry several basic, externally-mounted munitions across four underwing hardpoints (though ordnance is limited to ground-attack classes). Up to 1,500lbs of stores can be carried aloft. Munition options include machine gun pods, rocket pods and conventional drop bombs. As the S-211 lacks any nose-mounted internal radar facility, it does not support air-to-air missile weaponry. There is also no standard internal cannon in the base design.

At one point, the S-211 became a possible contender for the United State's JPATS program (Joint Primary Aircraft Training System) which sought to procure a single-minded trainer aircraft for both the USAF and USN. The program began in the early 1990s and concluded in 1995 with the Beechcraft T-6 Texan II selected the winner. The Aermacchi S-211 submission was designated as the "S-211A" and was assisted through the proposal process by the American firm of Grumman/Northrop Grumman. Only two S-211A models were produced for the endeavor and these were refurbished and modified examples of a pair of ex-Haitian Air Force systems.

Aermacchi (now Alenia Aermacchi) attempted an S-211 modernization project in 2004 resulting in the new "M-311". As of 2013, the aircraft is still considered developmental and only two prototypes have been completed. The initial prototype recorded its first flight in June of 2005 and Chile signed on with Alenia Aermacchi to locally-produce the aircraft in Chile for interested South American customers. In May of 2008, Alenia Aermacchi joined with powerhouse Boeing to help market the M-311 worldwide. In 2012, the designation of the M-311 was changed to "M-345".

The Philippine Air Force is the sole operator of the S-211 aircraft today (2012) as Singapore and Haiti have both since given up operations with the type. Haitian S-211s numbered only four aircraft though these were eventually sold off to civilian buyers in the United States. As many as 20 ex-military S-221s have been operated by civilian parties in Australia (Singaporean AF S-211s were actually based in Australia due to fewer airspace restrictions). The Philippine Air Force currently manages a stable of just 5 active service S-211s out of its available 25 airframes.

Content ©MilitaryFactory.com; No Reproduction Permitted.
Power & Performance
Those special qualities that separate one aircraft design from another. Performance specifications presented assume optimal operating conditions for the Alenia Aermacchi S-211 Advanced Jet Trainer / Light Strike Aircraft.
1 x Pratt & Whitney JT15D-4C turbofan engine developing 2,500 lb of thrust.
Propulsion
414 mph
667 kph | 360 kts
Max Speed
40,026 ft
12,200 m | 8 miles
Service Ceiling
1,038 miles
1,670 km | 902 nm
Operational Range
4,200 ft/min
1,280 m/min
Rate-of-Climb
City-to-City Ranges
Operational range when compared to distances between major cities (in KM).
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Structure
The nose-to-tail, wingtip-to-wingtip physical qualities of the Alenia Aermacchi S-211 Advanced Jet Trainer / Light Strike Aircraft.
2
(MANNED)
Crew
30.5 ft
9.31 m
O/A Length
27.7 ft
(8.43 m)
O/A Width
12.5 ft
(3.80 m)
O/A Height
4,079 lb
(1,850 kg)
Empty Weight
6,063 lb
(2,750 kg)
MTOW
Design Balance
The three qualities reflected below are altitude, speed, and range. The more full the box, the more balanced the design.
RANGE
ALT
SPEED
Armament
Available supported armament and special-mission equipment featured in the design of the Alenia Aermacchi S-211 Advanced Jet Trainer / Light Strike Aircraft .
Variable - up to 1,500lb of external stores underwing to include gun pods, rocket pods and conventional drop ordnance.
Variants
Notable series variants as part of the Alenia Aermacchi S-211 family line.
S-211 - Initial Production Model Designation; 2 x prototypes completed; 58 examples produced under SIAI-Marchetti label.
S-211A - Proposed variant for US JPATS program; 2 examples modified from ex-Haitian AF models.
M-311 - Modernized, uprated variant; since redesignated to M-345; under Alenia-Aermacchi label.
M-345 - Redesignation of M-311 from 2012 onwards.
Operators
Global customers who have evaluated and/or operated the Alenia Aermacchi S-211. Nations are displayed by flag, each linked to their respective national aircraft listing.

Total Production: 58 Units

Contractor(s): SIAI-Marchetti / Alenia Aermacchi - Italy
National flag of Australia National flag of the Philippines National flag of Singapore National flag of the United States

[ Australia; Haiti; Philippines; Singapore; United States ]
Relative Max Speed
Hi: 500mph
Lo: 250mph
Aircraft Max Listed Speed (414mph).

Graph Average of 375 MPH.
Era Crossover
Pie graph section
Pie graph section
Showcasing Aircraft Era Crossover (if any)
Max Alt Visualization
Small airplane graphic
Production Comparison
58
36183
44000
Entry compared against Ilyushin IL-2 (military) and Cessna 172 (civilian) total production.
MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030
Aviation Timeline
EarlyYrs
WWI
Interwar
WWII
ColdWar
Postwar
Modern
Future
1 / 1

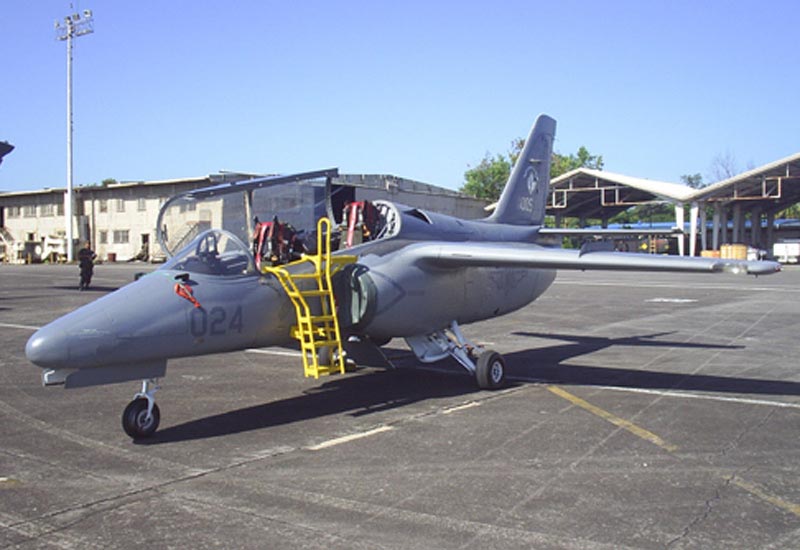

Image of the Alenia Aermacchi S-211
Image courtesy the Public Domain via Wikipedia (user Phichanad)

Mission Roles
Some designs are single-minded in their approach while others offer a more versatile solution to airborne requirements.
CLOSE-AIR SUPPORT
TRAINING
Recognition
Some designs stand the test of time while others are doomed to never advance beyond the drawing board; let history be their judge.
