CONVAIR C-131 / R4Y Samaritan


MEDEVAC / VIP Transport / Trainer Platform [ 1950 ]



The CONVAIR twin-engine C-131 aircraft was utilized by both the United States Air Force and United States Navy after its arrival in 1950.



Authored By: Staff Writer | Last Edited: 04/22/2016 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
CONVAIR introduced its CV-240 passenger airliner in 1947 with American Airlines and production of this aircraft eventually reached 1,181 units up until 1954. In time, the company was able to sell a modified transport line of this same product to the US military which took them under the designation of C-131 "Samaritan". The new transport was introduced in 1950 and managed a healthy production total of 512 units before being retired in 1990. It went on to serve the United States Air Force (USAF), United States Navy (USN) and United States Coast Guard (USCG) as well as a single example sent to the Paraguayan Air Force. The CV-340 was another related CONVAIR airliner model which influenced some of the later Samaritan variants. These featured a lengthened fuselage, wider wings and improved-power radial engines.

The C-131 was a highly conventional aircraft for the period, featuring a pair of leading edge engine nacelles along slightly-swept, low-mounted main wing appendages. The fuselage was tubular with a forward-set cockpit aft of a short nose assembly. The fuselage then tapered somewhat to form the empennage to which a large-area vertical tail fin was affixed. Low-set horizontal planes completed the tail unit. Windows dotted the sides of the passenger cabin. The aircraft sat atop a wheeled tricycle arrangement, a departure from the "tail dragger" designs of previous years. The main legs, held under the engine nacelles, utilized two wheels as did the nose leg held under the cockpit floor. This configuration gave the Samaritan a pronounced stance and allowed for proper clearance of the large, spinning propeller blades at each engine. A typical crew numbered four with passenger seating able to total some 48 persons. Power was served through 2 x Pratt & Whitney R-2800-99 "Double Wasp" radial pistol engines of 2,500 horsepower each and driving three-bladed propeller assemblies. This provided a maximum speed of 295 miles per hour with a cruising speed closer to 255 miles per hour. Range was listed at 450 miles with a service ceiling of 24,500 feet and rate-of-climb of 1,400 feet per second.

The C-131 was first delivered to the USAF in 1954 and followed the similar T-29 "Flying Classroom" training platforms which had already operated since 1949. Flying Classrooms were used to train navigator crew, bombardiers and radar operators in the finer points of their craft while in an active aerial setting. The C-131, on the other hand, was utilized by the USAF as a MEDEVAC platform capable of hauling patient litters and medical staff. When appropriately modified with seating, it also served as a general passenger hauler. Four C-131s served (temporarily) in the VIP transport role under the designation of VC-131H. Other C-131 airframes were used in evaluation roles/conversion programs to fulfill roles such as fixed-wing gunship testing, photo-reconnaissance, electronics training and the like.

Notable variants of the entire C-131 line including the C-131A, C-131B, C-131D, C-131F, T-29A, T-29C and T-29D. C-131A models were passenger haulers based on the CONVAIR CV-240 with seating for thirty-nine and 26 units built in all. The C-131B followed suit and added elements of the succeeding CV-340 model and with seating for forty-eight across 36 total examples manufactured. The C-131D was a militarized CV-340 with seating for forty-four and 33 were produced. The C-131F was the USN R4Y-1 (C-131A) under a new designation. The T-29A was the initial trainer model with an unpressurized cabin and workstations for fourteen students - some 46 airframes being produced. The T-29C followed the T-29B with its pressurized cabin and powered by 2 x Pratt & Whitney R-2800-29W series radials of 2,500 horsepower. 119 examples were produced of this type. The T-29D served as a bombardier training platform based on the T-29C with workstations for six. 93 were produced.

The USAF and USN both used the C-131 and T-29 variants (original USN C-131s were known as "R4Y"). Ultimately, ex-USN units made their way into the USCG inventory when twenty-two of the type were transferred under the HC-131A designation for Search And Rescue (SAR) duty. These were painted in the usual USCG red and white scheme. In USAF operations, the C-131 was eventually given up for the more modern, jet-powered McDonnell Douglas C-9 "Nightingale" (essentially converted DC-9 airliners).

Despite their age, several C-131s and T29s have been preserved in indoor and outdoor museums across the United States.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1950

Origin
United States national flag graphic
United States

Crew
4

Production
512
UNITS


National flag of the United States Paraguay; United States
(OPERATORS list includes past, present, and future operators when applicable)
Special-Mission: Search & Rescue (SAR)
Ability to locate and extract personnel from areas of potential harm or peril (i.e. downed airmen in the sea).
Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.
VIP Service
Used in the Very-Important-Person (VIP) passenger transport role, typically with above-average amenities and luxuries as standard.
Training (General)
Developed ability to be used as a dedicated trainer for student pilots (typically under the supervision of an instructor).


Length
79.1 ft
(24.10 m)
Width/Span
105.3 ft
(32.10 m)
Height
28.1 ft
(8.56 m)
Empty Wgt
25,441 lb
(11,540 kg)
MTOW
46,998 lb
(21,318 kg)
Wgt Diff
+21,557 lb
(+9,778 kg)
(Showcased structural values pertain to the CONVAIR CV-240 Samaritan production variant)
Installed: 2 x Pratt & Whitney R-2800-99W Double Wasp 18-cylinder air-cooled radial piston engines developing 2,100 horsepower each.
Max Speed
293 mph
(471 kph | 254 kts)
Ceiling
45,997 ft
(14,020 m | 9 mi)
Range
1,650 mi
(2,655 km | 4,917 nm)
Rate-of-Climb
1,520 ft/min
(463 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the CONVAIR CV-240 Samaritan production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None.


Supported Types




(Not all ordnance types may be represented in the showcase above)
C-131 "Samaritan" - Base Series Designation
C-131A - Initial passenger transport model for USAF; 26 examples.
MC-131A - MEDEVAC C-131A up to 1962
VC-131 - VIP C-131A up to 1962
C-131B - Based on CV-240/CV-340 with increased seating capacity; 36 examples produced.
JC-131B - Missile Tracking Platform based on the C-131B model; six converted as such.
NC-131B - C-131B used for testing
VC-131B - C-131B staff transport
YC-131C - Testbed CV-340 models with Allison 501D-13 series engines.
C-131D - CV-340 model with seating for 44; 33 examples completed.
VC-131D - C-131D as staff transport
C-131E - SAC electronic countermeasures platform; 15 examples with two USN transfers and single C-131D model conversion.
TC-131E - Redesignation of C-131E
C-131F - Redesignation of USN R4Y-1
RC-131F - Six C-131F models converted to photo-reconnaissance platforms.
VC-131F - Redesignation of R4YZ
C-131G - Redesignation of R4Y-2
EC-131G - Single conversion of C-131G for electronics training.
RC-131G - Single C-131G modified for airways observation.
VC-131G - Staff transport version of C-131G
C-131H - Conversions of some C-131s with turboprop engines and CV-540 model standards.
NC-131H - Single conversion for in-flight simulation training.
R4Y-1 - USN CV-340 models; 36 produced
R4Y-1Z - USN staff transport
R4Y-2 - USN C-131E models
R4T-2Q - Proposed radar countermeasures platform based on R4Y-2 models.
R4Y-2S - Proposed ASW trainer
XT-29 - Proposed trainer based on CV-240 for USAF
T-29A - Flying Classroom; unpressurized cabin
VT-29A - Staff transport
T-29B - Flying Classroom; pressurized cabin
NT-29B - Single testbed model
VT-29B - Staff transport
T-29C - Fitted with 2 x Pratt & Whitney R-2800-29W model engines; 119 examples.
AT-29C - T-29C for airways observation
ET-29C - Redesignated AT-29C
VT-29C - T-29C staff transport
T-29D - Bombardier training platform; 93 examples.
ET-29D - Airways observation platform based on T-29D.
VT-29D - Staff transport
XT-29E - Proposed turboprop model of the T-29B
YT-32- Proposed bomber crew training platform
HC-131A - USCG SAR model; 22 examples


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 15

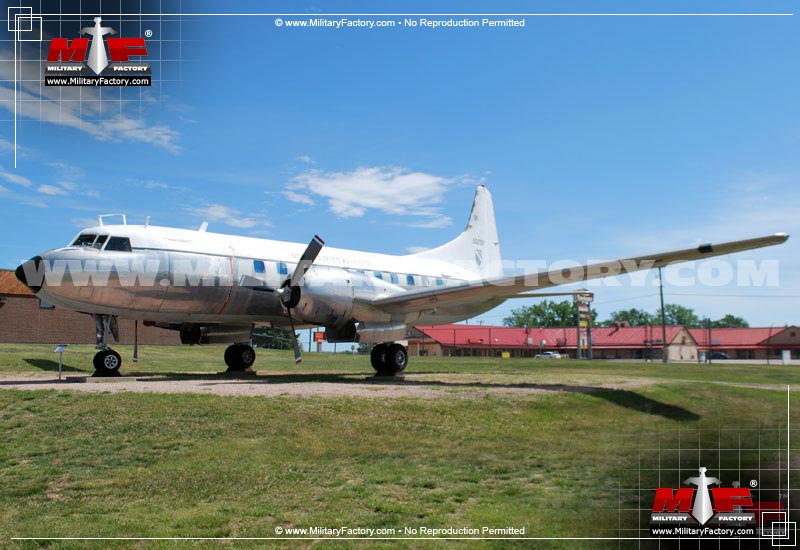

Image of the CONVAIR C-131 / R4Y Samaritan
