Focke-Wulf Fw 191


Medium Bomber Aircraft [ 1942 ]



Three Focke-Wulf Fw 191 bomber prototypes were completed before the program was cancelled in full.



Authored By: Staff Writer | Last Edited: 07/28/2016 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Fw 191 was the Focke-Wulf submission to the German Air Ministry's "Bomber B" program of 1939. Authorities were sold on the concept of high-speed bombers ("schnellbombers") and envisioned fleets of these medium-class, multi-engined aircraft reaching targets all across England from German-held bases across the Channel and able to outrun and trailing adversary. The Fw 191 was certainly a sound design though issues with the required technology (many of its facilities were to be electrically-driven) and engines delayed the project before it was finally doomed altogether along with the Bomber B initiative itself. Only three prototypes were ever completed.

Several major German concerns were in play for the Bomber B requirement and these represented by Arado, Dornier, Junkers and Focke-Wulf. The Arado concept was dropped from contention while slow work was committed to the Dornier submission. Only the Junkers and Focke-Wulf proposals were seriously furthered. The German requirement called for a few specifics such as a pressurized cabin for the flight crew, remote-controlled armament, all-new engine designs (to be provided by either Junkers or Daimler-Benz), a top speed of 600 kmh, excellent endurance over land and water and an internal/external ordnance load of up to 8,800lbs. Focke-Wulf, largely remembered for their excellent Fw 190 single-seat, single-engine fighter of World War 2, proposed their Fw 191 - a twin-engined, multi-crew offering incorporating the many concepts the German Air Ministry sought.

Externally, the Fw 191 fielded a pencil-like, well-streamlined fuselage with its cockpit integrated into the airflow as seen in the German Heinkel He 111 medium bomber (and later in the American Boeing B-29 Superfortress). This allowed for an all-glazed nose section with no cockpit "stepping" to break up the design. Since the crew was amassed in the forward portion of the aircraft, this non-stepped cockpit approach made crew communication excellent and visibility out of the cockpit relatively good. The fuselage tapered at the rear and this was capped by twin outboard vertical tail fins. Wings were fitted at the center of the design and high-mounted for good ground clearance. Engines were fitted into streamlined nacelles along each wing leading edge, the nacelles running past the trailing edges. The undercarriage was wholly retractable to, again, maintain strong airflow about the aircraft. The configuration included two single-wheeled main legs and a single-wheeled tail leg. An internal bomb bay was situated at the center of the airframe while hardpoints inboard of each engine nacelle were considered. As defensive armament was intended to be largely remotely-controlled from within the fuselage, there was a dorsal and ventral turret as well as rear-facing guns at the aft section of each engine nacelle. A tail turret was imagined at the extreme rear of the airframe between the twin vertical fins to counter any pursuing threats. A chin-mounted turreted cannon was also optional and this woudl protect the vulnerable front from head-on attacks by the enemy. Armament would consist of a collection of 7.92mm MG 81 machine guns (2 x chin, 1 x each engine nacelle), 13mm MG 131 machine guns (2 x dorsal turret, 2 x ventral turret) and MG 151/20 cannons (1 x dorsal turret, 1 x ventral turret).

The Fw 191 airframe itself was a strong applicant for the Bomber B program exhibiting speed through its basic appearance. However, the required heavy use of electrics required equally heavy reliance on generators and motors. This not only added weight to the growing design but also made for a more complex engineering end-product. The design was eventually evolved through simplification processes that went on to include conventional manned gun positions (the nacelle guns were dropped altogether) and proven hydraulic and mechanical features began replacing the intended electronically-powered facilities. Despite a more lightened design, the aircraft still suffered from being underpowered - the Junkers Jumo 222 series engines not proving up to the task (the Daimler-Benz offering eventually went abandoned). These program limitations eventually netted just the three Fw 191 prototypes recognized simply as "V1", "V2" and "V6". Additional prototypes intended to solve several key issues were also envisioned though none of these came to pass. By this time in the war, the German situation had changed for the worse and commitments were given to other, more defensive-minded programs. With the end of the Bomber B program, the Fw 191 fell to the pages of military aviation obscurity - joining a plethora of other promising German designs of World War 2.

Performance estimates for the Fw 191 (prototype V6) included a top speed of 620 kmh with a range of 2,240 miles - both within the scope of the Bomber B requirements. The airframe would have featured a service ceiling of approximately 31,800 feet to which a pressurized cabin would have assisted the crew though a later project rewrite eventually dismissed the complicated pressurization equipment altogether. The Fw 191 was to field 9,240lbs of internal and external ordnance including conventional drop bombs and possibly torpedoes - the later for the maritime strike role over water.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Focke-Wulf - Nazi Germany
Manufacturer(s)
Nazi Germany
Operators National flag of modern Germany National flag of Nazi Germany
1942
Service Year
Nazi Germany
National Origin
3
Crew
3
Units


GROUND ATTACK
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
SPECIAL-MISSION: ANTI-SHIP
Equipped to search, track, and engage enemy surface elements through visual acquisition, radar support, and onboard weaponry.
X-PLANE
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


60.5 ft
(18.45 meters)
Length
82.0 ft
(25.00 meters)
Width/Span
15.7 ft
(4.80 meters)
Height
26,455 lb
(12,000 kilograms)
Empty Weight
42,990 lb
(19,500 kilograms)
Maximum Take-Off Weight
+16,535 lb
(+7,500 kg)
Weight Difference


2 x Junkers Jumo 222 liquid-cooled inline piston engines developing 2,000 horsepower each.
Propulsion
385 mph
(620 kph | 335 knots)
Max Speed
31,824 ft
(9,700 m | 6 miles)
Ceiling
2,237 miles
(3,600 km | 1,944 nm)
Range
1,200 ft/min
(366 m/min)
Rate-of-Climb


MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


STANDARD:
2 x 7.92mm MG 81 machine guns in chin turret
2 x 7.92mm MG 81 machine guns in remote-controlled rear nacelle turrets.
1 x 20mm MG 151/20 cannon and 2 x 13mm MG 131 machine guns in dorsal turret.
1 x 20mm MG 151/20 cannon and 2 x 13mm MG 131 machine guns in ventral turret.

OPTIONAL:
2 x torpedoes
Up to 9,240lbs of internal stores.


2
Hardpoints


Fw 191 - Base Series Designation
Fw 191 V1 - Initial prototype; BMW 801A engines of 1,540 horsepower.
Fw 191 V2 - Second prototype
Fw 191 V3 - Proposed prototype
Fw 191 V4 - Proposed prototype
Fw 191 V5 - Proposed prototype
Fw 191 V6 - Final revised prototype; Junkers Jumo 222 engines of 2,170 horsepower.
Fw 191 V7 - Abandoned prototype
Fw 191 V8 - Abandoned prototype
Fw 191 V9 - Abandoned prototype
Fw 191 V10 - Abandoned prototype
Fw 191 V11 - Abandoned prototype
Fw 191 V12 - Abandoned prototype
Fw 191 V13 - Proposed prototype with Daimler Benz DB 606/610 coupled engines.
Fw 191A - Proposed initial production designation
Fw 191B - Revised Fw 191 production designation


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for Special Forces
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Images



1 / 1

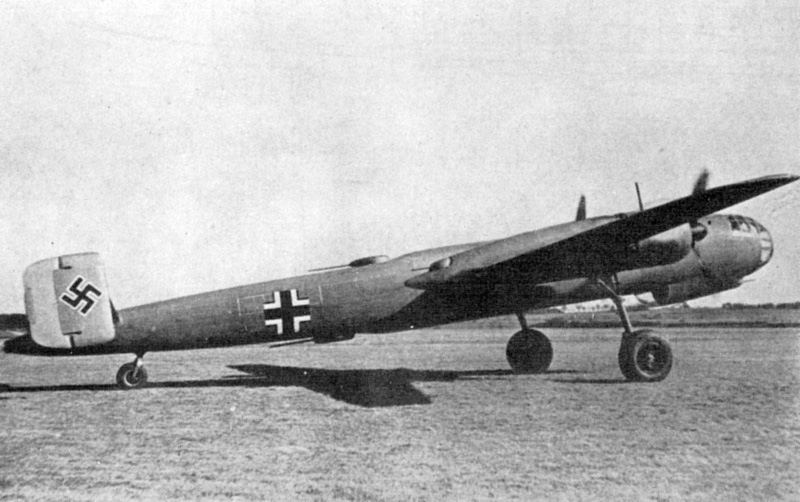

Image of the Focke-Wulf Fw 191
