AeroVironment RQ-14 Dragon Eye


Tactical Reconnaissance Unmanned Aerial Vehicle (UAV) [ 2002 ]



Tthe AeroVironment RQ-14 Dragon Eye serves the United States Marine Corps by providing a critical eye-in-the-sky function over the battlefield.



Authored By: Staff Writer | Last Edited: 02/25/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The American military involvement in Afghanistan and Iraq during the first decade of the present century allowed the Unmanned Aerial Vehicle (UAV) industry to flourish and this led to the introduction of many unmanned, remotely-piloted systems. The AeroVironment RQ-14 "Dragon Eye" was one product of the period, a compact, tactical reconnaissance-minded drone first flying in June of 2001. It was introduced a year later and has seen considerable service with the United States Marine Corps (USMC) as development was through the Naval Research Laboratory and the Marine Corps Warfighting Laboratory. Some 1,000 units were contracted for.

Outwardly, the Dragon Eye exhibits a conventional aircraft form with a centralized fuselage containing all pertinent mission equipment, a monoplane wing assembly, and vertical tail fin. The aircraft lacks horizontal tailplanes and an integrated undercarriage while its wing mainplanes are broad and straight in their design. The UAV's propulsion comes from a pair of two-bladed electric drive motors arranged ahead of the wing leading edges to either side of the fuselage. Dimensions of this aircraft include a wingspan of 3.75 feet and a length of 3 feet, allowing it to be relatively easily transported on the back of an infantryman. Its overall weight is a manageable six pounds.

The Dragon Eye system is hand-launched, not requiring any complex undercarriage-with-runway arrangement or catapulting system. Forward momentum is enhanced by use of a bungee-style flexible cord which helps to add initial velocity. Once in the air and under its own power, the UAV utilizes a operator-programmed, waypoint-based navigation system through an integrated Global Positioning System (GPS) and Inertial Navigation System (INS). The mission endurance window is approximately one hour. The UAV is tied to a Ground Control System (GCS) consisting of a heavy-duty laptop providing real-time color / high reolution InfraRed (IR) video imaging to the ground operator from the Dragon Eye unit. Transmission ranges (line-of-sight) reach out to 6 miles and the UAV holds an operational range out to 3 miles and a service ceiling up to 500 feet at speeds of up to 40 miles per hour. Recovery is simply by way of having the Dragon Eye unit land a relatively smooth surface - its frame is purposely designed to break apart and be put back together in short order. Should the unit suffer more catastrophic damage, its major components can easily by replaced from parts pulled from another Dragon Eye kit.

The Dragon Eye UAV continues to serve USMC units today (2015). Its transportability and ease-of-use with reliable function have made it an excellent addition to the Marine warfighter's growing high-tech arsenal. Additionally, its run-silent operation generally results in enemy forces unaware of its position overhead - a good alternative to the larger, higher-cost UAV systems currently available.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



AeroVironment, Incorporated / Naval Research Laboratory / Marine Corps Warfighting Laboratory - USA
Manufacturer(s)
United States
Operators National flag of the United States
2002
Service Year
United States
National Origin
Active
Project Status
0
(UNMANNED)
Crew
1,000
Units


SPECOPS
Serving Special Forces / Special Operations elements and missions.
UNMANNED
Aircraft inherently designed (or later developed) with an unmanned capability to cover a variety of over-battlefield roles.


3.0 ft
(0.90 meters)
Length
3.6 ft
(1.10 meters)
Width/Span
7 lb
(3 kilograms)
Empty Weight
7 lb
(3 kilograms)
Maximum Take-Off Weight
+0 lb
(+0 kg)
Weight Difference


1 x Single-use battery supplying power to 2 x Two-bladed electric motors.
Propulsion
22 mph
(35 kph | 19 knots)
Max Speed
499 ft
(152 m | 0 miles)
Ceiling
3 miles
(5 km | 3 nm)
Range


MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


None. Payload consisting of cameras for general reconnaissance work: Dual forward-and-side-looking electro-optical camera, side-looking low light camera, and side-Looking IR camera.


RQ-14 "Dragon Eye" - Base Series Designation


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for Special Forces
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Images



1 / 8

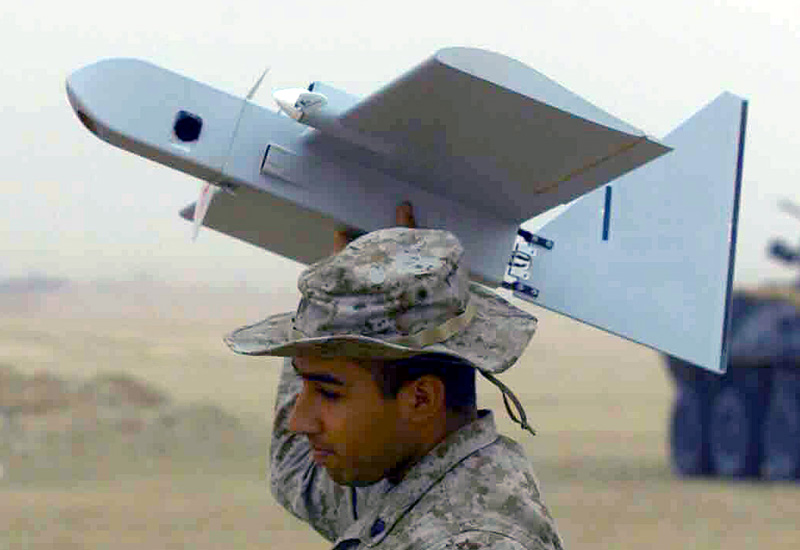

Image of the AeroVironment RQ-14 Dragon Eye
