Vought F4U Corsair


Carrier-Based Fighter / Fighter-Bomber / Night Fighter [ 1942 ]



The fast and powerful Vought F4U Corsair fighter was the first Allied aircraft capable of going toe-to-toe with the fabled Japanese Zero - it fought into the Korean War years and beyond.



Authored By: Staff Writer | Last Edited: 06/11/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
One of the greatest fighter aircraft of all time, the American Vought F4U "Corsair" became the stuff of legend for its part in the air wars of World War 2 (1939-1945), the Korean War (1950-1953) and several Cold War conflicts that followed. The design was attributed to Igor Sikorsky and Rex Beisel and went on to see production totals reach over 12,500 units with manufacturing ending in 1952 - an impressive total for an aircraft initially rejected by the United States Navy (USN).

The F4U originally appeared as a USN carrier-based fighter design until difficulties in landing the aircraft on a moving carrier led to its expanded use as a land-based fighter in the hands of US Marine aviators. While the United States Navy moved on to the equally-excellent Grumman F6F "Hellcat", the F4U continued to make a name for itself in the Pacific Theater - even earning the respect of its Japanese foes as one of the most feared combat aircraft in the region.

The Corsair was born from a 1938 USN requirement calling for a new high-performance carrier-based fighter and Chance Vought of United Aircraft answered the call with their Model V-166. Vought engineers gave their compact design the largest possible engine - the experimental Pratt & Whitney XR-2800 "Double Wasp" of 2,000 horsepower output. To this was added a massive three-bladed propeller unit. The inverted "gull wing" mainplane arrangement was chosen to keep the spinning propeller blades from hitting the ground and this forced full-length main landing gear legs to be used.

The engine was fitted at the front of the airframe in the traditional way with the single-seat cockpit located just aft. The wing mainplanes were seated ahead of midships while the fuselage was well-streamlined and tapered to the rear. The empennage consisted of a single, short (curved) vertical tail fin with low-set horizontal planes. The undercarriage was of the traditional "tail dragger" arrangement and wholly-retractable. Original armament included 4 x 0.50 Browning heavy machine guns. Despite the inherent strong points in the F4U design, the aircraft held an obstructed forward view (due to the wing's location and long nose) and reduced rearward vision for the pilot due to the raised fuselage spine. Pilots also noted difficulties in cockpit access because of the unique wing bend.

Vought produced two prototype aircraft - V-166A and V-166B - to which V-166A received the Pratt & Whitney R1830 "Twin Wasp" engine while V-166B was given the Pratt & Whitney R2800-2 "Double Wasp". The USN favored the B-model prototype and placed its contract within months of Vought's submission. In development, the aircraft would be known under the designation of "XF4U-1".

When first tested in 1940, V-166B exceeded 400 miles per hour (403mph) and became the first American fighter to reach such speeds. First-flight was recorded May 29th, 1940 (as the XF4U-1) and changes were soon ordered. A revised armament scheme forced a relocation of wing fuel tanks to the fuselage and this, in turn, set back the cockpit a further three feet from the nose which generated all sorts of challenges for a pilot. In 1941, Vought was given a serial production contract for 584 examples of their new aircraft (F4U-1) by the USN. However, the initial production-quality airframe did not go airborne until June 25th, 1942. Carrier trials began in September of that year and the aircraft was officially introduced into service on December 28th - a critical junction in the Allied push to victory.

The inherent dangers of landing such a high-performance aircraft on a moving carrier deck prompted the Navy to delay shipboard use of the F4U for the time being. Instead, the aircraft began operations as a land-based fighter with US Marine air group VMF-124 during February 1943 over Bougainville. In practice, the F4U made short work of the once-unbeatable Mitsubishi A6M "Zero" fighters - the pride of the Imperial Japanese Navy air service - as Zeros proved themselves poorly-protected, lacking suitable armor protection and self-sealing fuel tanks. Additionally, American fighter aircraft were much improved over the pre-war models available in the initial Japanese assaults throughout the Pacific. Improved training and a better stock of seasoned pilots coupled to a fast and powerful fighter eventually helped to turn the tide of the Pacific War over time. Indeed, the F4U proved itself the first Allied fighter to be able to counter the threat of the A6M Zero in the war - she could out-turn and out-dive most any enemy in the Pacific Theater.

In the following months, the US Marines took on even greater stocks of the new aircraft, such was the services impression of the mount. Its versatility allowed it to be utilized to great effect as a ground attacker when outfitted with 8 x 5" aerial rockets or up to 4,000lb of conventional drop stores. Jettisonable fuel tanks helped to increased overall combat ranges and bring the fight to the enemy wherever they would be found. Japanese Army forces grew so accustomed to Corsair strikes, and their accompanying dive sound, that they nicknamed the American aircraft "Whistling Death" (this sound was attributed to the rush of air at the cooler vents when the Corsair was in a high-speed diving action).

Corsair pilots managed over 500 air kills by the end of 1943 and totaled some 2,140 enemy aircraft by the end of the war in August of 1945.The highest scoring ace of the U.S. Marine Corps became Major Gregory "Pappy" Boyington who managed 28 total enemy kills. All of these totals were made possible, in part, by the 64,000 sorties recorded by F4U airmen in the whole of the war. Allied pilots eventually earned an astounding kill ratio of 11:1 against their Japanese foes.©MilitaryFactory.com
Advertisements
The US Navy began trialing their Corsairs through squadron VF-12 in October 1942. VF-17 was stocked with the new fighters in April of 1943 and early USN use saw Corsairs operating from land bases as well until its carrier training and operation kinks were worked out. Indeed the aircraft was given such nicknames as "Ensign Eliminator" and "Ensign Killer" for its tricky handling when on deck though, otherwise, it remained a powerful, fast and highly-valued fighter. Such was the value of the aircraft that the U.S. Navy did not give up the F4U in a frontline service role until December of 1954 - after the Korean War.

While the US Marines enjoyed successes with their Corsairs from land bases, the British Fleet Air Arm (FAA) fielded the mount in its initially-intended role of carrier-based fighter. To fit aboard the space-strapped British carriers, the Corsair received wings that were some eight inches shorter than their American counterparts. British naval Corsair Mk IIs of No. 1834 Squadron were used in the April 3rd, 1944 attack on the German battleship KMS Tirpitz and, from then on, British airmen grew equally fond of their Corsairs.

The history of the Corsair did not end with the final days of World War 2 for the type was pressed into service as a close-support platform during the upcoming Korean War (1950-1953). F4Us excelled in the role despite the arrival of jet-powered aircraft for they could loiter longer and fly lower under greater control than their fast-flying, fuel-thirsty jet-powered brethren. These Corsairs attacked with machine guns and cannons as well as rockets and conventional drop bombs. Amazingly, F4U Corsairs accounted for some 80% of all US Marine and Navy ground strike missions during 1950 alone. It was not wholly uncommon for the propeller-driven Corsairs to also successfully counter the new jet-powered Mikoyan-Gurevich MiG-15 "Fagot" fighters emerging from the Soviet Union and fighting for North Korea. To the Corsair line was also added specialized night-fighter variants which increased the service lives of the family line considerably.

During the First Indochina War (1946-1954), French aviators relied on their F4Us against Viet Minh forces from the span of 1952 to 1954. These were operated from land-based units and provided all manner of Close-Air Support (CAS) for fighting French forces on the ground. Additional service saw Corsairs in action during the Suez Crisis (1956) in the Middle East, in the Algerian War (1954-1962) and over Tunisia (1961).

Beyond production by Vought - whose lines struggled with the massive American military requirement during World War 2 - the F4U was produced by both Brewster (F3A-1) and Goodyear (FG-1). Marks began with the original F4U-1 (known as "Corsair Mk I" in the Fleet Air Arm) and these were followed by the late first-batch F4U-1A (Corsair Mk II) and 700 Brewster-built F3A-1 (Corsair Mk III). Fighter-bomber forms then emerged as the F4U-1C (4 x 20mm cannon armament) and F4U-1D (P&W R2800-8W water-injected engine) which carried 2 x 1,000lb bombs or 8 x 5" rockets. The F4U-1P was a photo-reconnaissance mount. An experimental night fighter version became the X4FU-2. Another night fighter form was the F4U-2 based on the F4U-1. The final World War 2 Corsair model became the F4U-4 which appeared in late 1944. XF4U-2 was a late-war night fighter which served through VFN-75 and VFN-101.

The F4U-4C were 300 Corsairs outfitted with 4 x 20mm M2 cannons instead of the original 6 x machine gun armament. Additional night fighters emerged as the F4U-4E and F4U-4N. The F4U-4P was another photo-reconnaissance mount. Appearing in 1945 was the F4U-5 which arrived late in the year and thusly missed out on actions in World War 2 altogether. The P&W R-2800-32(E) engine outputted at 2,850 horsepower.

The F4U-N was outfitted with radar and saw production reach 214 units. The F4U-5NL was developed as an arctic warfare variant evolved from the F4U-5N. The F4U-5P was an extended range photo-reconnaissance mount. The F4U-6 was a dedicated USMC ground attack variant which was eventually redesignated under the AU-1 marker. The F4U-7 was a French Navy-inspired development. The F4U-K and FG-1K both served as drones.

Special interceptor versions, particularly to deal with the rising threat of Imperial Japanese Navy kamikaze suicide strikes, became the Goodyear F2G-1 and F2G-2 (detailed elsewhere on this site). These were fielded with the P&W R-4360 "Wasp Major" 28-cylinder engine of 3,000 horsepower, nearly fifty percent greater power than the original Corsair product. Slight changes differentiated the two marks though neither ever saw combat in World War 2 with only ten examples emerging from testing and the war ending.

Beyond the United States, United Kingdom and France, the Corsair was in play with the Argentine Navy, the El Salvadorian Air Force, the Honduran Air Force and the New Zealand Air Force. The last known flying, military-grade F4U was retired in 1979 with Honduras while New Zealand fielded the F4U across thirteen total squadrons from 1944 to 1949.

In popular culture, the Corsair served as the subject of the late-1970s television series "Black Sheep Squadron" (originally known as "Baa Baa Black Sheep"). The show chronicled the experiences of "Pappy" Boyington (played by Robert Conrad) during his Pacific Theater career.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1942

Origin
United States national flag graphic
United States

Status
RETIRED
Not in Service.
Crew
1

Production
12,571
UNITS


Chance Vought / Goodyear / Brewster Aeronautical Corporation - USA
(View other Aviaton-Related Manufacturers)
National flag of Argentina National flag of France National flag of New Zealand National flag of the United Kingdom National flag of the United States Argentina; El Salvador; Honduras; France; New Zealand; United Kingdom; United States
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
Interception
Ability to intercept inbound aerial threats by way of high-performance, typically speed and rate-of-climb.
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Maritime / Navy
Land-based or shipborne capability for operating over-water in various maritime-related roles while supported by allied naval surface elements.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.


Length
33.6 ft
(10.25 m)
Width/Span
41.0 ft
(12.50 m)
Height
14.8 ft
(4.50 m)
Empty Wgt
9,204 lb
(4,175 kg)
MTOW
13,999 lb
(6,350 kg)
Wgt Diff
+4,795 lb
(+2,175 kg)
(Showcased structural values pertain to the Vought F4U-4 Corsair production variant)
monoplane / low-mounted / straight, gull
Monoplane
Design utilizes a single primary wing mainplane; this represent the most popular mainplane arrangement.
Low-Mounted
Mainplanes are low-mounted along the sides of the fuselage.
Straight
The planform involves use of basic, straight mainplane members.
Straight, Gull
The planform relies on straight mainplane members which feature dihedral (upward angle) at the wing roots while the remainder of the length is generally level.
(Structural descriptors pertain to the Vought F4U-4 Corsair production variant)
Installed: 1 x Pratt & Whitney R-2800-18W 18-cylinder "Double Wasp" two-row, air-cooled, radial piston engine developing 2,325 horsepower driving a four-bladed propeller unit at the nose.
Max Speed
446 mph
(718 kph | 388 kts)
Ceiling
41,339 ft
(12,600 m | 8 mi)
Range
1,005 mi
(1,617 km | 2,995 nm)
Rate-of-Climb
4,360 ft/min
(1,329 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Vought F4U-4 Corsair production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
6 x 12.7mm M2 Browning heavy machine guns (three to a wing).

ALTERNATIVE:
4 x 20mm M2 automatic cannons (F4U-1C).

OPTIONAL:
Mission-specific armament (up to a maximum of 4,000lb) to include aerial rockets and conventional drop bombs.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun
Graphical image of an aircraft automatic cannon
Graphical image of aircraft aerial rockets
Graphical image of an aircraft conventional drop bomb munition


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 5
Mounting Points




-
-
-
7
-
3
1
2
-
6
-
-
-
HARDPOINT(S) KEY:
X

15
13
11
9
7
5
3
1
2
4
6
8
10
12
14


COLOR KEY:
Fuselage Centerline
Fuselage Port/Wingroot
Fuselage Starboard/Wingroot
Wing/Underwing
Wingtip Mount(s)
Internal Bay(s)
Not Used

Note: Diagram above does not take into account inline hardpoints (mounting positions seated one-behind-the-other).


V-166A - Prototype Model Designation; fitted with Pratt & Whitney 2,000hp XR-2800 Double Wasp radial engine.
V-166B - Second Prototype Development Model
XF4U-1 Designation of the V.166B prototype model for US Navy consideration.
F4U-1 - Production Model designation initially provided to Britain's Fleet Arm Arm (FAA); 758 aircraft constructed.
F4U-1A - Frameless canopy version of which 2,066 produced.
F4U-1C - Fitted with 4 x 20mm cannons in place of the 6 x 12.7mm machine guns; 200 produced.
F4U-1D - Fighter-Bomber Variant of which 1,375 were produced.
F4U-1P - Photographic Reconnaissance Conversion Model based on the F4U-1 model.
F4U-4 - Fitted with R-2800-18W(C) 2,450hp engine of which 2,351 were produced of this model.
F25 - Goodyear-produced conversion model of the F4U-4 base model.
F4U-5 - Model of 1945; all-metal wings; PW R2800-32(E) engine of 2,760 horsepower; cowl flaps; automatic blowers; revised cockpit instrumentation; retractable tail wheel; improved forward visibility (cowling lowered 2inches).
F4U-5N - Radar-equipped version; 214 examples produced.
F4U-5NL - "Winterized" Corsair with deicing features; 29 examples from F4U-5N stock; 72 total examples delivered.
F4U-5P - Long-range photographic-reconnaissance model; 30 examples delivered.
F4U-6 - AU-1 redesignated; USMC ground-attack form
F4U-7 - AU-1 for French Navy service
AU-1 - USMC attack model; additional armoring; relocated oil cooler systems; revised supercharger; additional armament racks installed.
F2G-1 ("FG-1") - Goodyear-produced variant of which 1,704 were constructed; fitted with PW R-4360 "Wasp Major" 28-cylinder engine; teardrop-style canopy; manually-folding wings.
F2G-1D - Goodyear-produced variant
F2G-1E - Goodyear-produced Nightfighter variant
F2G-2 "Super Corsair" - Goodyear-produced variant; assisted folding wings; 10 examples completed before project abandoned.
F3A-1 - Brewster-produced sub-variant
F3A-1D - Brewster-produced sub-variant


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
96
Rating is out of a possible 100 points.
Firepower Index (BETA)


Inherent combat value taking into account weapons support / versatility, available hardpoints, and total carrying capability.
12.7
View the List
Relative Maximum Speed
Hi: 500mph
Lo: 250mph
This entry's maximum listed speed (446mph).

Graph average of 375 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Vought F4U-4 Corsair operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The three qualities reflected above are altitude, speed, and range.
Aviation Era Span
Pie graph section
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (12,571)
12571
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 15

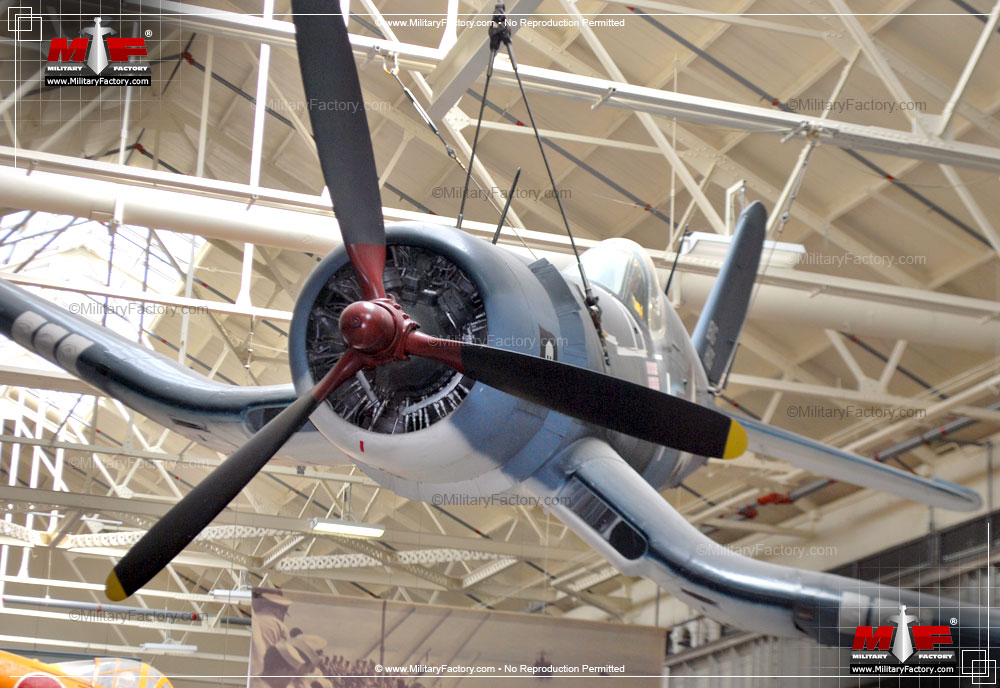

Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
2 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
3 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
4 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
5 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
6 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
7 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
8 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
9 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
10 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
11 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
12 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
13 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
14 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
15 / 15
Image of the Vought F4U Corsair
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.

Similar Aircraft



Aviation developments of similar form and function, or related to, the Vought F4U Corsair...


Advertisements




Disclaimer | Privacy Policy | Cookies


2023 Military Pay Chart Military Ranks DoD Dictionary Conversion Calculators Military Alphabet Code Military Map Symbols

The "Military Factory" name and MilitaryFactory.com logo are registered ® U.S. trademarks protected by all applicable domestic and international intellectual property laws. All written content, illustrations, and photography are unique to this website (unless where indicated) and not for reuse/reproduction in any form. Material presented throughout this website is for historical and entertainment value only and should not to be construed as usable for hardware restoration, maintenance, or general operation. We do not sell any of the items showcased on this site. Please direct all other inquiries to militaryfactory AT gmail.com.

Part of a network of sites that includes GlobalFirepower, a data-driven property used in ranking the top military powers of the world, WDMMA.org (World Directory of Modern Military Aircraft), WDMMW.org (World Directory of Modern Military Warships), SR71blackbird.org, detailing the history of the world's most iconic spyplane, and MilitaryRibbons.info, cataloguing military medals and ribbons.

View day-by-day actions of the American Civil War with CivilWarTimeline.net. View day-by-day actions of World War II with SecondWorldWarHistory.com.


©2023 www.MilitaryFactory.com • All Rights Reserved • Content ©2003-2023 (20yrs)
