Antonov An-2 (Colt)


Single-Engine Biplane Utility Aircraft [ 1947 ]



The Antonov An-2 Colt biplane was developed to replace the Polikarpov Po-2 in the utility and agricultural roles.



Authored By: Staff Writer | Last Edited: 10/05/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

National flag graphic Image from the United States Department of Defense DVIDS imagery database.
GO TO SPECIFICATIONS [+]
Advertisements
The Antonov An-2 is a multi-role light utility biplane initially produced under the Soviet flag. Despite its 1940's pedigree, the system has continued service and operations throughout the world and production itself has totaled over 18,000 examples as of this writing. The An-2 goes under the NATO codename of "Colt" and is designated in US DoD nomenclature as the "Type 22". The Soviet Union/Russia, Poland and China have all lent a hand in production of local base and specialized variants. Operators are numerous and range from those with military service to those with civilian-minded needs.

Antonov An-2 Walk-Around

Externally, the An-2 shares many similarities with other light aircraft of this class. The engine - powering a four-bladed propeller - is held in the extreme forward of the fuselage to which the cockpit is situated directly aft. The cockpit is heavily glazed and observation port windows can be seen along the fuselage sides. The wing arrangement on this aircraft is of a sesquiplane (uneven span) biplane assembly with the top wing noticeably wider than the lower element. Each wing is connected via a single large vertical strut making up a single wing bay and each wing system showcases dihedral (upward angle). The fuselage tapers slightly into the empennage to which is affixed a single large, smooth-edge vertical tail fin and its applicable stabilizers mounted to either tail fin side. Like other aircraft of this classification, the An-2 sports a pair of fixed landing gear legs complimented by a smaller tail wheel. The main landing gear legs feature wheel bogies decidedly angled inwards with each leg braced at two points along the underside of the fuselage. Power is supplied from a single Shvetsov ASh-62IR 9-cylinder, supercharged radial piston engine of 1,000 horsepower. Maximum speed is a reported 160 miles per hour with a listed range of 525 miles and a service ceiling equal to 14,750 feet.

Accommodations are generally made for a crew of one pilot but an observer/co-pilot is preferred. Cabin seating can hold an additional 12 passengers.©MilitaryFactory.com
Advertisements
Soviet / Russian Production

Beyond the typical prototype and evaluation models, the Soviet Union/Russia has produced the majority of the existing An-2 variants while Poland contributed as well. Produced types ranged from basic observation and reconnaissance aircraft to specialized floatplanes, artillery observation, mail carrier, cargo transport, VTOL-minded projects, survey and photographic platforms, fire bombers and firefighters, research and VIP transports. Agricultural versions have seen extended use in for both Poland and China.

Chinese Production

China has produced many versions of the An-2 beginning with the Fong Shou-2 ("Harvester-2"). This was the first An-2 built to agricultural specifications. The Nanchang Y-5 is a transport version since taken over in production by Harbin with 727 examples delivered. Nanchang Y-5II was an agricultural form seeing production number 229. Shijiazhuang Y-5A was a light passenger model based on the An-2T and produced in 114 examples. The agricultural derivative became the Shijiazhuang Y-5B based on the An-2 SKh. The PLAAF makes use of the Shijiazhuang Y-5B(T) para-drop model. The Nanchang Y-5C is an amphibious version of the Y-5A while the Nanchang Y-5D is a bomber crew trainer. The Nanchang Y-5K became a VIP passenger transport seating five.

Antonov An-2 Operators

Notable operators of the An-2 include (or have included) Afghanistan, China, Cuba, East Germany (and Germany proper), Egypt, Georgia, Hungary, Iraq, Laos, Lithuania, Macedonia, North Yemen, North Korea, Poland, South Korea, Romania, Russia, Serbia, Somalia, Sudan, Syria, Turkey, Ukraine, Vietnam, Yemen and Yugoslavia.

Combat History

Despite its fragile appearance, the Antonov An-2 has seen its fair share of combat action. It was debuted in such a manner during the Korean War (1950-1953) and later in the Vietnam War - the latter by the North Vietnamese. Some An-2's were converted from their traditional crop dusting roles to become make-shift bombers in the Croatian War of Independence (1991).

Azerbaijan utilized a locally-modified form of the Soviet-era Antonov An-2 as an Unmanned Aerial Vehicle (UAV) in the kamikaze role. About sixty are in service (2020).©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

July 2017 - A Fully-composite reworking of the classic An-2 biplane aircraft was debuted at MAKS 2017. The aircraft is designated as An-2TVS-2DTS. The aircraft recorded a first-flight in July 2017 and is powered by 1 x Honeywell TPE331-12 turboprop engine.

Advertisements

Specifications



Service Year
1947

Origin
Soviet Union national flag graphic
Soviet Union

Status
ACTIVE
In Active Service.
Crew
2

Production
18,000
UNITS


Antonov - Soviet Union / WSK PZL-Mielec - Poland / Shijiazhuang - China
(View other Aviaton-Related Manufacturers)
National flag of Afghanistan National flag of Albania National flag of Angola National flag of Azerbaijan National flag of Belarus National flag of Bulgaria National flag of China National flag of Croatia National flag of Cuba National flag of Czechia National flag of Egypt National flag of Georgia National flag of modern Germany National flag of East Germany National flag of Hungary National flag of Iraq National flag of Kyrgyzstan National flag of Lithuania National flag of Macedonia National flag of Nicaragua National flag of North Korea National flag of Poland National flag of Romania National flag of Russia National flag of Serbia National flag of South Korea National flag of the Soviet Union National flag of Sudan National flag of Somalia National flag of Syria National flag of Tajikistan National flag of Tanzania National flag of Turkey National flag of Turkmenistan National flag of Tunisia National flag of Ukraine National flag of Uzbekistan National flag of Vietnam National flag of Yemen National flag of Yugoslavia Afghanistan; Albania; Angola; Azerbaijan; Belarus; Bulgaria; Cambodia; China; Croatia; Cuba; Czechoslovakia; East Germany; Egypt; Estonia; Georgia; Germany; Hungary; Iraq; Kyrgyzstan; Laos; Latvia; Lithuania; Macedonia; Mali; Moldova; Mongolia; Nicaragua; North Yemen; North Korea; North Vietnam; Poland; South Korea; Romania; Russia; Serbia; Somalia; Soviet Union; Sudan; Syria; Tajikistan; Tanzania; Tunisia; Turkey; Turkmenistan; Ukraine; Uzbekistan; Vietnam; Yemen; Yugoslavia
(OPERATORS list includes past, present, and future operators when applicable)
✓ Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
✓ Maritime / Navy
Land-based or shipborne capability for operating over-water in various maritime-related roles while supported by allied naval surface elements.
✓ Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.
✓ Commercial Aviation
Used in roles serving the commercial aviation market, ferrying both passengers and goods over range.
✓ VIP Service
Used in the Very-Important-Person (VIP) passenger transport role, typically with above-average amenities and luxuries as standard.
✓ Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.
✓ Training (General)
Developed ability to be used as a dedicated trainer for student pilots (typically under the supervision of an instructor).


Length
40.7 ft
(12.40 m)
Width/Span
59.7 ft
(18.20 m)
Height
13.5 ft
(4.10 m)
Empty Wgt
7,275 lb
(3,300 kg)
MTOW
12,125 lb
(5,500 kg)
Wgt Diff
+4,850 lb
(+2,200 kg)
(Showcased structural values pertain to the base Antonov An-2 (Colt) production variant)
Installed: 1 x Shvetsov ASh-62IR 9-cylinder supercharged radial piston engine developing 1,000 horsepower.
Max Speed
160 mph
(258 kph | 139 kts)
Ceiling
14,764 ft
(4,500 m | 3 mi)
Range
525 mi
(845 km | 1,565 nm)
Rate-of-Climb
700 ft/min
(213 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
♦
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Antonov An-2 (Colt) production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
Typically none. Some may be fitted with defensive machine guns. Crews may carry individual weapons while other An-2s modified for dropping bombs as needed.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft conventional drop bomb munition


(Not all ordnance types may be represented in the showcase above)
SKh-1 - Initial Series Designation
An-2F - Experimental Artillery Observation Platform; revised empennage with twin vertical fins; dorsal machine gun.
An-2L - Fire-Fighter Variant
An-2LV - Fire-Fighter Variant
An-2M - Agricultural Variant
An-2P (modifizirovannij) - Passenger Transport
An-2P (passazhirskij) - Fire-Fighter Variant
An-2S - Air Ambulance Variant
An-2V (An-4) - Floatplane Variant
An-2VA - Fire-Fighter Variant
An-2ZA - Atmospheric Research Platform
An-2E - Ekranoplan Conversion Model
An-3 - Sub-Variant of the An-2; fitted with turboprop; revised throughout.
An-6 "Meteo" - High-Altitude Weather Research Platform; based on the An-2 production model.
An-2 Geofiz (An-2Geo) - Polish Geophysical Variant.
An-2D5 - Polish VIP Transport; seating for 5.
An-2D6 - Polish VIP Transport; seating for 6.
An-2T - Polish An-2 Production Model (initial version).
An-2M (An-2W) - Polish An-2V floatplane.
An-2P - Polish passenger transport; seating for 12 passengers.
An-2P Photo - Polish Photo Reconnaissance Platform.
An-2PK - Polish VIP Transport; seating for 5; cold weather modifications.
An-2PF - Polish Photo Reconnaissance Platform.
An-2PR (An-2PRTV) - Polish Television Relay Variant.
An-2R - Polish Agricultural Variant
An-2S - Polish Air Ambulance; seating for 6 passengers.
An-2TD - Polish Paratrooper Variant; seating for 12 passengers.
An-2TP - Polish Passenger / Cargo Transport; based on the An-2TD.
An-2TPS - Polish Air Ambulance based on the An-2TP.
An-2TVS-2MS - Metal-based construction; debuting in 2011; 25 examples completed.
An-2TVS-2DTS - All-composite reworking of the An-2TVS-2MS variant; debuted at MAKS 2017.
An-3M - Polish Prototype; turboprop powered; fitted with TWD-20 engine.
Lala-1 - Polish Experimental Variant; fitted with turbofan in empennage.
Y-5 - Chinese designation of An-2 production model.
Y-5A - Chinese designation of large-scale production An-2 for passenger duty.
Y-5B - Chinese Designation for improved An-2; new powerplant; revised avionics suite.
Y-5C - Floatplane Amphibious Variant; based on the Y-5A production model.
Y-5D - Bomber Crew Trainer Variant


Cockpit image of the Antonov An-2 (Colt)
Cockpit image represents the Antonov AN-2 Colt (public domain image) production model.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 7
Image of the Antonov An-2 (Colt)
Image from the United States Department of Defense DVIDS imagery database.
2 / 7
Image of the Antonov An-2 (Colt)

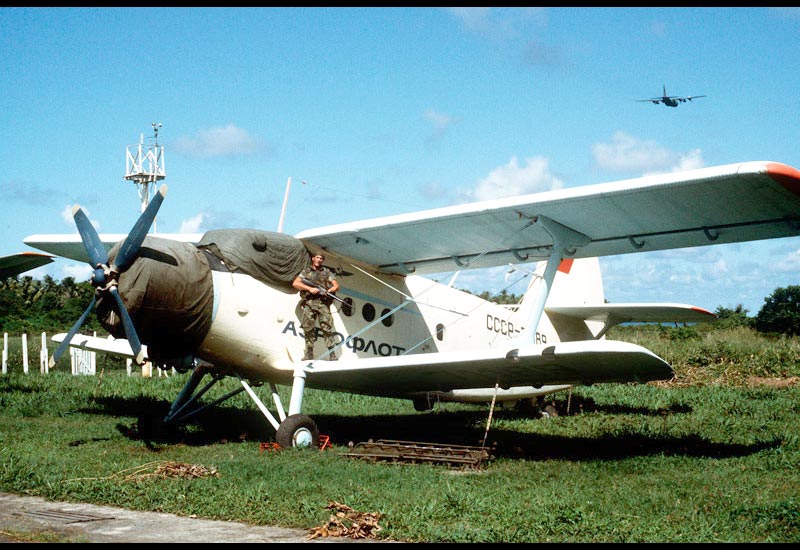

Front left side view of the Antonov An-2 Colt at rest; note armed Russian soldier; color
3 / 7
Image of the Antonov An-2 (Colt)
Close-up detail view of the forward fuselage of an Antonov An-2 Colt biplane; color
4 / 7
Image of the Antonov An-2 (Colt)
Front view of an Antonov An-2 Colt biplane at rest; color
5 / 7
Image of the Antonov An-2 (Colt)
Front left side view of an Antonov An-2 Colt biplane at rest; color
6 / 7
Image of the Antonov An-2 (Colt)
Close-up view of an Antonov An-2 Colt biplane at rest; note open cabin door at right
7 / 7
Image of the Antonov An-2 (Colt)
Front view of the Antonov An-2 Colt biplane; note size as compared to vehicle
