Novi Avion


Multirole 4th Generation Aircraft Proposal [ 1992 ]



The Novi Avion was a planned multi-role platform set to form the backbone of indigenous military aircraft design in Yugoslavia.



Authored By: Staff Writer | Last Edited: 06/17/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Novi Avion ("New Aircraft") was a Yugoslavian effort to produce a home-grown supersonic multi-role aircraft on par with the global 4th Generation fighters of the time. It shared many similarities with the French-based Dassault Rafale and may have proven itself a capable performer. The Novi Avion was intended to replace the aging fleet of Mikoyan-Gurevich MiG-21 "Fishbed" and SOKO J-21 "Jastreb" aircraft. Unfortunately for the project, the aircraft was cancelled in whole in 1991 when Yugoslavia ceased to be a nation, about one year before the Avion was scheduled to make its maiden flight.

The Avion began life in the 1980s as Yugoslavia was looking to become more independent in terms of its military equipment procurement. Strides were made along other fronts for both the army and the navy and the one major component that the nation lacked was in the availability of an indigenous fighter design. Work on such a project took place at Vazduhoplovno Tehnicki Institut (VTI) in Belgrade.

Avionics centered around a digital flight control system, fire-control radar and a navigation-attack system tied to multi-function displays in the "all-glass" cockpit. Externally, the Avion mimicked the Dassault Rafale to an extent. The cockpit was held forward in the fuselage, aft of a sharply-pointed nose cone containing the radar. The large-area delta wings took on high sweep and a bulk of the underwing stores. Canards were set forward just above the intake openings. Intakes to feed the single engine were split along either side of the lower fuselage, the openings placed just aft of the cockpit. The tail was adorned with a single vertical tail fin. The fuselage was capped by a single exhaust nozzle. The cockpit provided the pilot with good all-around visibility. Construction of the airframe was mostly of composites. In all, the Novi Avion was a sleek design worthy of a 4th Generation jet fighter.

From its single French-based SNECMA M88 turbofan, it was projected that the Avion could reach speeds of up to Mach 1.88 and 1,243 miles per hour. Range would have been 2,339 miles with a service ceiling of 55,775 feet at a 16,500 meters per minute rate-of-climb. The selection of the M88 is of particular note for it is the same powerplant used in the Dassault Rafale.

Armament was to have centered around the Avion's 11 hardpoints (including two wingtip positions) and would run the bevy of standard air-to-air missiles, air-to-surface missiles, laser-guided bombs, conventional bombs and rocket pods - these most likely of French origin. Standard armament was a single 30mm internal cannon.

Sortie-wise, it was envisioned that the Avion would have tackled a myriad of combat roles in its multi-role category including anti-ship and ground attack. Its primary service would have been in the interception and air superiority roles.

Everything for the Avion - and Yugoslavia - changed in 1991 however. Internal warfare and political upheaval all contributed to the demise of the nation and the project in tow. War ensued and ended up in the division of Yugoslavia into the countries of Bosnia and Herzegovina, Croatia, Montenegro, Macedonia, Serbia (Kosovo now partially independent) and Slovenia. Needless to say, the legacy of the Novi Avion died with Yugoslavia leaving the possibilities of this home-grown fighter system to the imagination.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1992

Origin
Yugoslavia national flag graphic
Yugoslavia

Status
CANCELLED
Development Ended.
Crew
1

Production
0
UNITS


Vazduhoplovno Tehnicki Institut (VTI) - Yugoslavia
(View other Aviaton-Related Manufacturers)
National flag of Yugoslavia Yugoslavia (cancelled)
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
Interception
Ability to intercept inbound aerial threats by way of high-performance, typically speed and rate-of-climb.
Special-Mission: Anti-Ship
Equipped to search, track, and engage enemy surface elements through visual acquisition, radar support, and onboard weaponry.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.


Length
45.1 ft
(13.75 m)
Width/Span
26.2 ft
(8.00 m)
Height
16.0 ft
(4.87 m)
Empty Wgt
13,772 lb
(6,247 kg)
MTOW
29,542 lb
(13,400 kg)
Wgt Diff
+15,770 lb
(+7,153 kg)
(Showcased structural values pertain to the base Novi Avion production variant)
Installed: 1 x SNECMA M88 afterburning turbofan engine developing up to 17,000 lb.
Max Speed
1,243 mph
(2,000 kph | 1,080 kts)
Ceiling
55,774 ft
(17,000 m | 11 mi)
Range
2,339 mi
(3,765 km | 6,973 nm)
Rate-of-Climb
54,133 ft/min
(16,500 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Novi Avion production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
1 x 30mm internal automatic cannon.

OPTIONAL:
Air-to-Surface Missiles.
Anti-Ship Missiles.
Rocket Pods.
Laser-Guided Bombs.
Conventional Drop Bombs.
Reconnaissance Pods.
Jammer Pods.


Supported Types


Graphical image of an aircraft automatic cannon
Graphical image of an aircraft air-to-surface missile
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod
Graphical image of an aircraft conventional drop bomb munition
Graphical image of an aircraft guided bomb munition
Graphical image of an aircraft anti-ship missile


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 11 (including wingtips)


Novi Avion - Developmental Series Designation (not official military designation); fitting French-made SNECMA M88 series turbofan with afterburner; 1 x 30mm cannon; production of prototype halted in 1991 with project cancellation.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 3

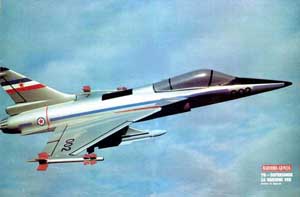

Image of the Novi Avion
