Arado Ar E.500


Twin-Engine Heavy Fighter Aircraft Proposal [ 1936 ]



A full-size mock-up of the E.500 twin-engined heavy fighter was created before development stopped on the project altogether.



Authored By: Staff Writer | Last Edited: 03/15/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The E.500 was a proposed heavy fighter design put forth by Arado Flugzeugwerke of Germany. The system was designed as early as 1936 and featured a crew of four consisting of a pilot, co-pilot, dorsal turret gunner and ventral gun station gunner. The project advanced beyond the design stage as a full scale mock-up was created before the project's eventual cancellation.

Design-wise, the E.500 was to be built around a twin-boom philosophy. The wings were high-mounted, running through each engine nacelle and spanning across the top of the gondola-style fuselage. The pilot and co-pilot were afforded good views outside their aircraft - particularly to the front, above and left and right sides thanks to the position of the cockpit at the extreme forward of the fuselage. The dorsal gunner sat in a seat directly behind the cockpit cabin and controlled a pair of 20mm Rh LB 202 series cannons. His vision was adequate as well. The fourth crewmember would have managed a ventral gun position in the lower part of the gondola. This gunner would lay in the prone position and utilize a periscope for aiming and firing.

Engines were intended to be fitted in the forward portion of the booms. The nacelles would run right into the booms which extended to the extreme aft of the aircraft. The tail booms were not joined but instead given independent elevators and vertical tail surfaces. The engines were envisioned as a pair of Daimler-Benz DB 603 series engines.

In any case, the design was quite ambitious by 1930's standards. It remains to be seen whether this system would have performed well in the intended role of heavy fighter though this author maintains his doubts. With four crew members, heavy armament, an oversized fuselage and large wing area, the E.500 design would have a decent enough time against Allied bombers but would suffer greatly against the more agile fighter types designed in the 1940's.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1936

Origin
Nazi Germany national flag graphic
Nazi Germany

Status
CANCELLED
Development Ended.
Crew
4

Production
0
UNITS


Arado Flugzeugwerke - Germany
(View other Aviaton-Related Manufacturers)
National flag of modern Germany National flag of Nazi Germany Nazi Germany (abandoned)
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Installed: 2 x Daimler-Benz DB603 engines driving three-bladed propeller units in puller, contra-rotating fashion.
(Showcased performance specifications pertain to the base Arado Ar E.500 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD (Proposed):
2 x 20mm Rh LB 202 automatic cannons in dorsal turret.
2 x Automatic cannons in ventral gun position controlled via periscope.


Supported Types


Graphical image of an aircraft automatic cannon


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


E.500 - Developmental Designation.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

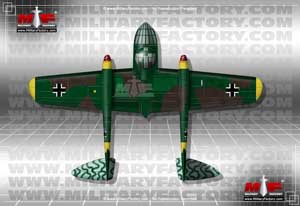

Image of the Arado Ar E.500
