Consolidated PT-1 Trusty


Primary Trainer Biplane Aircraft [ 1924 ]



The Consolidated PT-1 Trusty represented the first aircraft purchase of the Army Air Service since the closing shots of World War 1 in 1918.



Authored By: Staff Writer | Last Edited: 03/29/2016 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The "Trusty" was a product of the Consolidated Aircraft Corporation (though designed under the brand of the Dayton-Wright Company, itself a company under parent General Motors) and accepted for service as a primary trainer of the United States Army Air Service in 1921. The PT-1 made a name for herself as a stable and responsive platform (hence the nickname of "Trusty"), garnering the confidence of many early American military pilots. The system was of an advanced design when compared to the earlier all-wooden types of World War 1 and became the first aircraft to be ordered in any quantity by the USAAS (United States Army Air Service - as the American air force was still a part of the army at this time) after the end of hostilities in World War 1.

Externally, the PT-1 appeared as a biplane aircraft with a simple two-wheel undercarriage, an engine mounted at the front of the design, a traditional tail section and twin side-by-side seating for instructor and student. Internally, the aircraft featured a strengthened structure of welded tubing and a choice of a Clerget or Le Rhone engines. The Dayton-Wright Company approached the USAAS to replace their World War 1-era Curtiss JN-4 "Jenny" series of trainers and was in turn asked to deliver three TA-3 models for evaluation. Though the design itself proved promising enough, the TA-3 (designated with an "A" for its air-cooled engine operation) was delivered by request with an uprated Le Rhone engine of 110 horsepower. Still further evaluation models were ordered, this time with the requested Wright-Hispano I V-8, 150 horsepower engine of increased power (designated TW-3 with the "W" standing for its water-cooled engine process) finally culminating in an official order by the USAAS.

Production rights for the trainer were secured by the newly-created Consolidated Aircraft Company (established by Reuben Fleet of the Gallaudet firm) as General Motors was reviewing their commitment to aircraft production in a post-war world and would eventually shut down operations at Dayton-Wright altogether. The TW-3 was delivered by 1923 and became the first notable variant of the "Trusty" production line.

Improvements to the TW-3 design continued and included the removal of the engine cowling (for improved forward cockpit visibility) and a redesigned fuselage in a slimmer form with tandem instructor/student seating (this model being known as the "Camel" for the visible bump appearing between the two seating areas). The Camel was evaluated under the (unofficial) designation TW-8 and accepted into service as the PT-1 with 221 being delivered beginning 1924 and replacing the TW-3's in service. The PT-1 educated generations of aviators from the middle of the 1920's into the 1930's.

The PT-1 would eventually be replaced itself by the Consolidated PT-3 from 1928 onwards.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1924

Origin
United States national flag graphic
United States

Crew
2

Production
221
UNITS


Consolidated / Dayton-Wright - USA
(View other Aviaton-Related Manufacturers)
National flag of Thailand National flag of the United States Siam (Thailand); United States
(OPERATORS list includes past, present, and future operators when applicable)
Training (General)
Developed ability to be used as a dedicated trainer for student pilots (typically under the supervision of an instructor).


Length
27.8 ft
(8.46 m)
Width/Span
34.4 ft
(10.50 m)
Height
9.8 ft
(3.00 m)
Empty Wgt
1,806 lb
(819 kg)
MTOW
2,577 lb
(1,169 kg)
Wgt Diff
+772 lb
(+350 kg)
(Showcased structural values pertain to the base Consolidated PT-1 Trusty production variant)
Installed: 1 x Wright-Hispano E 8-cylinder water-cooled Vee engine developing 180 horsepower.
Max Speed
92 mph
(148 kph | 80 kts)
Ceiling
13,448 ft
(4,099 m | 3 mi)
Range
350 mi
(563 km | 1,043 nm)
Rate-of-Climb
690 ft/min
(210 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Consolidated PT-1 Trusty production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None.


Supported Types




(Not all ordnance types may be represented in the showcase above)
TA-3 - Dayton-Wright Production; fitted with Le Rhone C-9 series engine of 80 horsepower.
TA-5 - Single Production Model Example; fitted with Lawrance J-1 series engine; based on the TA-3 production model.
TW-3 - Dayton-Wright and Consolidated production models; Dayton-Wright fitted with water-cooled Wright-Hispano E series engines of 150 horsepower and Consolidated fitted with Wright-Hispano E series engines of 180 horsepower.
PT-1 - Base Series Designation; fitted with Wright-Hispano E series engines of 180 horsepower; 221 examples produced; replaced TW-3.
XPT-2 - PT-1 model fitted with Wright R-790 series radial J-5 engine of 225 horsepower.
TW-8 - Unofficial Prototype Model Designation; known as the "Camel" for the visible hump between instructor and student seating positions.
Consolidated Model 1 - Consolidated Model Designation of the TW-8 prototype.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 7

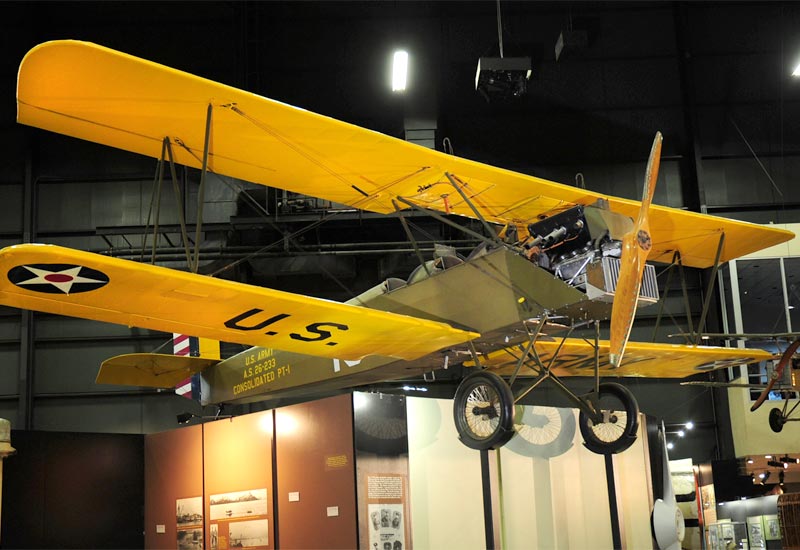

Image of the Consolidated PT-1 Trusty
