Morane-Saulnier Type N


Single-Seat, Single-Engine Monoplane Fighter Aircraft [ 1915 ]



The Morane-Saulnier Type N was of an advanced aerodynamic design for the time.



Authored By: Staff Writer | Last Edited: 06/06/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Moraine-Saulnier Type N (or simply "Moraine-Saulnier N") was a French fighter aircraft of the First World War. It appeared in limited production numbers (just 49 total aircraft) and was quickly replaced by more advanced platforms. The aircraft was in itself a great aerodynamic triumph utilizing an air-deflecting spinner at the front of the design and wing-warping (a Wright Brothers patented design technique) instead of moving surface planes more common in other aircraft of the war.

The Type N entered service in 1915. It appeared as an advanced aerodynamic monoplane design with most of the fuselage width dedicated to the Le Rhone 9C rotary piston engine of 110 horsepower. Wings were held well-forward in the design and mounted high. Landing gear were made up of two bicycle type wheels, also held forward. The pilot sat directly aft of the engine placement in an open-air cockpit with a clean look over the nose and under the wings, nothing but a small windshield to deflect oncoming debris. The distinct propeller spinner was the most notable part of the Type N's design as it lent the aircraft a design look well ahead of its time. Unfortunately for posterity's sake, it was soon found that the large metal spinner was actually the cause of engine overheating and was removed from future deliveries. This effectively solved all engine heating issues for the Le Rhone but removed one of the most ingenious parts of the aircraft in the process. Interestingly enough, the removal of the component did little in the way of enhancing or decreasing the aircraft's overall performance specs.

Armament consisted of a single .303 caliber machine gun which could be interchangeably of a Vickers or Hotchkiss design. At this time, synchronized or interrupted firing of machine guns through the propeller blades was generally still being reviewed and developed, forcing the Type N to take make-shift approach developed by Raymond Saulnier himself. The machine gun fired directly into the spinning propeller blades with each blade mounting deflector wedges. The wedges were known to decrease the performance of the spinning blade somewhat but allowed for firing of the machine gun nonetheless.

In essence, the operator could fire his machine gun at leisure though the actual amount of projectiles getting through the spinning blades would seemingly become random and hardly practical in a dogfight - still, the idea fared better than carrying rifles and pistols aloft. Though both sides inevitably released their synchronized firing mechanisms into the war, the Germans would get credited with first use of the concept via their Fokker platform in 1915. Interruptible machine gun systems would see use up until the Korean War, to which the jet age revolutionized every facet of dog fighting from there on.

The Morane-Saulnier Type N was utilized by French Air Forces (as the MS.5C.1) along with the British (referring to it as the "Bullet" for its spinner attachment) and the Imperial Russian Air Service. In practice, the aircraft proved to be a handful to fly and land. The wing-warping approach no doubt added to the operational dangers and it would take a well-trained pilot to fly the machine for any length of time. A high landing speed was reported, adding yet another element of danger for the man at the controls.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Morane-Saulnier - France
Manufacturer(s)
France; Imperial Russia; Ukraine; United Kingdom
Operators National flag of France National flag of Russia National flag of Ukraine National flag of the United Kingdom
1915
Service Year
France
National Origin
Retired
Project Status
1
Crew
49
Units


AIR-TO-AIR COMBAT
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.


22.0 ft
(6.70 meters)
Length
27.2 ft
(8.30 meters)
Width/Span
8.2 ft
(2.50 meters)
Height
635 lb
(288 kilograms)
Empty Weight
979 lb
(444 kilograms)
Maximum Take-Off Weight
+344 lb
(+156 kg)
Weight Difference


1 x Le Rhone 9C rotary piston engine developing 110 horsepower driving a two-bladed propeller at the nose.
Propulsion
103 mph
(165 kph | 89 knots)
Max Speed
13,123 ft
(4,000 m | 2 miles)
Ceiling
140 miles
(225 km | 121 nm)
Range
820 ft/min
(250 m/min)
Rate-of-Climb


MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


STANDARD; FIXED:
1 x 7.7mm OR 8mm Vickers OR Hotchkiss fixed forward-firing machine gun.


0
Hardpoints


Morane-Saulnier N (also Morane-Saulnier Type N) - Single-Seat Fighter/Reconnaissance Platform.
Morane-Saulnier Type Nm - Redesigned tail section; limited production.
MS.5C.1 - Official French Air Force Designation
"Bullet" - British Designation


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for Special Forces
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Images



1 / 7

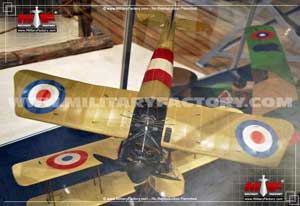

Image of the Morane-Saulnier Type N
