Boeing KC-135 Stratotanker

Airborne Refueling Tanker / Special Mission Military Aircraft [ 1957 ]

Systems such as the KC-135 have evolved air combat throughout the decades.

Authored By: Staff Writer | Last Edited: 04/24/2023 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

Image copyright www.MilitaryFactory.com; No Reproduction Permitted.

GO TO SPECIFICATIONS [+]

Advertisements

The KC-135 "Stratotanker" became a notable aircraft product for the Boeing Company primarily in offering the United States Air Force (USAF) unparalleled war-planning capabilities and logistics support through in-flight refueling and transportation. Furthermore, the KC-135 tanker airframe became the basis for the C-135 "Stratolifter" strategic transport and the commercial 707 civilian airliner. Total production of Stratotankers reached 803 from the period spanning 1955 until 1965. This series aircraft continues to serve the USAF, and other allied nations, with its critical support capabilities.

The KC-135 series succeeded the KC-97 Stratofreighter in the aerial refueling role.

Inflight refueling was pioneered during the Cold War period (1947-1991) and streamlined with the arrival of larger jet-powered aircraft. This result allowed military warplanners an unprecedented global reach when dictating the actions of their forces. To this day, in-flight refueling remains a large part of the success of any one air power, especially when dealing with activities over large distances, and is critical to the scope of USAF operations around the world. Consider that it also requires a steady hand-and-eye for airmen and tanker crews alike to complete the precision process required of refueling a combat warplane in-air.

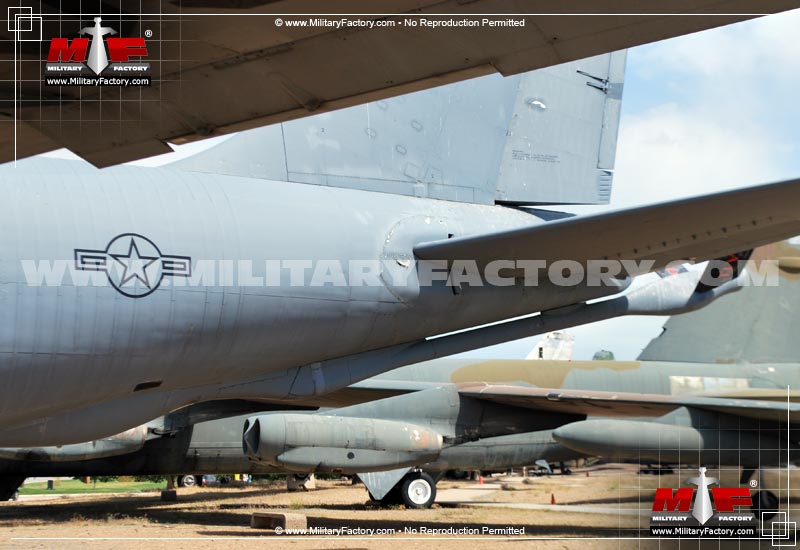

Design work began in the early 1950's to fulfill a standing USAF requirement for a new dedicated in-flight refueler with jet-powered performance. The result became the Boeing Model 367-80 demonstrator that, in turn, became the KC-135. The KC-135 featured tanking equipment and an all-Boeing-designed powered boom. Fuel was carried in the belly and wing sections with propulsion power stemming from 4 x CFM International CFM56 turbofan engines. The aircraft typically saw an operating of just four personnel - two pilots, a navigator and a boom operator - though additions could be made when required (for instance five crewmen were featured in the MEDEVAC version).

As designed, the KC-135 (KC-135R) was given a running length of 127.9 feet, a wingspan of 129.7 feet and a height of 38 feet. Its empty weight was 98,465lb against an MTOW of 322,500lb. Maximum speed was 580 miles per hour with a cruise speed near 530 mph. Range was out to 1,500 miles and a service ceiling of 50,000 feet was possible. Rate-of-climb became 4,900 feet-per-minute.

Modernization programs (including "re-engining" and software upgrades) have propelled the KC-135 series into the new millennium. The platform is still a large factor in global operations involving the USAF and increases the reach of all aircraft on sortie. Other nations rely on the KC-135 series as well, though it has not had quite the impact anywhere else as it has had for U.S. forces traveling the globe.

Operators of the KC-135 family include Chile, France, Singapore and Turkey. Variants include the original KC-135A, the KC-135B Airborne Command Post and the KC-135D. The KC-135E served the Air National Guard and the NKC-135E was a KC-135E converted for tests. The NKC-135N served the United States space program and the E-135N was outfitted with equipment to support the Apollo rocket program. The KC-135Q carried JP-7 fuel for the Lockheed SR-71 Blackbird spyplane and some 56 were modified to the standard.

The KC-135R were four KC-135A aircraft modified for nuclear reconnaissance and powered by 4 x Pratt & Whitney J57 engines. A later form of the KC-135R were some 361 KC-135A and KC-135E production models with CFM-56 series engines. The KC-135R(RT) was used for secure SATCOM radio transmissions and three were converted from RC-135D production models.

The KC-135T was the KC-135Q with the CFM-56 engines and 54 aircraft were modified to the standard. The EC0135Y was another Airborne Command Post developed in 1984 to support United States Central Command operations. This example was powered by 4 x Pratt & Whitney TF-33-PW-102 series engines.

Since service introduction in 1957, the KC-135 family of special-mission aircraft has served from the Vietnam War years (1955-1975), through to the end of the Cold War (1991), as part of Strategic Air Command (SAC) (1947-1992) and into Operation Allied Force (1999).

The KC-135 series is set to be replaced by the in-development Boeing KC-46 "Pegasus" line detailed elsewhere on this site.

Special thanks to Anthony S of the Boeing Corporation for his input.©MilitaryFactory.com

Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

November 2018 - Existing USAF KC-135 platforms are now scheduled to receive the same enhanced situational awareness survivability package used in the C-130H model. This will consist of Helmet-Mounted Displays (HMDs), electronic jamming equipment, and Radar Warning Receivers (RWRs).

August 2019 - Beginning in September, USAF KC-135 aerial tankers will be receiving the Automatic Dependent Surveillance-Broadcast (ADS-B) position reporting system on 417 Stratotanker examples.

October 2020 - The French Air Force has begun retiring its fleet of KC-135 Stratotankers as it grows its commitment to the A330 "Phenix" MRTT.

Specifications

Service Year

1957

Origin

United States

Status

ACTIVE
In Active Service.

Crew

4

Production

803
UNITS

The Boeing Company - USA

(View other Aviaton-Related Manufacturers)

Chile; France; Singapore; Turkey; United States

(OPERATORS list includes past, present, and future operators when applicable)

✓ Aerial Refueling (Tanker)
Dedicated or converted airframe used to deliver fuel to awaiting allied aircraft.

✓ Special Forces
Serving Special Forces / Special Operations elements and missions.

Length

136.3 ft
(41.53 m)

Width/Span

130.8 ft
(39.88 m)

Height

41.7 ft
(12.70 m)

Empty Wgt

106,307 lb
(48,220 kg)

MTOW

322,503 lb
(146,285 kg)

Wgt Diff

+216,196 lb
(+98,065 kg)

(Showcased structural values pertain to the Boeing KC-135R Stratotanker production variant)

Installed: 4 x CFM F108 turbofan engines developing 22,000 lb of thrust each.

Max Speed

610 mph
(982 kph | 530 kts)

Ceiling

41,719 ft
(12,716 m | 8 mi)

Range

2,880 mi
(4,635 km | 8,584 nm)

Rate-of-Climb

1,290 ft/min
(393 m/min)

♦ MACH Regime (Sonic)

Sub

Trans

Super

Hyper

HiHyper

ReEntry

♦

(Showcased performance specifications pertain to the Boeing KC-135R Stratotanker production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)

None.

Supported Types

(Not all ordnance types may be represented in the showcase above)

367-80 - Demonstrator Model Designation

KC-135A - Initial USAF Production Model Designation fitted with J57 turbojets.

KC-135E - Re-engined Air National Guard and Air Force Reserve units fitted with TF33 turbofans.

KC-135FR - Re-engined C-135F Models for French export.

KC-135Q - Modified KC-135 systems to refuel the Lockheed SR-71 Blackbird (56 converted as such).

KC-135T - Re-engined KC-135Q models with F108 powerplants.

KC-135R - Base KC-135 models re-engined with CFM International F108 (CFM56) turbofan engines.

C-135 - Military Transport Variant Series Designation.

C-135F - French Export Variants of which 12 delivered; later re-engined with F108 powerplants becoming KC-135FR designations.

707 - Civilian Transport Variant Model Designation.
