Armstrong Whitworth Albemarle


Transport / Tug Aircraft [ 1941 ]



The Armstrong Albemarle failed to impress as a bomber and, as such, was relegated to glider tug and transport service during World War 2.



Authored By: Staff Writer | Last Edited: 10/17/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Armstrong Whitworth Albemarle became one of those aircraft designs that evolved into a role not initially envisioned. The system was born from an earlier Bristol-designed reconnaissance platform that went nowhere and was further evolved by Armstrong Whitworth as a bomber. When that classification failed for the Albemarle, the system was relegated to dedicated transport and glider tug, taking part in some of the major offensives and invasions of World War 2. Generally regarded as unpleasant-an-aircraft as there ever was, the Albemarle would nevertheless become an integral part of the British war effort.

The Albemarle appeared in prototype form as early as 1939 with production sending early examples to frontline forces by 1941. The system failed to shine as a dedicated bomber through the first 42 systems delivered and many were switched over to the transport role. Construction was of a mix-wood and metal, incorporating a basic fuselage with heavy glazing along the nose. The twin engines were mounted along a mid-wing monoplane arrangement. A lone, manually-operated turret was fitted in a dorsal/middle-fuselage position and could be fitted with 2 x or 4 x 7.7mm machine guns as required. Twin rudder fins were set in the tail section. Power came from 2 x Bristol Hercules XI series, 14-cylinder radial piston engines which could generate up to 1,590 horsepower apiece. One unique aspect of the Albermarle's design was in her use of a tricycle landing gear system, something no other British production aircraft had fielded up to this point.

The Albemarle took part in the invasion of Sicily to which they were used to tow support gliders into action. Additionally, the system took part in the upcoming D-Day invasion landings of June 1944 (again as glider tugs) and served with airborne elements during the airdrops over Arnhem - one of three major points controlling three major bridges in British General Bernard Law Montgomery's far-reaching "A Bridge Too Far" campaign to end the war before Christmas. In the end, the Albemarle served with some subtle distinction in her not-too-glorious - yet ultimately detrimental - transport/utility role, a role never intended for the old girl at the outset.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1941

Origin
United Kingdom national flag graphic
United Kingdom

Status
RETIRED
Not in Service.
Crew
4

Production
600
UNITS


National flag of the Soviet Union National flag of the United Kingdom United Kingdom; Soviet Union
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.


Length
59.9 ft
(18.26 m)
Width/Span
77.0 ft
(23.47 m)
Height
15.6 ft
(4.75 m)
Empty Wgt
22,600 lb
(10,251 kg)
MTOW
36,500 lb
(16,556 kg)
Wgt Diff
+13,900 lb
(+6,305 kg)
(Showcased structural values pertain to the Armstrong Whitworth Albemarle Mk II production variant)
Installed: 2 x Bristol Hercules XI 14-cylinder radial air-cooled piston engines developing 1,590 horsepower each.
Max Speed
256 mph
(412 kph | 222 kts)
Ceiling
17,999 ft
(5,486 m | 3 mi)
Range
1,350 mi
(2,173 km | 4,024 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Armstrong Whitworth Albemarle Mk II production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
2 OR 4 x 7.7mm Vickers machine guns in manually-operated dorsal turret

OPTIONAL:
Up to 4,500lb of ordnance held internally.


Supported Types


Graphical image of an aircraft medium machine gun


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


Mk I - Initial Production Models; 42 being completed as bomber types whilst remaining 558 built to transport specifications.
Mk II - Transport Variant
Mk V - Glider Tug
Mk VI - Glider Tug


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 4

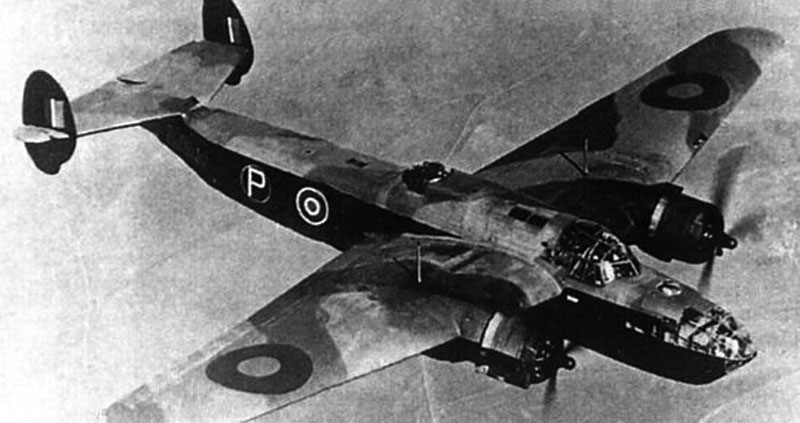

Image of the Armstrong Whitworth Albemarle
