Aviation / Aerospace

AMX International AMX

Light Strike / Advanced Trainer Aircraft [ 1989 ]

The AMX International was a consortium project handled by Italian and Brazilian aircraft design firms.

Authored By: Staff Writer | Last Edited: 02/25/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

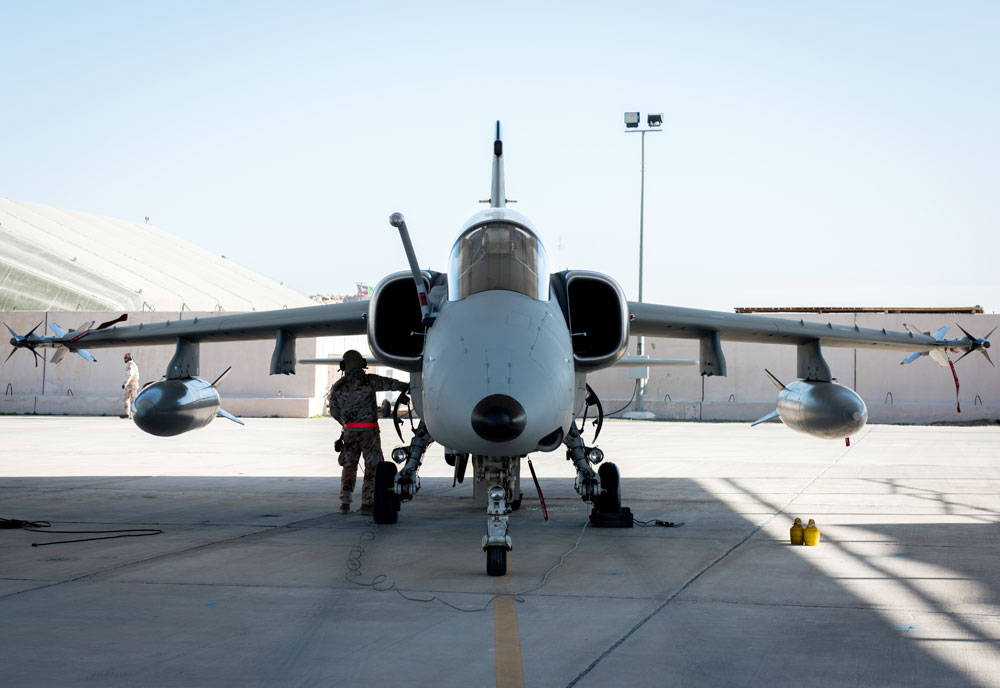

Image from the United States Department of Defense DVIDS imagery gallery.

GO TO SPECIFICATIONS [+]

Advertisements

The subsonic AMX International AMX (known as the "Gibli" to the Italian Air Force) was the result of cooperation between two Italian (Aeritalia - now Alenia - and Aermacchi) and one Brazilian (Embraer) aircraft firms. Development of the aircraft began with just the two Italian companies in 1978 after the Italian Air Force put forth a requirement for a advanced multi-role platform with inherent reconnaissance capabilities. This requirement was seen as an appropriate replacement for Italy's aging fleet of American-originated Lockheed F-104 "Starfighters" and Italian Aeritalia G.91 series aircraft. Determined to fulfill this requirement with an all-indigenous fighter design, Aermacchi and Aeritalia set to work on what would become the "AMX". Coming into the program in 1980, the Brazilian Air Force joined the venture to fulfill a similar local air force requirement. The aircraft were then produced under the "AMX International" brand label.

The AMX program progressed into a first flight on May 15th, 1984 - this prototype serving the Italians with the Brazilian prototype unveiled a year later. The major difference between the two aircraft designs lay in their avionics package which showed the customizability afforded to the AMX airframe as a whole - a promising side-effect becoming an export-friendly product on the world stage. The initial order was for 272 aircraft but this was later reduced to 136 due to budgetary constraints for both involved nations. Nevertheless, development continued with little in the way of technical setbacks. Official production-quality aircraft entered service in 1989 with frontline strength reached in 1990. Production of the AMX series broke down as Alenia (Aeritalia) handling up to 46.7% whilst Embraer took its 29.7% share and Aermacchi handled a 23.6% portion. Final assembly was managed locally in the respective countries.

Externally the AMX is given high-mounted monoplane wings, twin air intakes, and a single engine installation. Crew accommodations varied depending on the model in question and could either be a single pilot or pilot with systems operator seated in tandem. The latter served well the purpose of light strike or advanced jet training. Standard armament varied little between the Italian and the Brazilian types with the Italian version receiving a single 20mm General Electric internal, six-barrled, Gatling-style cannon and the Brazilian version being equipped with twin 30mm DEFA cannons. Four underwing hardpoints, a centerline hardpoint, and wingtip hardpoints all added to the inherent versatility of this relatively compact aircraft. Wingtip mounts were reserved for short-range air-to-air missiles but the other hardpoints were designed to carry variable ordnance loads from guided missiles, bombs, rocket pods, jettisonable fuel tanks for improved range, and reconnaissance pods or target laser designators.

The AMX with the Italians went on to see considerable operational service since its introduction - fighting as part of the U.N.-led "Allied Force" air campaign against Serbia and accounting for over 250 sorties for its part in the operation. The aircraft was fielded with advanced Israeli-made Elbit "Opher" imaging InfraRed (IR) guided drop bombs that proved to be as accurate as advertised. Among other ordnance fielded by the Italian AMX during the war were Mk 82, Mk 83, and Mk 84 conventional drop bombs to go along with "Paveway II" series Laser-Guided Bombs (LGBs).©MilitaryFactory.com

Advertisements

Despite it not reaching a more impressive export total, the AMX proved itself a viable weapons delivery platform - considering its design by a consortium of different aircraft firms located on different continents. Export orders were to have been increased by way of a 1999 Venezuelan order for eight aircraft but the United States blocked its sale on the grounds that the aircraft contained some U.S. technology aboard - the American and Venezuelan governments at odds for many decades.

In its modern form, the AMX is powered by a single Rolls-Royce Spey 807 series (non-afterburning) turbofan engine of 11,030lbf. Maximum speed is 570 miles per hour with combat ranges out to 555 miles and ferry ranges out to 2,075 miles. Its service ceiling is in the 42,650 foot range with a rate-of-climb approaching 10,250 feet per minute.

205 AMXs have been produced with the final airframe arriving during 2002. Several marks make up the line:

The AMX-T is a two-seat advanced trainer and the AMT-ATA is a two-seat "Advanced Trainer Attack" model. The AMX-R (RA-1) is a reconnaissance-minded platform. The A-1M is a Brazilian upgraded variant while the A-11A and TA-11A are upgraded Italian marks. The A-11B designation is for Italian aircraft as is TA-11B.

The AMX-T two-seat advanced trainer achieved first flight in 1990. The A-11B makes up the stock of upgraded Italian AMXs from seen from 2006 onwards. In 2013, the Brazilian Air Force began receiving upgraded AMXs through a 43-batch initiative as the A-1M. These aircraft are equipped with Mectron SCP-01 series radar, FLIR, BR2 data links, Israeli Elbit navigation, and "all-glass" digital cockpits.

The A-1 in Italian service is slated for retirement along with the AV-8 Harrier and PANAVIA Tornado strike fighters as the Lockheed F-35 Lightning II arrives in ever-larger numbers. The Lighting II will be fielded with the Eurofighter Typhoon as Italy's proposed frontline "one-two punch".©MilitaryFactory.com

Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

February 2019 - The AMX International AMX is service with the Italian Air Force is scheduled for be phased out in 2021. The fleet will be succeeded by the incoming Lockheed F-35 Lightning II strike fighter from the United States.

Specifications

Service Year

1989

Origin

Italy

Status

ACTIVE
In Active Service.

Crew

1

Production

206
UNITS

Aeritalia-Alenia; Aermacchi - Italy / Embraer - Brazil

(View other Aviaton-Related Manufacturers)

Brazil; Italy

(OPERATORS list includes past, present, and future operators when applicable)

✓ Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.

✓ Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.

✓ Training (General)
Developed ability to be used as a dedicated trainer for student pilots (typically under the supervision of an instructor).

Length

43.4 ft
(13.23 m)

Width/Span

29.1 ft
(8.87 m)

Height

14.9 ft
(4.55 m)

Empty Wgt

14,837 lb
(6,730 kg)

MTOW

28,660 lb
(13,000 kg)

Wgt Diff

+13,823 lb
(+6,270 kg)

(Showcased structural values pertain to the base AMX International AMX production variant)

Installed: 1 x Rolls-Royce Spey Mk 807 non-afterburning turbofan engine developing 11,030 lb of thrust.

Max Speed

651 mph
(1,047 kph | 565 kts)

Ceiling

42,651 ft
(13,000 m | 8 mi)

Range

345 mi
(556 km | 1,030 nm)

Rate-of-Climb

10,250 ft/min
(3,124 m/min)

♦ MACH Regime (Sonic)

Sub

Trans

Super

Hyper

HiHyper

ReEntry

♦

(Showcased performance specifications pertain to the base AMX International AMX production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)

STANDARD:
1 x 20mm General Electric GE M61A1 Vulcan internal cannon (Italy) OR 2 x 30mm DEFA internal cannons (Brazil).

OPTIONAL:
Mission-Specific Ordnance can include any of the following:

AIM-9 "Sidewinder" air-to-air missiles (wingtip mounted), MAA-1 "Piranha" air-to-air-missiles (wingtip mounted), Mk 82 bombs, Mk 83 bombs, Mk 84 bombs, Paveway II Laser-Guided Munitions, rocket pods, cluster bombs, "Skyshark" Munition Dispenser, or Elbit "Opher" imaging infra-red guided bomb.

Also Oude Delft Orpheus reconnaissance pod and CDLP laser-designator pod.

Supported Types

Graphical image of an aircraft automatic cannon

Graphical image of an aircraft Gatling-style rotating gun

Graphical image of an air-to-air missile weapon

Graphical image of a short-range air-to-air missile

Graphical image of aircraft aerial rockets

Graphical image of an aircraft rocket pod

Graphical image of an aircraft conventional drop bomb munition

Graphical image of an aircraft guided bomb munition

(Not all ordnance types may be represented in the showcase above)

Hardpoint Mountings: 7 (including wingtips)

AMX - Base Series Designation

AMX-ATA (Advanced Trainer Attack) - Tandem-Seat Model fitted with Elbit avionics package.

AMX-E - Tandem-Seat HARM-Capable Model; "Escort Jammer" model based on the AMX-T.

AMX-MLU - Mid-Life Update Model; fitted with redesigned radar system; FLIR capable; improved avionics package; NVG cockpit.

AMX-T - Based on the AMX-ATA model; fitted with Elbit avionics; digital cockpit.

A-1 - Brazilian Series Designation

A-1B - Brazilian Production Model

TA-1 - Brazilian Production Model
