Douglas B-26K Counter Invader (A-26B)


Tactical Support / Ground Attack Aircraft (1966)


Aviation / Aerospace

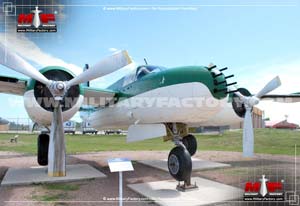

1 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
2 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
3 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
4 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
5 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
6 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
7 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
8 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
9 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
10 / 14
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
11 / 14
Image from the Museum of the United States Air Force, Dayton, Ohio, USA.
12 / 14
Image from the Museum of the United States Air Force, Dayton, Ohio, USA.
13 / 14
Image from the Museum of the United States Air Force, Dayton, Ohio, USA.
14 / 14
Image from the Museum of the United States Air Force, Dayton, Ohio, USA.

Jump-to: Specifications

The Douglas B-26K Counter Invader was born from the World War 2-era B-26 Invader, highly modified for the counter-insurgency role in Southeast Asia during the 1960s.



Authored By: Staff Writer | Last Edited: 04/29/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.
The B-26K/A-26B "Counter Invader" was based on a highly-modified airframe of the World War 2-era Douglas A-26 "Invader" twin-engined attack aircraft. By 1948, the A-26 had been redesignated as the "B-26" and the B-26K was developed for counter-insurgency work in Southeast Asia. On Mark Engineering converted forty B-26B/TB-26B airframes, along with a pair of B.26C and a single JB-26C - for the role and changes included 2 x R-2800-103W radial engines of 2,500 horsepower, dual-control schemes in the cockpit, wingtip fuel tanks, and modernized avionics. The ordnance load was increased from the wartime model and all turreted armament removed in favor of fixed, forward-firing weapons. Different engine cowls were also added as were cropped propeller units.

The original designation for this aircraft was known in the United States inventory as "B-26B" but became "A-26K" when the units were stationed overseas in countries such as Thailand for local authorities refused to allow "bombers" on home soil during the war in Southeast Asia - hence the designation changes in the Counter Invader's short history. As such, it is often referred rather interchangeably as the "B-26K" or "A-26B" ("B" meaning "Bomber" and "A" meaning "Attack").

Externally, the Counter Invader retained much of the form of its World War 2 counterpart. The aircraft utilized shoulder-mounted monoplane wings which were reinforced for its new mission role and showcased dihedral. The engine nacelles were fitted to the leading wing edges in the typical way with each powerplant driving three-bladed (reversible) propellers. The undercarriage was of a conventional tricycle arrangement with two main members and a noseleg for ground-running. The stepped cockpit was positioned just aft of the nose assembly with the nose housing the aircraft's primary armament. The fuselage incorporated rounded edges and was slab-sided, tapering off to form the empennage. The all-new tail unit relied on a single (clipped) vertical fin and low-set horizontal planes (also displaying dihredral).

The forward, fixed armament consisted of 8 x 0.50 caliber heavy machine guns stacked as two columns of four guns each. Up to 8,000lb of mixed ordnance (rocket pods, conventional drop bombs, gun pods, cannon pods) could be carried externally at multiple underwing hardpoints (four to a wing). Internally, an additional 4,000lb of drop stores could be hauled giving the B-26K quite the potent punch.

As modified, the aircraft could reach speeds of 323 miles per hour out to a range of 2,700 miles and up to a ceiling of 30,000 feet. Dimensions included a wingspan of 71.5 feet, a length of 51.6 feet, and a height of 19 feet. Maximum Take-Off Weight (MTOW) became 38,314lb.

While the original Douglas A-26 Invaders saw combat actions throughout World War 2 (1939-1945) and the upcoming Korean War (1950-1953) (as the B-26), the revised B-26K "Counter Invader" would be sent to Southeast Asia in 1966.

The series was actually retired from frontline service in 1958 but brought back online in 1961 when the USAF saw a need for tactical bombers over the region. Wear-and-tear eventually forced their removal once more in 1964 but as soon as 1966, the revitalized series returned to service in their new Counter Invader guises. These aircraft would serve in the region up until 1969 by which time they were finally removed from frontline service - again simply due to the stress and rigors of war placed on the decades-old airframes.

Counter Invader pilots were known as "Nimrods".

Specifications



Service Year
1966

Origin
United States national flag graphic
United States

Status
RETIRED
Not in Service.
Crew
3

Production
40
UNITS


Douglas Aircraft Company - USA
National flag of the United States United States (retired)
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.


Length
51.7 ft
(15.76 m)
Width/Span
71.5 ft
(21.80 m)
Height
19.0 ft
(5.79 m)
MTOW
38,312 lb
(17,378 kg)
(Showcased structural values pertain to the Douglas B-26K Counter Invader production variant)
Installed: 2 x Pratt & Whitney R-2800-52W water-injected radial piston engines developing 2,500 horsepower.
Max Speed
322 mph
(519 kph | 280 kts)
Ceiling
30,000 ft
(9,144 m | 6 mi)
Range
2,700 mi
(4,345 km | 8,047 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Douglas B-26K Counter Invader production variant. Compare this aircraft entry against any other in our database. View aircraft by powerplant type)
STANDARD:
8 x 0.50 caliber fixed, forward-firing heavy machine guns in nose.

OPTIONAL:
8 x External Hardpoints capable of up to 8,000lb of mixed ordnance (to include gun pods, cannon pods, bombs, rocket pods). An additional 4,000lb carried in an internal bomb bay.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun
Graphical image of an aircraft automatic cannon
Graphical image of an aircraft machine gun pod
Graphical image of an aircraft cannon pod
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod
Graphical image of an aircraft conventional drop bomb munition


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 8


B-26K "Counter Invader" - Original Designation; Tactical Strike Aircraft Model fitted with 8 x 12.7mm machine guns in nose assembly; turrets removed; provisions for external wing hardpoints (8x); reconfigured cockpit.
VB-26B - US National Guard Model Designation
A-26B "Counter Invader" - Vietnam Theater Designation.


Cockpit image of the Douglas B-26K Counter Invader (A-26B)
(Cockpit image represents the Douglas B-26K production model)


General Assessment
Firepower
Performance
Survivability
Versatility
Impact


Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
36
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 400mph
Lo: 200mph
This entry's maximum listed speed (322mph).

Graph average of 300 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Douglas B-26K Counter Invader operational range when compared to distances between major cities (in KM).
Max Altitude Visualization
Small airplane graphic
Design Balance
The 3 qualities we look at for a balanced aircraft design are altitude, speed, and range.
Aviation Era Span
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (40)
