Curtiss XP-42


Prototype Fighter Aircraft [ 1939 ]



The Curtiss XP-42 was a further development of the P-36 product, though it lost out to the XP-40 after competition trials.



Authored By: Staff Writer | Last Edited: 06/26/2017 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Curtiss XP-42 was a further development of the Curtiss P-36 Hawk model though it would share some initial outward similarities to Curtiss' most well known aircraft - the P-40 Warhawk. Later in its development, the XP-42 would see a series of changes that would liken it back to its P-36 roots. The system was modified from a P-36A and given the S/N of 38-004 and was featured in a series of tests designed to reduce drag qualities of radial piston engines. As such, this P-36A featured a redesigned nose and an entirely new powerplant operating a three-blade propeller.

The aircraft featured an air scoop under the engine while the carburetor scoops were mounted at top. In an interesting design feature, a long shaft was developed to properly reach and drive the propeller system. The resulting aircraft proved to be faster than the P-36A but it also faced cooling issues for the engine, serious vibration problems inherent in the propeller shaft system and the XP-42 would never prove faster than the P-40. As a result, the XP-42 gave way to the P-40 Warhawk series of aircraft, which would nab the available Army production orders and become one of America's classic warfighters of its time.

Only a single P-36A was modified as an XP-42. The system was powered by a Pratt & Whitney R-1830 radial series engine generating an impressive 1,050 horsepower. The system was crewed by one personnel and the entire project was officially ended by 1947, to which the aircraft was scrapped for parts.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1939

Origin
United States national flag graphic
United States

Crew
1

Production
1
UNITS


National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
28.2 ft
(8.60 m)
Width/Span
37.1 ft
(11.30 m)
Height
8.2 ft
(2.50 m)
Empty Wgt
4,817 lb
(2,185 kg)
MTOW
5,648 lb
(2,562 kg)
Wgt Diff
+831 lb
(+377 kg)
(Showcased structural values pertain to the base Curtiss XP-42 production variant)
Installed: 1 x Pratt & Whitney R-1830-31 radial engine developing 1,050 horsepower.
Max Speed
250 mph
(402 kph | 217 kts)
Ceiling
37,198 ft
(11,338 m | 7 mi)
Range
830 mi
(1,336 km | 2,474 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Curtiss XP-42 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
2 x 7.62mm machine guns above nose section


Supported Types


Graphical image of an aircraft medium machine gun


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


P-36A - Initial Model on which the XP-42 was based on.
Model 75S - Curtiss Company Model Designation
P-42 - Base Model Series Designation
XP-42 - USAAC Designation


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 4

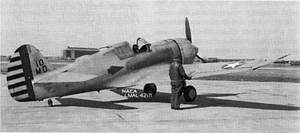

Image of the Curtiss XP-42
