Volansi Voly 50


VTOL ISR / Cargo Drone [ 2023 ]



The Volansi Voly 50 expands upon previous work by the company in VTOL unmanned cargo-delivery systems and adds an ISR function to the mix.



Authored By: Staff Writer | Last Edited: 08/17/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Volansi "Voly 50" series Unmanned Aircraft System (UAS) is a long-range, multi-mission support drone directed at military applications. The design expands on Volansi, Incorporated's work in the Vertical Take-Off and Landing (VTOL) cargo-delivery field, broadening in-the-field applications related to the Intelligence-Surveillance-Reconnaissance (ISR) role critical to military forces today. The VTOL capabilities of this system allow the unit to exhibit helicopter-like qualities, including agility and a small footprint, giving it an edge in hard-to-reach places that naturally prevent access to fixed-wing drone designs.

The general configuration of the Voly 50 sees a centralized nacelle housing all pertinent operating systems including avionics, optics, fuel, and engine. The optics blister is seated at the "chin" position of the fuselage and the engine at the rear driving a two-bladed propeller unit in "pusher" configuration. This pusher prop provides the unit's forward momentum in flight. The mainplanes are high-mounted on the fuselage and each member has paired, outboard lift propellers which result in a "quad-boom" design form. Vertical tailplanes are fitted at the ends of the inboard tail booms. The mainplanes extend well beyond the outboard-most lift prop arms and are capped by down-canted winglets. The vehicle is supported on the ground by way of simple four-legged undercarriage.

Because of the Voly 50s unique design, it does not require a runway of any sort and can take-off and land under its own power (no catapult or parachute, respectively, is needed in the operational flow). The reliance on no fewer than eight twin-bladed lift props gives the air vehicle considerable power when taking off and exceptional control when landing.

Per Volansi marketing materials, the Voly 50 series has a payload capacity of up to 50 lb.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
2023

Origin
United States national flag graphic
United States

Status
IN-DEVELOPMENT
Program in Progress.
Crew
0
UNMANNED
Production
1
UNITS


National flag of the United States United States (in testing)
(OPERATORS list includes past, present, and future operators when applicable)
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Special-Mission: Search & Rescue (SAR)
Ability to locate and extract personnel from areas of potential harm or peril (i.e. downed airmen in the sea).
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.
Unmanned Capability
Aircraft inherently designed (or later developed) with an unmanned capability to cover a variety of over-battlefield roles.


PUSHER-PROP
Design incorporates rear-facing pusher-prop arrangement, a contrast to the more conventional puller-prop layout.
RUGGED AIRFRAME
Inherent ability of airframe to take considerable damage.
HIGH-ALTITUDE PERFORMANCE
Can reach and operate at higher altitudes than average aircraft of its time.
EXTENDED RANGE PERFORMANCE
Capability to travel considerable distances through onboard fuel stores.
MARITIME OPERATION
Ability to operate over ocean in addition to surviving the special rigors of the maritime environment.
ENHANCED ACCESS
Design incorporates feature(s) that facilitates loading / unloading of cargo / personnel from the aircraft.
UNMANNED OPERATION
Design features ability to fly sans pilot, actions controlled onboard through programming and / or ground-based operator.
AUTONOMOUS OPERATION
Design features autonomous flight operations made possible through onboard artificial intelligence or pre-programming.
CAMERA EQUIPMENT
Payload supports photographic equipment providing still and / or real-time image / video results.


monoplane / high-mounted / straight
Monoplane
Design utilizes a single primary wing mainplane; this represent the most popular mainplane arrangement.
High-Mounted
Mainplanes are mounted at the upper-most position allowable along the dorsal line of the fuselage.
Straight
The planform involves use of basic, straight mainplane members.
(Structural descriptors pertain to the base Volansi Voly 50 production variant)
Installed: 8 x Twin-bladed lift-propellers with 1 x Twin-bladed "pusher" propeller seated at the rear of the fuselage nacelle.
(Showcased performance specifications pertain to the base Volansi Voly 50 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None. Mission load related to the Intelligence-Surveillance-Reconnaissance (ISR) role. Cargo load limited to 50lb.


Supported Types




(Not all ordnance types may be represented in the showcase above)
Voly 50 - Base Series Name.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

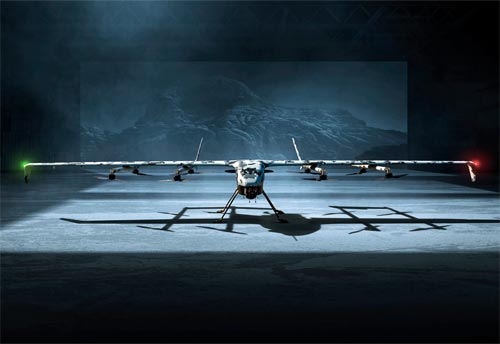

Image from official Volansi, Inc. marketing materials.
