Beech AT-11 Kansan

Bomber and Gunnery Trainer Aircraft [ 1937 ]

The effective Beech AT-11 Kansan flying classroom proved an ultra-critical component of the American bomber force effort of World War 2.

Authored By: Staff Writer | Last Edited: 06/21/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

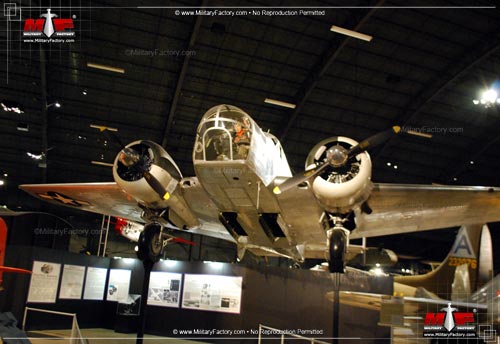

Image copyright www.MilitaryFactory.com; No Reproduction Permitted.

VIEW SPECIFICATIONS [+]

Born from the pre-World War 2 Beech AT-7 navigational trainer of the United States Army Air Forces (USAAF) - itself based in the commercial grade Beech Model 18 twin - the AT-11 "Kansan" became the services primary bomber and aerial gunnery trainer in the pre-World War 2 period. The aircraft excelled in its role to the point that some 1,582 units were produced for the USAAF before and during the war. The aircraft introduced rectangular windows along the cabin sides, a glazed-over nose (for the bombardier trainee), an internal bomb bay complete with powered doors, bomb racks, and up to 3 x 0.30 caliber air-cooled machine guns (for gunnery trainees) on trainable mountings.

The aircraft was a twin-engine design of conventional arrangement and typical performance for the period and role. It showcased a short, rounded nose assembly and, aft of this, were the pilots in side-by-side arrangement. The cockpit included control yokes for each pilot with a shared instrument panel interface (including throttle controls along a center console). At the front bombardier's position was installed the famous Norden Bombsight - giving the bombardier full piloting control over the aircraft for the critical bombing run. The fuselage was slab-sided and tapered noticeably towards the rear to which a twin-finned rudder assembly was mounted along a shared horizontal plane. The mainplanes were low-mounted along the fuselage sides and each carried a streamlined engine nacelle which protruded from the leading edge. The engines were in clear view for both pilots. A wheeled tail-dragger undercarriage was featured with the trio of legs being retractable in the design.

For power, the aircraft relied on 2 x Pratt & Whitney R-985 air-cooled radial piston engines developing 450 horsepower each and driving two-bladed metal propellers in tractor configuration. Maximum speed was 215 miles-per-hour while cruising was generally at 150 mph. Range was out to 745 miles with a reported service ceiling of 20,000 feet.

Dimensions included a length of 34.1 feet, a span of 47.7 feet, and a height of 9.7 feet. Weight reached 9,300lb gross.

The primary - and definitive - production model was designated simply as "AT-11" and these were followed by the "AT-11A" which were some 36 AT-11 examples converted to navigational trainers. Initial production models featured a single-gunned (0.30 cal) Beechcraft dorsal turret for gunnery training with later models switching over to a twin-gunned (2 x 0.30 cal) Crocker Wheeler-branded emplacement instead. A tail gunner's training position was also added.

Beyond the state production number associated with the USAAF commitment, an order for another twenty-four was originally placed by The Netherlands to support training but these were taken over by the American service - though eventually serving the Royal Netherlands Military Flying School stateside in the skies over Jackson, Mississippi.

In practice, bomber crews were able to pilot, navigate, bomb, and gun their way to certification. This included evasive maneuvering, the dropping of 100lb sand-filled "ordnance" on dummy targets at altitude, and proper management of key systems including engines. Such was the value of the AT-11 in USAAF service that some ninety-percent of all of its bomber crews were trained on the platform.©MilitaryFactory.com

Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications

Service Year

1937

Origin

United States

Status

RETIRED
Not in Service.

Crew

6

Production

1,606
UNITS

Beech - USA

(View other Aviaton-Related Manufacturers)

Netherlands; United States

(OPERATORS list includes past, present, and future operators when applicable)

✓ Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.

✓ Training (General)
Developed ability to be used as a dedicated trainer for student pilots (typically under the supervision of an instructor).

✓ Training (Basic)
Used in the aerial training role to cover basics of flight, general handling, take-off/landing actions, and related.

✓- Training (Advanced)
Dedicated advanced training platform for student pilots having graduated from basic flight training.

MULTI-ENGINE

Incorporates two or more engines, enhancing survivability and / or performance.

RUGGED AIRFRAME

Inherent ability of airframe to take considerable damage.

INTERNAL BAY

Fuselage volume includes space for internally-held weapons or special-mission equipment.

HIGH-ALTITUDE PERFORMANCE

Can reach and operate at higher altitudes than average aircraft of its time.

EXTENDED RANGE PERFORMANCE

Capability to travel considerable distances through onboard fuel stores.

BAILOUT PROCESS

Manual process of allowing its pilot and / or crew to exit in the event of an airborne emergency.

CREWSPACE PRESSURIZATION

Supports pressurization required at higher operating altitudes for crew survival.

CREW-MANAGED

Beyond a pilot, the aircraft takes advantage of additional crew specialized in specific functions aboard the aircraft.

GUN POSITIONS

Defensive gun positions for engagement / suppression.

TAIL GUN

Defensive rear-facing gun position to neutralize enemy targets emerging from the rear.

ENCLOSED CREWSPACE(S)

Features partially- or wholly-enclosed crew workspaces.

RETRACTABLE UNDERCARRIAGE

Features retracting / retractable undercarriage to preserve aerodynamic efficiency.

Length

34.1 ft
(10.40 m)

Width/Span

47.7 ft
(14.54 m)

Height

9.7 ft
(2.96 m)

Empty Wgt

5,512 lb
(2,500 kg)

MTOW

9,304 lb
(4,220 kg)

Wgt Diff

+3,792 lb
(+1,720 kg)

(Showcased structural values pertain to the AT-11 production variant)

monoplane / low-mounted / straight

Monoplane
Design utilizes a single primary wing mainplane; this represent the most popular mainplane arrangement.

Low-Mounted
Mainplanes are low-mounted along the sides of the fuselage.

Straight
The planform involves use of basic, straight mainplane members.

(Structural descriptors pertain to the AT-11 production variant)

Installed: 2 x Pratt & Whitney R-985 air-cooled radial piston engines developing 450 horsepower each and driving two-bladed propeller units in puller fashion.

Max Speed

214 mph
(345 kph | 186 kts)

Cruise Speed

149 mph
(240 kph | 130 kts)

Max. Speed Diff

+65 mph
(+105 kph | 57 kts)

Ceiling

20,013 ft
(6,100 m | 4 mi)

Range

746 mi
(1,200 km | 2,222 nm)

Rate-of-Climb

1,850 ft/min
(564 m/min)

♦ MACH Regime (Sonic)

Sub

Trans

Super

Hyper

HiHyper

ReEntry

♦

(Showcased performance specifications pertain to the AT-11 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)

OPTIONAL:
2 or 3 x 0.30 caliber Browning air-cooled machine guns on trainable / flexible mountings in dorsal turret and tail gun emplacement.

100lb sand-filled "bombs" for bombardier training.

Supported Types

Graphical image of an aircraft medium machine gun

Graphical image of an aircraft conventional drop bomb munition

(Not all ordnance types may be represented in the showcase above)

Hardpoint Mountings: 2

Mounting Points

X

-

3

-

2

-

HARDPOINT(S) KEY:

X

15

13

11

9

7

5

3

1

2

4

6

8

10

12

14

COLOR KEY:

Fuselage Centerline

Fuselage Port/Wingroot

Fuselage Starboard/Wingroot

Wing/Underwing

Wingtip Mount(s)

Internal Bay(s)

Not Used

Note: Diagram above does not take into account inline hardpoints (mounting positions seated one-behind-the-other).

AT-11 "Kansan" - Base Series Designation.

AT-11A - Navigation conversion models of existing AT-11 stock; 36 examples.
