Boeing Model 247


Passenger Airliner / Utility Aircraft [ 1933 ]



Though fewer than 100 Boeing Model 247 aircraft were manufactured, these helped to push civilian air travel in the pre-World War 2 period.



Authored By: Staff Writer | Last Edited: 10/02/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
With the explosion of civilian air travel in the 1930s, companies raced to develop airliner types to feed the demand. For Boeing, this went on to include the Model 247, an all-metal twin-engine product whcih saw a first-flight on February 8th, 1933 and service entry in May of that year. While fewer than 100 were eventually built (75), the type was notable for having surface trim tabs, de-icing boots, a retractable undercarriage, metal skinning, and autopilot mechanism. Additionally it was the first twin-engine passenger hauler to be able to operate on a single engine - all this serving to put the Model 247 wlel ahead of the pack.

Variants of the line included the base Model 247 airliner, the Model 247A with its Pratt & Whitney "Wasp" radial engines of 625 horsepower for Germany's Lufthansa (special order in 1934), the Model 247D racer, the Model 247E test bed, the Model 247Y armed military trials platform for China, and the C-73 pressed into wartime service by the United States Army Air Corps (USAAC) and United States Army Air Forces (USAAF) during World War 2.

The D-model racer was a one-off form developed exclusively for the MacRobertson Air Race. This version carried variable-pitch propeller units by Hamilton Standard which increased speed by nearly 10 miles-per-hour. This variant reached maximum speeds of 200 miles-per-hour, cruising near 190mph, ranged out to 745 miles, and reached up to 27,200 feet. Power was from 2 x PW R-1340 S1H1-G "Wasp" 9-cylinder air-cooled radial piston engines developing 500 horsepower driving two-bladed propeller units.

Beyond the United States of America, other civilian operators were Canada, the Republic of China (single example, private ownership), Colombia, and Germany. Military operators of the period became the Royal Canadian Air Force (RCAF) and Britain's Royal Air Force (RAF).©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Boeing - USA
Manufacturer(s)
United States
Operators National flag of the United States
1933
Service Year
United States
National Origin
Retired
Project Status
3
Crew
75
Units


GROUND ATTACK
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
CLOSE-AIR SUPPORT
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
TRANSPORT
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.
COMMERCIAL AVIATION
Used in roles serving the commercial aviation market, ferrying both passengers and goods over range.
VIP SERVICE
Used in the Very-Important-Person (VIP) passenger transport role, typically with above-average amenities and luxuries as standard.
X-PLANE
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


51.7 ft
(15.75 meters)
Length
74.1 ft
(22.58 meters)
Width/Span
12.1 ft
(3.70 meters)
Height
8,918 lb
(4,045 kilograms)
Empty Weight
13,658 lb
(6,195 kilograms)
Maximum Take-Off Weight
+4,740 lb
(+2,150 kg)
Weight Difference


2 x Pratt & Whitney R-1340 S1H1 "Wasp" 9-cylinder, air-cooled radial piston engine developing 500 horsepower each driving three-bladed propeller units.
Propulsion
199 mph
(320 kph | 173 knots)
Max Speed
25,262 ft
(7,700 m | 5 miles)
Ceiling
746 miles
(1,200 km | 648 nm)
Range
1,150 ft/min
(351 m/min)
Rate-of-Climb


MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


None.


Model 247 - Base Series Designation.
Model 280 - Originally-proposed form powered by 2 x Pratt & Whitney "Hornet" engines of 700 horsepower each; seating for fourteen.
Model 247A - Deutsche Lufthansa model of 1934; powered by 2 x PW Wasp engines of 625 horsepower.
Model 247D - One0ff racing platform; variable-pitch propeller units.
Model 247E - Testbed.
Model 247Y - Limited-production armed variant for military service; sole example delivered to Chinese forces; second example retained for evaluation/trials.
C-73 - USAAC/USAAF models pulled from civilian Model 247D airliner stock for service in World War 2; 27 examples procured.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for Special Forces
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Images



1 / 6

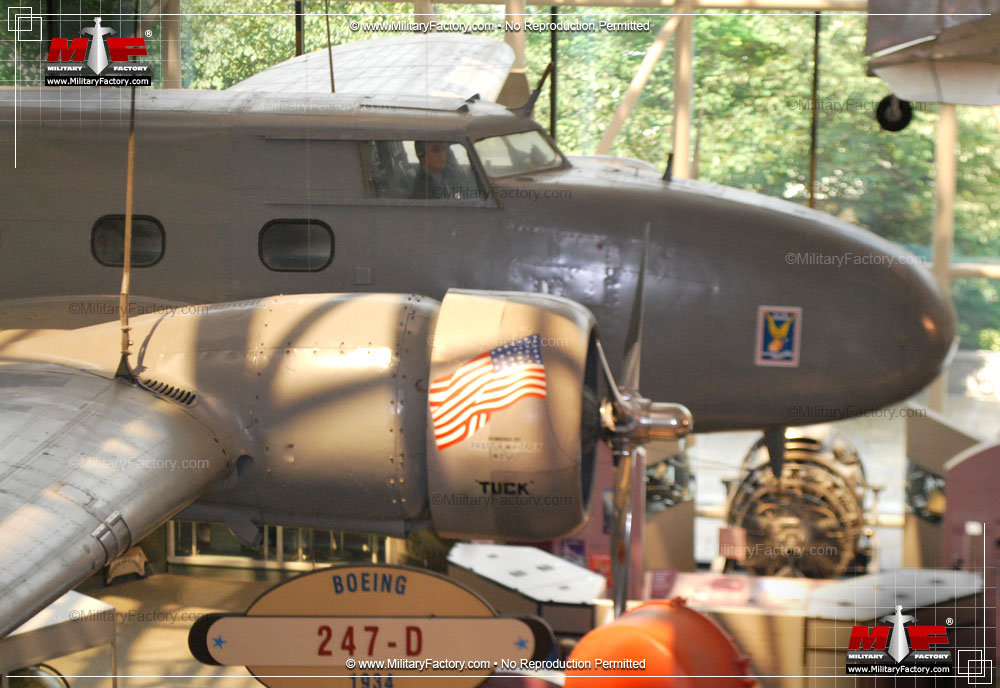

Image of the Boeing Model 247
