Naval Aircraft Factory Model B


Single-Seat, Twin-Boom Naval Fighter Proposal [ 1941 ]



The NAF Model B was a twin-boom design form following the proposed Model A to the United States Navy of the pre-World War 2 period.



Authored By: Staff Writer | Last Edited: 05/07/2020 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Naval Aircraft Factory (NAF) was established in 1918 by the United States Navy (USN) during the American involvement of World War 1 (1914-1918) to ensure the service's access to warplanes. The establishment ran throughout all of World War 2 (1939-1945) before going defunct in 1945. Before America's official involvement in the second global conflict, the service required fighters of all-modern design and eventually settled on two types, the Brewster Buffalo and the Grumman Wildcat.

However, the NAF also championed two forms of its own through the "Model A" and "Model B" (the focus of this article). The Model A relied on a conventional single-seat, single-engine arrangement and was to carry machine gun armament in its wings. The wings were of particular note for they utilized an inverted "gull-wing" form not unlike the soon-to-come Vought F4U "Corsair" naval fighter.

The Model B was a completely different approach to the USN requirement and, instead, was to rely on a twin-engine arrangement in which one was seated at the nose and the other at the end of the centralized fuselage. As a twin-boom fighter, the aircraft could house all pertinent systems in the fuselage while also carrying both engines instead of slinging the powerplants under each wing as was conventional.

The cockpit was seated just aft of the forward engine installation and a shallow bubble canopy was planned. The dorsal spine was slightly raised which defeated views to the rear (namely due to the second engine's placement and fuel stores that would be required).

The wing mainplanes were straight in their general shape with slight tapering at the trailing edges. Through each member emanated the boom structure which was joined at the rear by a shared horizontal plane. The booms were capped by rounded rudder fins.

Like the Model A, the Model B was to include a wholly-retractable, forward-thinking tricycle arrangement which made ground-running considerably safer for pilots on a carrier deck. The nose leg was positioned under and ahead of the cockpit floor with the main legs located under each tail boom assembly.

In terms of armament, the Model B was to also featured six, air-cooled / belt-fed machine guns, these buried near the wing roots.

As drawn up, the fighter was to have a running length of 40.5 feet with a wingspan reaching 46 feet. Power was to stem from 2 x Allison V-1710 liquid-cooled inline piston engines developing 1,150 horsepower each driving three-bladed propeller units in a "push-pull" configuration. Estimate performance specs included a maximum speed of 462 miles-per-hour (at over 22,000 feet altitude), a service ceiling up to 41,000 feet, and a range out to 1,315 miles.

In any event, the Model B was not selected for further work, joining its proposed Model A counterpart as nothing more than a footnote in U.S. naval aviation history.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1941

Origin
United States national flag graphic
United States

Status
CANCELLED
Development Ended.
Crew
1

Production
0
UNITS


Naval Aircraft Factory (NAF) - USA
(View other Aviaton-Related Manufacturers)
National flag of the United States United States (cancelled)
(OPERATORS list includes past, present, and future operators when applicable)
AIR-TO-AIR COMBAT
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
MARITIME / NAVY
Land-based or shipborne capability for operating over-water in various maritime-related roles while supported by allied naval surface elements.
X-PLANE
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
40.5 ft
(12.35 m)
Width/Span
46.1 ft
(14.05 m)
MTOW
10,659 lb
(4,835 kg)
(Showcased structural values pertain to the base Naval Aircraft Factory Model B production variant)
Installed: 2 x Allison V-1710 liquid-cooled inline piston engine developing 1,150 hrosepower each driving 2 x Three-bladed propeller units in "push-pull" configuration.
Max Speed
463 mph
(745 kph | 402 kts)
Ceiling
41,010 ft
(12,500 m | 8 mi)
Range
1,314 mi
(2,115 km | 1,142 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Naval Aircraft Factory Model B production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
PROPOSED:
6 x 0.50 caliber (12.7mm) Browning M2 air-cooled Heavy Machine Guns (HMGs) near wing roots (three guns to a wing).


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun


(Not all ordnance types may be represented in the showcase above)
0
Hardpoints


Model B - Base Project Designation.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Images Gallery



1 / 1

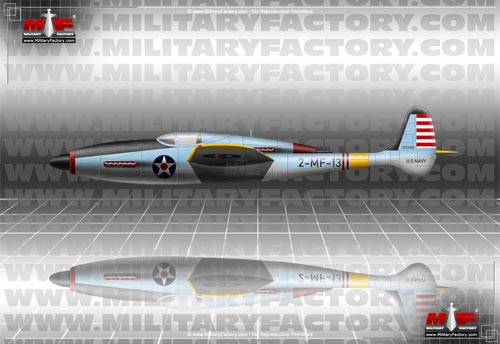

Image of the Naval Aircraft Factory Model B
