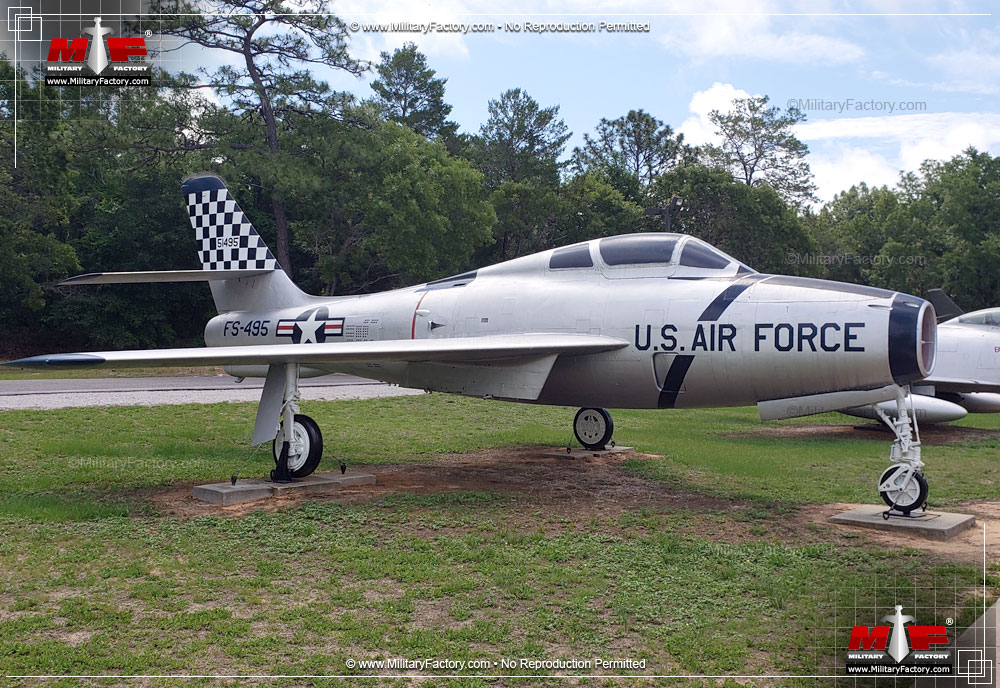

Republic F-84 Thunderstreak


Single-Seat, Single-Engine Jet-Powered Fighter (1954)


Aviation / Aerospace

1 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
2 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
3 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
4 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
5 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
6 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
7 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
8 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
9 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
10 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
11 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
12 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
13 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
14 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
15 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
16 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
17 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
18 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
19 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
20 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
21 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
22 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.
23 / 23
Image copyright www.MilitaryFactory.com; No Reproduction Permitted.

Jump-to: Specifications

The Republic F-84 Thunderstreak was an advanced swept-wing development of the earlier, straight-winged F-84 Thunderjet.



Authored By: Staff Writer | Last Edited: 05/24/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.
The original F-84 "Thunderjet" originated as a straight-winged jet-powered fighter form in 1947. However, the design, with roots in a wartime (World War 2) United States Army Air Forces (USAAF) requirement of 1944, went through a prolonged period of development, not seeing a first-flight until the war was over in 1946 and only entering service in the viable D-model form in 1949. The type was plagued by engine issues and production delays which nearly derailed this classic American entry from ever seeing service. Like the Grumman F9F "Cougar" jet fighter, the Thunderjet was another American jet-powered straight-winged aircraft to have been evolved into swept-back winged forms - this became the definitive F-84F "Thunderstreak" which, while derived from the original F-84 family line, was essentially an all-new aircraft for what eventually became the United States Air Force (USAF).

Origins of the Thunderstreak lay in work conducted during 1949 around proposal "AP-23M" which sought to develop a high performance jet-powered fighter based on the existing framework of the F-84E Thunderjet. E-models carried the Allison J35-A-17D turbojet engine and supported Rocket-Assisted Take-Off (RATO) cannisters for increased take-off performance while inboard external fuel tanks were carried for improved operational ranges. Beyond this, the airframe was lengthened by over a foot for more internal fuel as well as general streamlining of the fuselage. From this standard was generated some 843 production examples.

With the E-model as a starting point, engineers looked to advanced the design to produce a better high-speed fighter. This involved a complete reworking of the tail surfaces as well as implementation of a new swept-back wing mainplane (given 40-degrees sweepback). Very little, if any, commonality was eventually had with the earlier F-84s and a little more than half of the existing Republic Aviation production equipment could be reused.

With its Allison J35-A-25 turbojet engine of 5,300lb thrust output, the prototype "YF-96A" flew for the first time on June 3rd, 1950 - built from an F-84G (51-1345) production model. The designation was then updated to become "YF-84F" joined by the name "Thunderstreak" before the end of the year. Two more aircraft were then added to the program with the first carrying the dimensionally-larger British-originated Armstrong Siddeley "Sapphire" turbojet engine. Due to its size, the fuselage was modified to accept the Sapphire and a deeper air intake at the nose was introduced. In this guise, the aircraft flew for the first time on February 14th, 1951.

The second of the two went down a much more drastic development road, having a complete assembly added over the nose intake and the intake now split into twin triangular-shaped openings at either wing root. In this form, the aircraft's thrust output tested poorly and was ultimately rejected by USAF authorities as a frontline fighter. However, it was revisited as the YF-84F/YRF-84F to become a dedicated tactical reconnaissance aircraft (the nose section housing camera equipment). In service, this aircraft became the RF-84F "Thunderflash" (detailed elsewhere on this site).

The British Sapphire engine was then adopted for local licensed production as the "Wright J65" and its developmental form, the YJ65-W-1 engine of 7,220lb thrust, assisted its prototype airframe during a first-flight recorded on November 22nd, 1952.

All of this then led to the formal adoption of the "F-84" as the "Thunderstreak" in USAF service and this was followed by 3,482 total units (with General Motors chipping in 237 units of this total). The aircraft was nicknamed as "Super Hog" due to the earlier F-84A being named "Hog". The initial 275 F-model aircraft were equipped with the J65-W-1 turbojet engine and then followed 100 more F-models with the J65-W-1A series powerplant. The J65-W-3 then followed both into production.
Standard armament for the fighter became the American staple of 6 x 0.50 caliber (12.7mm) Browning M3 Heavy Machine Guns (HMGs) and all were installed at the upper nose section. In addition to this, the little fighter could carry upwards of 6,000lb of ordnance, mainly in the form of mainly rockets and conventional drop bombs under the wings. Fuel tanks could be affixed at each wing root for increased operational ranges as needed.

The first F-84F Thunderstreak was taken into American service on December 3rd, 1952 but, like other Thunderjet / Thunderstreaks before them, the type suffered from several issues including handling. An "all-moving" tail was introduced to help with controlling and items like this are what delayed the formal introduction of the F-models until 1954.

As built, the F-84F held a single crewman under a lightly framed canopy aft of the nose intake. Overall length of the airframe reached 43.4 feet with a wingspan of 33.7 feet and a height of 14.4 feet. Empty weight was near-14,000lb against an MTOW of 28,000lb. Maximum speed was 695 miles-per-hour with a range out to 810 miles (twin drop tanks fitted), a service ceiling of 46,000 feet (requiring cockpit pressurization), and a rate-of-climb equal to 8,200 feet-per-minute.

Beyond its major global operator being the USAF, the primary recipient of the new jet-powered fighter became many of America's NATO allies in Europe. This included the Belgian, West German, and Netherlands air forces which began receiving the type as soon as the early part of 1955 (about 852 of the total Thunderstreak production lot found their way to NATO forces in Europe). The final Thunderstreak was delivered during August of 1957. After their usefulness had expired, ex-West German F-84s were sold off to allies Greece and Turkey while the USAF sent their own expiring stock to recipients in Europe and, more locally, to the Air National Guard (ANG). The latter received their Thunderstreaks beginning in July of 1964 and operated them into November of 1971.

Beyond this, the F-84F line produced a pair of XF-84H prototypes fitted with Allison XT40-A-1 turboprop engines and tested under the name of "Thunderscreech" - though these prototypes were not advanced. The YF-84J mark, of which two were built to the standard, were given enlarged nose intakes for better airflow to their General Electric J73 turbojet engine. Flown to a speed of Mach 1.09 on April 7th, 1954, this F-84F potential production standard aircraft was also not advanced.

Beyond the stated operators of the Thunderstreak line, customers also included Denmark, France, Italy, Norway, and Taiwan. Italy flew their Thunderstreaks into 1974. A number of the aircraft remain preserved all over the world at various indoor and outdoor displays - with most survivors located in the United States.

Specifications



Service Year
1954

Origin
United States national flag graphic
United States

Status
RETIRED
Not in Service.
Crew
1

Production
3,428
UNITS


Republic Aviation - USA
National flag of Belgium National flag of Denmark National flag of France National flag of modern Germany National flag of Greece National flag of Italy National flag of the Netherlands National flag of Norway National flag of Taiwan National flag of Turkey Belgium; Denmark; France; West Germany; Greece; Italy; Netherlands; Norway; Taiwan; Turkey; Untied States
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
43.4 ft
(13.23 m)
Width/Span
33.6 ft
(10.25 m)
Height
14.4 ft
(4.40 m)
Empty Wgt
11,464 lb
(5,200 kg)
MTOW
27,999 lb
(12,700 kg)
Wgt Diff
+16,535 lb
(+7,500 kg)
(Showcased structural values pertain to the Republic F-84F Thunderstreak production variant)
Installed: 1 x Wright J65-W-3 turbojet engine developing 7,220lb of thrust.
Max Speed
696 mph
(1,120 kph | 605 kts)
Ceiling
45,932 ft
(14,000 m | 9 mi)
Range
811 mi
(1,305 km | 2,417 nm)
Rate-of-Climb
8,200 ft/min
(2,499 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Republic F-84F Thunderstreak production variant. Compare this aircraft entry against any other in our database. View aircraft by powerplant type)
STANDARD, FIXED:
6 x 0.50 caliber (12.7mm) Browning M3 air-cooled machine guns in upper nose section.

OPTIONAL:
Up to 6,000lb of externally-held stores including conventional drop bombs, aerial rockets, and 1 x Mark 7 nuclear bomb.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft heavy machine gun
Graphical image of aircraft aerial rockets
Graphical image of an aircraft conventional drop bomb munition
Graphical image of an air-launched nuclear weapon


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 2


F-84 "Thunderstreak" - Base Series Designation.
YF-84F - Prototype aircraft; three completed (third with wing-root-mounted intakes, becoming the YRF-84 reconnaissance form.
F-84F - Definitive F-model production form; 2,711 examples completed.
GRF-84F - RF-84F reconnaissance models converted for the FICON parasite fighter / mothership program role; becoming RF-84K.
RF-84F "Thunderflash" - Dedicated reconnaissance variant with camera-equipped nose section and wing root intakes.
RF-84K FICON - Redesignation of GRF-84F models.
XF-84H "Thunderscreech" - F-models used as experimental platforms; Allison XT40-A-1 turboprop engine of 5,850 horsepower fitted; two examples converted.
YF-84J - F-model aircraft as prototypes; fitted with General Electric J73 turbojet engine; larger nose intake; two examples modified.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Similar Aircraft



Aviation developments of similar form and function, or related to, the Republic F-84 Thunderstreak...
