AVX Joint Multi-Role (JMR)


Compound Military Transport Helicopter Proposal (2024)


Aviation / Aerospace

1 / 1

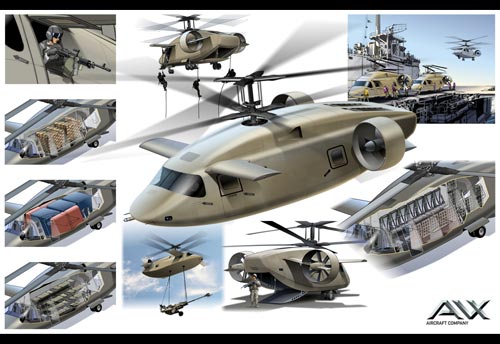

Image from official AVX Aircraft Company press release materials.

Jump-to: Specifications

The AVX Joint Multi-Role platform is aimed at the United States military and combines the benefits of tilting ducted fans with coaxial main rotor assemblies.



Authored By: Staff Writer | Last Edited: 04/24/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.
The Future Vertical Lift (FVL) program (formerly known as the Joint Multi-Role - 'JMR' - program) is an ongoing United States military initiative to develop a complete line of related helicopters in the hopes of succeeded several high-profile - though aging - types such as the Boeing AH-64 "Apache" attack helicopter, the Bell OH-58 "Kiowa" light-class scout, the venerable Sikorsky UH-60 "Black Hawk" transport, the Boeing CH-47 "Chinook" tandem-rotor heavy-hauler. The program is highly optimistic but would completely rewrite American military rotor capabilities for most of the current century and has gained the interest of several high- and low-profile rotorcraft industry players.

AVX Aircraft Company , headquartered in Benbrook, Texas, is championing their "JMR" (Joint Multi-Role) platform for general troop / cargo transport and assault duties. The aircraft sports a streamlined fuselage that is tapered at both ends, fitting the two-crew (side-by-side seating) over a short nose assembly at front with a two-piece powered loading door at rear. Lift is achieved by way of 2 x Four-bladed main rotor units seated co-axially (one atop the other) over the fuselage and this arrangement (proving popular with many Russian Kamov helicopters) inherently cancels out torque effects of either unit - effectively negating the need for a dedicated tail rotor unit. In addition to this, the aircraft sports ducted-fans installed along the aft sides of the fuselage to provide additional forward propulsion (therefore the product is described as a "compound" helicopter). Wing stubs are positioned just over the cockpit and at each ducted fan unit for the needed horizontal flight controlling. A multi-wheeled, retractable undercarriage is planned for the aircraft.

The standard operating crew is projected to be two pilots in addition to a pair of Crew Chiefs.

The JMR can support pintle-mounted 7.62mm Medium Machine Guns (MMGs) or similar at window positions for point-suppression at landing zones (to be managed by the Crew Chiefs). Troopers can exit the hovering aircraft (via rope) from the rear-mounted loading ramp or side doors. The hold is slated to support two complete cargo palettes, up to twelve medical litters and accompanying staff, or seat fourteen combat-ready infantry along two banks of seven seats (personnel being seated face-to-face). Additionally, an external sling load up to 13,000lb can be hauled.

The JMR has also been drawn up in an attack configuration, armed through rocket pods, Anti-Tank Guided Missiles (ATGMs), and a large-caliber trainable autocannon. These appear to be managed through a retracting feature across the belly of the aircraft with four points reserved for air-launched munitions and a single point for the swiveling autocannon.

Key marketing features of the JMR include exceptional speed and range (compared to traditional helicopter designs of same class), very compact design for improved storage onboard carriers and the like, an in-built multi-role / multi-mission capability to come from a single airframe, inherently excellent low-speed maneuverability, ease of embarking / disembarking troops and cargo loads via the twin cargo doors at rear (and side doors), and broad support for in-service American military weapon and operating systems.

Currently (April 2019), the JMR is showcased with an empty weight of 18,2000lb and a MTOW of 28,000lb, a maximum speed of 236 knots, and a range out to 2,100 nautical miles.

Specifications



Service Year
2024

Origin
United States national flag graphic
United States

Status
IN-DEVELOPMENT
Program in Progress.
Crew
4

Production
0
UNITS


AVX Aircraft Company - USA
National flag of the United States United States (possible)
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Special-Mission: MEDical EVACuation (MEDEVAC)
Extraction of wounded combat or civilian elements by way of specialized onboard equipment and available internal volume or external carrying capability.
Special-Mission: Search & Rescue (SAR)
Ability to locate and extract personnel from areas of potential harm or peril (i.e. downed airmen in the sea).
Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Empty Wgt
18,199 lb
(8,255 kg)
MTOW
27,999 lb
(12,700 kg)
Wgt Diff
+9,800 lb
(+4,445 kg)
(Showcased structural values pertain to the base AVX Joint Multi-Role (JMR) production variant)
Installed: 2 x Turboshaft engines of unknown make, model, and output power driving 2 x Four-bladed main rotors arranged co-axially over the fuselage; 2 x Ducted-fans for additional forward thrust.
Max Speed
273 mph
(440 kph | 238 kts)
Range
1,501 mi
(2,415 km | 4,473 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base AVX Joint Multi-Role (JMR) production variant. Compare this aircraft entry against any other in our database. View aircraft by powerplant type)
OPTIONAL, PROPOSED:
2 x 7.62mm Medium Machine Guns (MMGs) on pintle mounts at side windows (one gun to a fuselage side).

GUNSHIP, PROPOSED:
1 x 20mm/25mm Autocannon in swiveling mounting (installed ventrally).
8 x Anti-Tank Guided Missiles (ATGMs) at retractable ventral mounting.
2 x 19-shot Rocket Pods at retractable ventral mounting.

MISSION LOAD:
9,800 useful mission load (cargo, troops, medical litters). Up to 13,000lb external sling load capacity.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft automatic cannon
Graphical image of an aircraft anti-tank guided missile
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


Joint Multi-Role (JMR) - Base U.S. Military Project Designation.
Future Vertical Lift (FVL) - Updated U.S. Military program designation.
