AREA-I (NASA) PTERA


Unmanned Sub-Scale Wing Morphing Test Aircraft [ 2015 ]



The AREA-I PTERA subscale unmanned platform is being actively used by NASA to test wing morphing capabilities in-flight.



Authored By: Staff Writer | Last Edited: 11/03/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The PTERA is being used by the experts at NASA as a remotely-piloted research platform mimicking the form and function of a sub-scale Boeing 737 airliner. It is being used to test the validity of NASA's own "Spanwise Adaptive Wing" (SAW) which allows the wing mainplanes to "morph" at their outboard sections (15 inches out) up or down some 75-degrees. The purpose of this action is to improve control and stability while reducing drag caused by other components of an aircraft's design - namely the tail planes. Such sub-scale designs allow for more realistic testing between potentially lethal manned flights and expensive wind tunnel data-collection. The aircraft was constructed by Area-I, Incorporated.

PTERA underwent flight-testing during July 2013 and was delivered to the Armstrong Flight Research Center at Edwards AFB in California during October of 2014. Its first official flight was recorded on October 22nd, 2015 and all initial mission objectives were met including reaching a maximum speed of 145 knots.

Externally the aircraft certainly looks the part of a Boeing airliner with its tubular fuselage, short nosecone and single-finned tail unit. A fixed, tricycle landing gear arrangement provides the ground-running capability. The wing mainplanes are seated at midships and are not given sweepback of any kind. The horizontal planes at the tail are positioned low along the sides of the vertical fin. Various sensors and data-collecting systems are installed about the aircraft, identified by the various protrusions seen in its profile. The fuselage is designed as modular to more easily accept changes to its load out.

Power is from 2 x JetCat P200 engines offering 50lb of thrust each and these are fitted under each wing (as in Boeing 737 airliner).©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

September 2018 - On September 25th, 2018, the PTERA crashed and was destroyed during its post-landing roll. The crash occurred in clear weather at Armstrong Flight Research Center. An investigation is ongoing as to the cause.

Advertisements

Specifications



Service Year
2015

Origin
United States national flag graphic
United States

Status
ACTIVE
In Active Service.
Crew
0
UNMANNED
Production
2
UNITS


AREA-I, Incorporated / NASA - USA
(View other Aviaton-Related Manufacturers)
National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.
Unmanned Capability
Aircraft inherently designed (or later developed) with an unmanned capability to cover a variety of over-battlefield roles.


Width/Span
14.7 ft
(4.47 m)
(Showcased structural values pertain to the base AREA-I (NASA) PTERA production variant)
monoplane / low-mounted / straight
Monoplane
Design utilizes a single primary wing mainplane; this represent the most popular mainplane arrangement.
Low-Mounted
Mainplanes are low-mounted along the sides of the fuselage.
Straight
The planform involves use of basic, straight mainplane members.
(Structural descriptors pertain to the base AREA-I (NASA) PTERA production variant)
Installed: 2 x JetCat P200 engines developing 50lb of thrust each unit.
Max Speed
168 mph
(270 kph | 146 kts)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base AREA-I (NASA) PTERA production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None.


Supported Types




(Not all ordnance types may be represented in the showcase above)
PTERA - Base Series Name.


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
14
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 200mph
Lo: 100mph
This entry's maximum listed speed (168mph).

Graph average of 150 miles-per-hour.
Aviation Era Span
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (2)
2
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 3

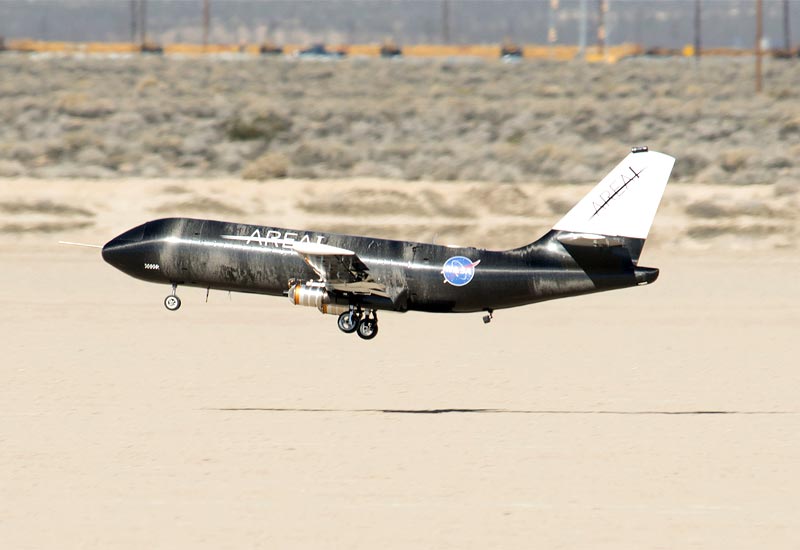

Image of the AREA-I (NASA) PTERA
Official image from public release.
2 / 3

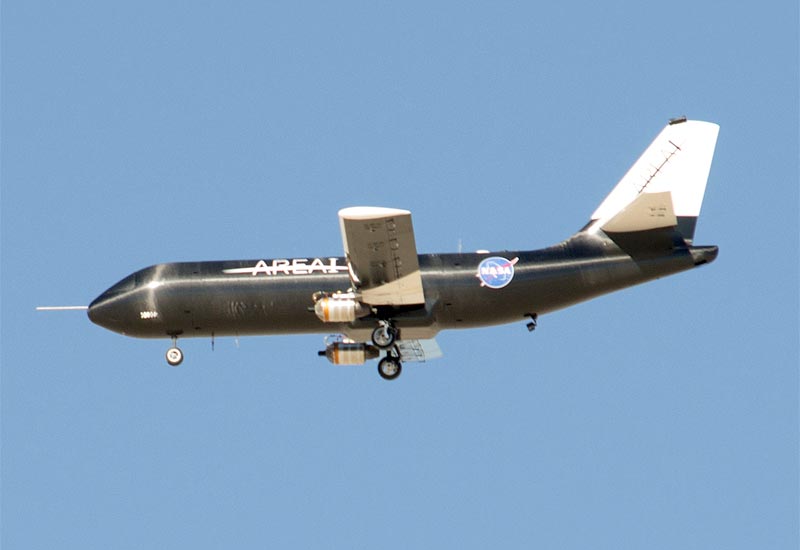

Image of the AREA-I (NASA) PTERA
Official image from public release.
3 / 3
Image of the AREA-I (NASA) PTERA
Official image from public release.
