Antonov An-132

Twin-Engine Light Transport Aircraft [ 2021 ]

The Antonov An-132 is in-development as an improved form of the earlier An-32 series model.

Authored By: Staff Writer | Last Edited: 08/01/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

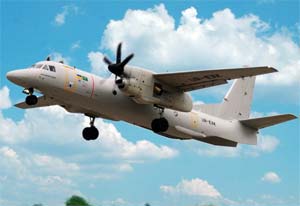

Image from official Antonov marketing material.

GO TO SPECIFICATIONS [+]

Advertisements

The An-132 is a joint-development effort between Antonov of Ukraine and Taqnia Aeronautics and King Abdulaziz City for Science and Technology (KACST) of Saudi Arabia. At its core, the aircraft is a majorly upgraded version of the Antonov An-32 high-winged, twin-engined light transport which first flew in 1976. Currently under development, the An-132 has gone on to record its own first-flight in 2017. The Royal Saudi Air Force has six of these aircraft currently on order and these are set to be assembled locally as the "An-132D". As many as eighty An0132 aircraft are envisioned by the oil-producing powerhouse.

The An-132 benefits from Antonov's long and successful foray into the light fixed-wing transport aircraft market. It borrows the form and function of the preceding An-32 design but truly only carries over the rear-based loading ramp - all other components of the aircraft are new. The An-132 relies on a high-winged, twin-engine configuration allowing for strong inherent lift principles and excellent ground clearance of the spinning propeller blades. The wings are mounted atop the tubular fuselage just ahead of midships. The flight deck, with its large windows, offers good vision out-of-the-cockpit and over the nose. The tail unit is raised to allow for clearance to the loading ramp and is capped by a single vertical stabilizer and low-set horizontal stabilizers. The undercarriage is of a tricycle arrangement and fully retractable.

Dimensions included a length of 80.5 feet, a wingspan of 95.9 feet and a height of 28.9 feet. Maximum Take-Off Weight (MTOW) is 62,832lb.

Internally there is space for up to 20,300lb of paletted cargo or up to 75 combat-ready troops. Up to 27 medical litters can be carried for the MEDEVAC role. The crew numbers two pilots and a loadmaster. The cockpit sports a Honeywell Primus Epic 2.0 series avionics fit. Unlike previous Antonov aircraft iterations, the An-132 is a truly Western-centric offering.

Power for the aircraft is from 2 x Pratt & Whitney Canada PW150 turboprop engines. These output 5,071 horsepower each and drive Dowty R408 six-bladed propeller units. Performance includes a cruising speed of 345 miles per hour, a range out to 2,735 miles and a service ceiling of 30,000 feet. The aircraft is more powerful and features greater payload capability than the preceding An-32 marks. Improved "hot and high" performance is a staple of the design.

Beyond its intended transport roles, the An-132 is being marketed for other special mission endeavors including maritime patrol, fire-fighting, Search and Rescue (SAR) and Electronic Warfare (EW).©MilitaryFactory.com

Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

December 2016 - On March 31st, 2017 an An-132D prototype was rolled out for public consumption. A first-flight is planned for 2017 with deliveries tentatively scheduled for 2018. Saudi Arabia represents the launch customer.

March 2017 - On march 31st 2017, a prototype An-132D aircraft took to the skies for the first time. Powered by Pratt & Whitney Canada turboprop engines, the flight originated from the Antonov location in Kiev, Ukraine. A second aircraft is planned as truer pre-series representation.

June 2017 - The Antonov An-132 was showcased at the 2017 Paris Air Show.

November 2017 - At Dubai Air Show 2017, Taqnia Aeronautics announced a partnership with other Saudi companies to produce the An-132 locally as well as the Sikorsky UH-60 Black Hawk helicopter and the Chinese CH-5 Unmanned Aerial Vehicle (UAV). This is one move in the broaden "Vision 2030" initiative by Saudi Arabia to move the economy away from its reliance on oil. The Royal Saudi Air Force is committed to purchasing thirty An-132 aircraft.

April 2019 - Announced April 29th, 2019, Ukraine has suspended its joint partnership with the Saudi Kingdom to bring the new An-132 to market. Instead, it will move forward with a new partner in the venture, the primary reason believed to be Saudi Arabia's growing friendship with Ukrainian adversary Russia.

Specifications

Service Year

2021

Origin

Ukraine

Status

IN-DEVELOPMENT
Program in Progress.

Crew

3

Production

1
UNITS

Antonov - Ukraine

(View other Aviaton-Related Manufacturers)

Ukraine (possible)

(OPERATORS list includes past, present, and future operators when applicable)

✓ Special-Mission: Search & Rescue (SAR)
Ability to locate and extract personnel from areas of potential harm or peril (i.e. downed airmen in the sea).

✓ Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.

✓ Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.

Installed: 2 x Pratt & Whitney Canada PW150A turboprop engines of unknown power output driving six-bladed propeller units.

(Showcased performance specifications pertain to the base Antonov An-132 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)

None.

Supported Types

(Not all ordnance types may be represented in the showcase above)

An-132 - Base Series Designation

An-132D - Initial production model
