Bristol Jupiter


Biplane Fighter Prototype / Advanced Trainer Aircraft [ 1924 ]



A mating of the Bristol F.2B biplane fighter with the Bristol Jupiter engine resulted in the short-lived Bristol Jupiter advanced trainer platform.



Authored By: Staff Writer | Last Edited: 02/14/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Bristol F.2 biplane fighter of World War 1 (1914-1918) was combined with a Bristol "Jupiter" series engine to produce the Bristol Jupiter design of 1924. The original form appeared back in 1916 and was produced across 5,329 total examples and served with the Royal Flying Corps and Polish Air Force among others. The move to the Jupiter powerplant was an attempt by Bristol Aeroplane to produce a speedier biplane fighter without requiring a completely new design - however it proved rather underwhelming in the intended role and only 26 of the type were produced in all. The aircraft was therefore relegated to the advanced trainer role in British service and served for a time with the Swedish Air Force as well - making Sweden the only foreign operator.

The design was set around the Jupiter IV series engine of 425 horsepower output. The prototype was born from the existing F.2 post-war aircraft stock to which three examples were pulled aside for modification. The first form became Type 76 which recorded its first flight during June of 1923 and this was followed by Type 76A which installed a bi-fuel Jupiter engine. The first prototype crashed in November following an engine failure at high altitude. Type 76B marked the third prototype which was purchased, evaluated and flown by the Swedish Air Force. This variant recorded its first-flight in 1924 and managed a career into 1935.

When the Type 76 failed to showcase itself as a viable fighter mount (it lacked the range and performance required), thought was given to progressing the nearly finalized design as a dual-control, twin-seat advanced biplane trainer. This led to development of the Type 89 from the earlier Type 76A offering and nine production models followed before the switch was made to the Type 89A mark - a modified version with revised fuselage construction. Fifteen of this model were produced.

As trainers for the British, the Type 89 flew into 1933 before being given up.

Structurally, the aircraft exhibited a length of 25 feet with a wingspan of 39.2 feet and height of 9 feet. Empty weight was 2,325lb against a MTOW of 3,250lb.

Performance-wise, the biplane (Type 89) could make speeds of 110 miles per hour, cruise around 95 miles per hour and reach out to ranges of 340 miles. Its listed service ceiling was 22,150 feet. The Bristol Jupiter IV engine was a 9-cylinder, single row radial unit outputting 320 horsepower.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1924

Origin
United Kingdom national flag graphic
United Kingdom

Crew
2

Production
26
UNITS


Bristol Aeroplane Company - United Kingdom
(View other Aviaton-Related Manufacturers)
National flag of Sweden National flag of the United Kingdom Sweden; United Kingdom
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.
Training (General)
Developed ability to be used as a dedicated trainer for student pilots (typically under the supervision of an instructor).


Length
25.0 ft
(7.62 m)
Width/Span
39.3 ft
(11.97 m)
Height
9.0 ft
(2.75 m)
Empty Wgt
2,337 lb
(1,060 kg)
MTOW
3,263 lb
(1,480 kg)
Wgt Diff
+926 lb
(+420 kg)
(Showcased structural values pertain to the Bristol Type 89 (Jupiter) production variant)
biplane / over-under / straight
Biplane
Design utilizes a dual-plane wing arrangement in which one mainplane member is seated above the other; biplanes enhance agility at the expense of added drag.
Over-Under
Dual mainplane configuration seating the members in an over-under fashion and poisitoned at different points along the fuselage.
Straight
The planform involves use of basic, straight mainplane members.
(Structural descriptors pertain to the Bristol Type 89 (Jupiter) production variant)
Installed: 1 x Bristol Jupiter IV 9-cylinder air-cooled radial piston engine of 320 horsepower driving a two-bladed propeller unit at the nose.
Max Speed
110 mph
(177 kph | 96 kts)
Ceiling
22,146 ft
(6,750 m | 4 mi)
Range
360 mi
(580 km | 1,074 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Bristol Type 89 (Jupiter) production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None.


Supported Types




(Not all ordnance types may be represented in the showcase above)
"Jupiter" - Base Series Name
Type 76 - Original prototype; single example completed.
Type 76A - Prototype with bi-fuel Jupiter engine installation; becoming Type 89 design.
Type 76B ("Swedish Fighter") - Evaluation fighter for Swedish Air Force usage; single example.
Type 89 - Twin-seat, dual-control trainer variant; nine examples built based on Type 76A.
Type 89A - Revised fuselage construction; fifteen examples completed.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

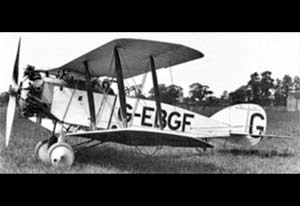

Image of the Bristol Jupiter
