IOMAX Archangel

Counter-Insurgency Attack Aircraft [ 2017 ]

The IOMAX Archangel counter-insurgency platform is built upon the successful Thrush S2R-660 agricultural industry aircraft

Authored By: Staff Writer | Last Edited: 04/09/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

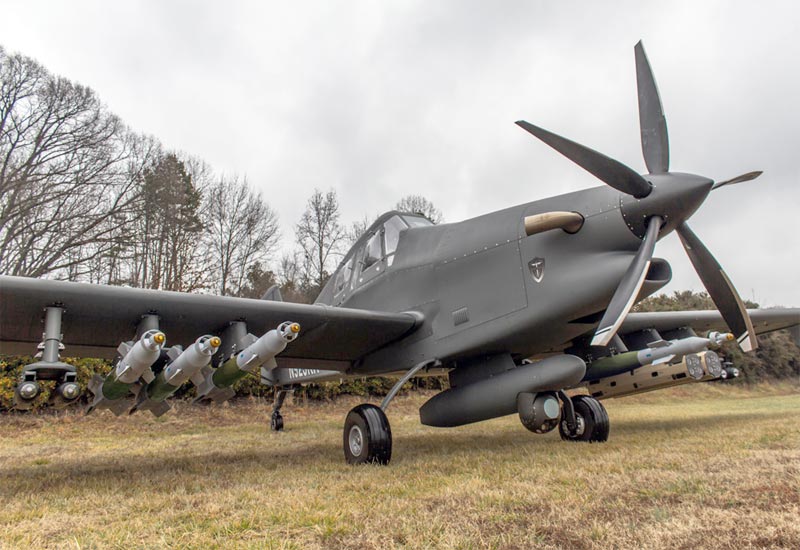

Image from official Iomax marketing material.

GO TO SPECIFICATIONS [+]

Advertisements

Because of ongoing - and growing insurgencies - worldwide, there remains a market for counter-insurgency aircraft. These rugged, purpose-build systems rely on a bevy of weapon loadouts, long loitering times and strong communications with forward-operating elements to achieve mission success. Such close-support weapon systems have proven their worth in wars in Columbia, Iraq and Afghanistan and remain a desired over-battlefield element for both large and small world military powers alike.

IOMAX of the United States has, therefore, developed a new counter-insurgency platform under the "Archangel" name. This aircraft is based on the Thrush 710P series aircraft used for crop-dusting in the agricultural sector. As such, the Archangel comes with straight wing mainplanes and inherently strong low-altitude handling characteristics. It is a direct development of the AirTractor AT-802 "Border Patrol Aircraft" also developed by IOMAX USA of North Carolina. This particular product was taken on by the United Arab Emirates for border security duties beginning in 2011.

The Archangel carries over the excellent qualities of the 710P and AT-802 lines but is given larger wings and a more powerful Pratt & Whitney PT6A-67F turboprop engine of 1,600 horsepower driving a five-bladed propeller unit in the nose. Survivability for the crew of two (seated in tandem) has been further increased as has been situational awareness to incoming threats such as missiles. The aircraft sports a mission endurance window of over ten hours allowing it to loiter over contested spaces for some time. The wheeled undercarriage (tail-dragger) is fixed during flight which does away with some of the added complexity and maintenance requirements of a retractable arrangement.

Along its fuselage centerline, the aircraft showcases the "Iomax Flexbile Pod" housing a Wescam MX-15D series electro-optical camera system and Rover data-link allowing direct communications with elements on the ground. The centerline pod offers full High-Definition quality in 1080p as well as laser designation of targets, an SWIR band sensor and 120x zoom capability.©MilitaryFactory.com

Advertisements

Internally, the cockpit is all-modern with digital processing and three large Multi-Function Displays (MFDs) in the front cockpit and two in the rear cockpit. The avionics fit is the Esterline CMC Electronics Cockpit 4000 series which is common across some training platforms in circulation already. The twin cockpits are set up with dual-control schemes making it possible for either airman to control the aircraft. Night vision is supported in both cockpits as is Head-Up Displays (HUDs) and Hands-On-Throttle-And-Stick (HOTAS).

The Archangel has six total underwing hardpoints (three to a wing) and can carry precision-guided weaponry including missiles and bombs as well as more traditional rocket pods and gun pods. Dual-rail launchers increase lethality as the platform is cleared to carry up to forty-eight CIRIT Roketsan laser-guided missiles, twelve Hellfire missiles or ten GBU-58 (MK-81) Laser-Guided Bombs (LGBs) or six GBU-12 (MK-82) LGBs.

Beyond its given counter-insurgency role, the Archangel is being marketed to cover various other service roles including border security, counter-terrorism, anti-piracy and anti-smuggling. It has found its launch customer in the United Arab Emirates (UAE) - a fleet of twenty-four aircraft will succeed the AT-802 aircraft in service.

May 2017 - Egypt has put in a request for 12 IOMAX Archangel aircraft with the United States government. These aircraft will strengthen its border patrol arm if the request is approved.

November 2017 - The IOMAX Archangel Block 2 aircraft was debuted at the Dubai Air Show. An L-3 Wescam MX-25 electro-optical camera unit is showcased in the chin position of the fuselage.©MilitaryFactory.com

Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications

Service Year

2017

Origin

United States

Status

IN-DEVELOPMENT
Program in Progress.

Crew

2

Production

30
UNITS

Iomax USA, Incorporated - United States

(View other Aviaton-Related Manufacturers)

National flag of the United Arab Emirates

Egypt; Jordan; United Arab Emirates

(OPERATORS list includes past, present, and future operators when applicable)

✓ Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.

✓ Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.

✓ Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.

Empty Wgt

9,259 lb
(4,200 kg)

MTOW

14,804 lb
(6,715 kg)

Wgt Diff

+5,545 lb
(+2,515 kg)

(Showcased structural values pertain to the base IOMAX Archangel production variant)

Installed: 1 x Pratt & Whitney PT6A-67F turbo-prop engine developing 1,600 horsepower driving five-bladed propeller unit at nose.

Max Speed

242 mph
(389 kph | 210 kts)

Ceiling

25,000 ft
(7,620 m | 5 mi)

Range

1,553 mi
(2,500 km | 4,630 nm)

♦ MACH Regime (Sonic)

Sub

Trans

Super

Hyper

HiHyper

ReEntry

♦

(Showcased performance specifications pertain to the base IOMAX Archangel production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)

Various munitions including air-to-surface missiles, anti-tank Hellfire missiles (Hellfire), gun pods, cannon pods, guided bombs, unguided bombs, and rocket pods spread across six underwing hardpoints (three per wing). Mission sensors and pods also supported.

Supported Types

Graphical image of an aircraft automatic cannon

Graphical image of an aircraft machine gun pod

Graphical image of an aircraft cannon pod

Graphical image of an aircraft air-to-surface missile

Graphical image of an aircraft anti-tank guided missile

Graphical image of aircraft aerial rockets

Graphical image of an aircraft rocket pod

Graphical image of an aircraft conventional drop bomb munition

Graphical image of an aircraft guided bomb munition

(Not all ordnance types may be represented in the showcase above)

Hardpoint Mountings: 6

Archangel - Base Product Designation

Archangel Block 1 - Initial batch model

Archangel "Border Patrol Aircraft" (BPA) - Outfitted for border patrol work.

Archangel Block 2 - Electro-optical camera system fitted under the fuselage; other subtle changes instituted.
