Bell Model 407


Light Utility Helicopter (LUH) [ 1996 ]



The Bell Model 407 was born from the Bell 206 family line and has itself evolved into more potent military forms.



Authored By: Staff Writer | Last Edited: 08/21/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Bell Model 407 is a four-bladed main rotor version of the successful Bell Model 206 (Model 206L-4) and saw its first-flight recorded on June 29th, 1995. Service introduction occurred in 1996 and the type continues in service today (2017) across various environments, both military and civilian. Military operators of the Model 407 include El Salvador (Air Force), Iraq (Air Force), Jamaica (Army) and the United Arab Emirates (Air Force). Civilian, governmental and special industry market operators also exist. First deliveries of the Model 407 were in February 1996 and the design went on to spawn the Bell Model 427 (since replaced by the Model 429) and Northrop Grumman MQ-8C "Fire Scout" UAV (under development, detailed elsewhere on this site).

Work on a new light utility helicopter by Bell commenced in the early 1990s as the company sought a successor to its long-running, and well-liked, Model 206 series (originally developed to a U.S. Army specification). With a Model 206 modified to serve as the technology demonstrator, the Model 407 was born and two prototypes were used in the trials process which incorporated the composite four-bladed main rotor assembly featured on the OH-58D "Kiowa" military helicopter. The Allison 250-C47 was selected to power the new design.

Serial production began in 1995 and around 1,100 units have been built to date (2017) at a cost of about $2.5 million per unit.

The Bell Model 407 requires a single pilot for basic operation. A typical seating arrangement allows for seven total persons to be carried aloft. The aircraft can also carry external underslung loads up to 2,645lb. Dimensions include a length of 41.7 feet, a rotor diameter of 35 feet and a height of 11.7 feet. Empty weight is 2,670lb with an MTOW of 6,000lb listed.

Power is from a single Allison 250-C47B turboshaft engine developing 813 horsepower while driving a four-bladed main rotor assembly overhead and a two-bladed tail rotor assembly aft. Performance includes a maximum speed of 140 knots, a cruise speed of 133 knots and a range out to 324 nautical miles. Its service ceiling reaches 18,700 feet.

Externally, the Model 407 carries the smooth, clean lines of the Model 206 before it. The cockpit sports large windows for excellent vision by the pilot(s). The engine sits over the passenger cabin section which features side-mounted hinged access doors. The tail unit (of composite construction) is elevated to help the tail rotor clear the ground. Small vertical fins are set on short horizontal planes at the tail section's midway point. At the extreme end of the tail is a vertical dorsal and ventral fin. The tail rotor is mounted to face the portside of the aircraft. The Model 407 makes use of a simple four-point landing skid arrangement.

Variants in Model 407 line include the Model 417, the Model 407 LOH, the Eagle Model 407 HP, the Model 407AH, the Model 407GX, the Model 407GT and the Model 407GXP. The Model 417 was the civilian version of the planned ARH-70 (detailed below) while the Model 407 LOH ("Light Observation Helicopter") was a militarized reconnaissance version. The Eagle 407 HP was developed for Eagle Copter of Canada and fitted the Honeywell HTS900 series engine of 1,021 horsepower output. The Model 407AH became a specialized armed model for government-level forces. The Model 407GX was given an all-digital cockpit featuring a new avionics set. The Model 407GT was the armed variant of the GX. The Model 407 GXP became an improved-performance version of the Model 407GX with an improved control scheme.

The ARH-70 "Arapahoe", a new lightweight, armed military helicopter developed for the United States Army during the 2000s, was based in the Model 407. However, the project was later cancelled in October of 2008. This helicopter is detailed elsewhere on this site.

The Bell Model 407 also makes up the Northrop Grumman MQ-8C "Fire Scout" rotary-wing Unmanned Aerial Vehicle (UAV). This aircraft is being tested by the United States Navy for use as an unmanned cargo resupply system for at-sea vessels. This helicopter is also detailed elsewhere on this site.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

March 2018 - Bell Helicopters has taken the veil off of its new Model 407GXi product set to feature the Garmin G1000H NHi avionics fit. It is powered by the Rolls-Royce M250-C47E/4 turboshaft series engine for improved fuel efficiency.

August 2019 - The Bell 407GXi is in the running to meet the United State Navy's "Advanced Helicopter Training System" (AHTS) requirement seeking to replace the aging TH-57 "Sea Ranger" fleet.

Specifications



Bell Helicopter Textron - USA
Manufacturer(s)
El Salvador; Iraq; Jamaica; United Arab Emirates; United States
Operators National flag of Iraq National flag of the United Arab Emirates National flag of the United States
1996
Service Year
United States
National Origin
Active
Project Status
1
Crew
1,400
Units


SPECIAL-MISSION: MECICAL EVACUATION
Extraction of wounded combat or civilian elements by way of specialized onboard equipment and available internal volume or external carrying capability.
INTELLIGENCE-SURVEILLANCE-RECONNAISSANCE
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.


41.7 ft
(12.70 meters)
Length
35.0 ft
(10.67 meters)
Width/Span
11.6 ft
(3.55 meters)
Height
2,668 lb
(1,210 kilograms)
Empty Weight
6,008 lb
(2,725 kilograms)
Maximum Take-Off Weight
+3,340 lb
(+1,515 kg)
Weight Difference


1 x Allison 250-C47B turboshaft engine developing 813 horsepower and driving four-blade main rotor and two-blade tail rotor.
Propulsion
162 mph
(260 kph | 140 knots)
Max Speed
18,701 ft
(5,700 m | 4 miles)
Ceiling
373 miles
(600 km | 324 nm)
Range


MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


Civilian models unarmed. Some security and governmental models can carry limited armament as needed.


Bell 407 - Base Series Designation based on the Bell Model 206L-4 offering.
ARH-70 - Proposed U.S. Army model to serve in the Armed Reconnaissance Helicopter role; cancelled.
Model 417 - Proposed civilian market form of the ARH-70; also cancelled.
Model 407 LOH - Light Observation Helicopter form for the U.S. Army.
Eagle 407 HP - Fitted with Honeywell HTS9000 engine of 1,021 horsepower.
MQ-8C "Fire Scout" - UAV project model developed by Northrop Grumman.
Model 407AH - Governmental / security model supporting armament.
Model 407GX - Improved avionics and controlling; Garmin G1000H cockpit.
Model 407GXi - Model of 2018; Garmin G1000H NHi avionics with Rolls-Royce M250-C47E/4 turboshaft engine.
Model 407GT - Armed variant based in the Model 407GX product.
Model 407GXP - Enhanced performance variant with changes of the Model 407GX.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for Special Forces
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft

Images



1 / 3

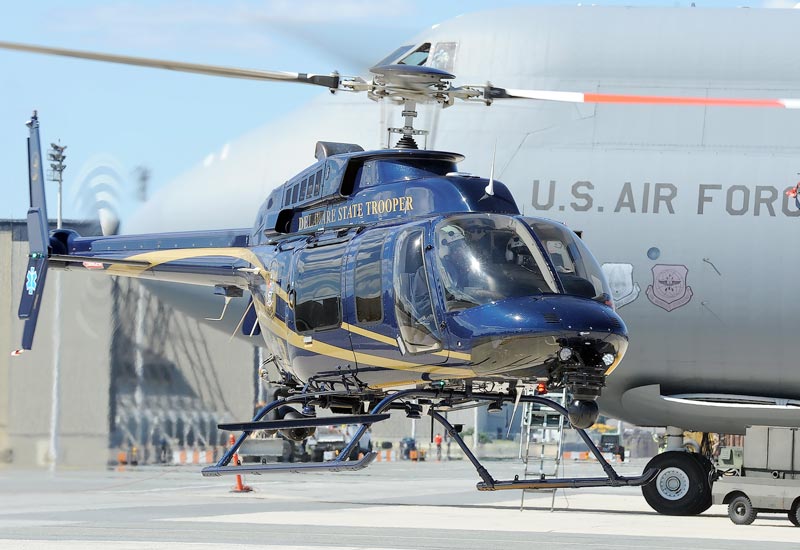

Image of the Bell Model 407
