Martin-Baker MB.2


Fighter Prototype


United Kingdom | 1938



"Largely recognized as an ejection seat-maker today, Martin-Baker began as an aircraft-maker prior to World War 2."



Authored By: Staff Writer | Last Edited: 09/05/2017 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site; No A.I. was used in the generation of this content.
Before the Martin-Baker name became associated with ejection seats in jet-powered aircraft, it established itself as an aircraft maker just prior to World War 2 (1939-1945). The company was formed by (Sir) James Martin as "Martin's Aircraft Works" during 1929 and became the "Martin-Baker Aircraft Company Ltd" in 1934 when Martin partnered with Captain Valentine Baker. Their first joint venture become the civilian market-minded Martin-Baker "MB.1".

Martin-Baker introduced to Britain its first true modern low-wing monoplane form at a time when biplanes were still making up the air service. Its early work on aircraft brought along an all-new construction scheme which simplified both manufacture and maintenance while also proving a weight-saving measure. The aircraft that became the MB.1 aeroplane used a Napier "Javelin" 6-cylinder inline piston engine of 160 horsepower to drive a two-bladed propeller. The cockpit was wholly enclosed for a most modern appearance though the undercarriage used fixed main legs. In testing that occurred during 1935, the aircraft clocked speeds of 125 miles per hour. However the design was not evolved past this sole flyable prototype but nonetheless influenced the still-to-come designs to emerge from the company.

The MB.2 itself was in the works as early as 1935 and its construction began in the following year. The fuselage qualities of the MB.1 were employed into the new aircraft to produce a lightweight form with inherently good aerodynamic qualities. Again the aircraft was being worked on under the guise of a private venture but thought eventually turned to it fulfilling the standing Air Ministry's Specification F.5/34, which appeared in November of 1934, calling for a modern frontline fighter capable of speeds reaching 275 miles per hour and with a service ceiling up to 33,000 feet.

Article Continues Below Advertisement...
ADVERTISEMENTS
The MB.2 emerged as another low-wing monoplane form, the wing mainplanes fitted well-ahead of midships. The engine was held in a compartment at the nose driving a two-bladed propeller unit and the cockpit was seated over the center of the design. Though with a framed canopy, views out-of-the-cockpit were generally good for this type of aircraft configuration - though the long nose and large wing area reduced vision from certain angles. The empennage constituted a single vertical fin and mid-mounted horizontal planes, the latter elevated to clear the wash of the mainplanes ahead. The undercarriage was of a "tail-dragger" configuration and utilized fixed, spatted main legs. A small tail wheel brought up the rear. The aircraft was powered by a Napier-Halford "Dagger III" air-cooled radial piston engine of 1,020 horsepower.

A first flight involving MB.2 was had on August 3rd, 1938 with Captain Baker at the controls. The Aeroplane and Armament Experimental Establishment (AAEE) served the British Air Ministry as its research arm (from 1918 until 1992) and was able to evaluate this early form - docking points off for the aircraft's reliance on a rather outdated fixed undercarriage design (retractable main legs were quickly becoming the norm). Further testing resulted in a modification of the vertical tail fin to counter heavy take-off "swings" and in-flight stability, the latter in play once some speed had been gained.

The revised MB.2 model took to the air with its new tail on May 24th, 1939. The Air Ministry then moved on its own trials for the aircraft which was now known under the marker of "P9594". In the months that followed, handling was found to be quite good and the initial stability issues largely rectified. However, with the outbreak of war in Europe during September of 1939, Ministry interest in the MB.2 ended at it was largely seen that the MB.2 offered little in the way of advancement over the current crop of fighters available to the RAF and RN services. The fixed undercarriage was another major sticking point that dated the MB.2 as a modern fighter, a quality carried over from a previous age of flight. From then on the aircraft languished without much fanfare until scrapped before the end of the war (1945).

As tested, the MB.2 revealed a maximum speed of 304 miles per hour, a service ceiling of 29,000 feet, and a rate-of-climb equal to 2,200 feet-per-minute. As a fighter development, proposed armament was 8 x 0.303 caliber machine guns - to be fitted as four guns to a wing. This never occurred.

The MB.2 was succeeded by the development of the MB.3, this form introduced to fulfill Air Ministry Specification F.18/39. The aircraft is detailed elsewhere on this site.

Content ©MilitaryFactory.com; No Reproduction Permitted.
Power & Performance
Those special qualities that separate one aircraft design from another. Performance specifications presented assume optimal operating conditions for the Martin-Baker MB.2 Fighter Prototype.
1 x Napier Dagger III 24-cylinder H-type air-cooled radial piston engine developing 1,000 horsepower.
Propulsion
304 mph
490 kph | 265 kts
Max Speed
29,003 ft
8,840 m | 5 miles
Service Ceiling
870 miles
1,400 km | 756 nm
Operational Range
2,200 ft/min
671 m/min
Rate-of-Climb
City-to-City Ranges
Operational range when compared to distances between major cities (in KM).
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Structure
The nose-to-tail, wingtip-to-wingtip physical qualities of the Martin-Baker MB.2 Fighter Prototype.
1
(MANNED)
Crew
34.8 ft
10.60 m
O/A Length
34.1 ft
(10.40 m)
O/A Width
9.8 ft
(3.00 m)
O/A Height
4,409 lb
(2,000 kg)
Empty Weight
5,512 lb
(2,500 kg)
MTOW
Design Balance
The three qualities reflected below are altitude, speed, and range. The more full the box, the more balanced the design.
RANGE
ALT
SPEED
Armament
Available supported armament and special-mission equipment featured in the design of the Martin-Baker MB.2 Fighter Prototype .
PROPOSED (not fitted):
8 x 0.303 caliber Browning M1919 machine guns in wings (four guns to a wing).
Variants
Notable series variants as part of the Martin-Baker MB.2 family line.
MB.2 - Base Series Designation; sole example completed.
Operators
Global customers who have evaluated and/or operated the Martin-Baker MB.2. Nations are displayed by flag, each linked to their respective national aircraft listing.

Total Production: 1 Units

Contractor(s): Martin-Baker - UK
National flag of the United Kingdom

[ United Kingdom (cancelled) ]
Relative Max Speed
Hi: 400mph
Lo: 200mph
Aircraft Max Listed Speed (304mph).

Graph Average of 300 MPH.
Era Crossover
Pie graph section
Pie graph section
Showcasing Aircraft Era Crossover (if any)
Max Alt Visualization
Small airplane graphic
Production Comparison
1
36183
44000
Entry compared against Ilyushin IL-2 (military) and Cessna 172 (civilian) total production.
MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030
Aviation Timeline
EarlyYrs
WWI
Interwar
WWII
ColdWar
Postwar
Modern
Future
1 / 1

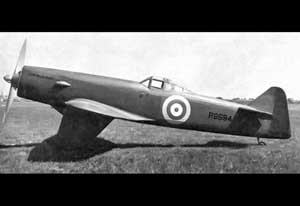

Image of the Martin-Baker MB.2
Image from the Public Domain.

Mission Roles
Some designs are single-minded in their approach while others offer a more versatile solution to airborne requirements.
AIR-TO-AIR COMBAT
X-PLANE
Recognition
Some designs stand the test of time while others are doomed to never advance beyond the drawing board; let history be their judge.
