Boeing Insitu ScanEagle 2


Unmanned Aerial Vehicle (UAV) [ 2016 ]



The Insitu ScanEagle 2 is a further evolution of the popular ScanEagle line.



Authored By: Staff Writer | Last Edited: 08/14/2022 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The "ScanEagle 2" is a further evolution of the Boeing Insitu "ScanEagle" Unmanned Aerial Vehicle (UAV) series (detailed elsewhere on this site). The new model brings about use of a new heavy-fuel engine for improved reliability as well as broadening the product's line for increased service in commercial markets. To date the ScanEagle series has served the United States military, special forces elements and other major military powers of the world with good results. It is also used in some commercial sectors like the oil industry.

When compared to the original product, ScanEagle 2 incorporates a larger nose assembly to better support mission optics and sensor equipment. Its payload limit has also been increased. A tubular fuselage is retained as are swept-back wing mainplanes. The new engine, provided by Orbital, is seated at the rear of the design and drives a three-bladed propeller unit in a "pusher" configuration. The wing mainplanes also sport vertical fins at their tips. Launching of the UAV system is by way of a catapult which allows for operation from fixed position, vehicle and warships as small as patrol craft.

November 2018 - Malaysia has established its first all-drone squadron. The force relies on the ScanEagle 2 provided by the United States through the Maritime Security Initiative.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

August 2022 - Turkmenistan has acquired the Boeing Insitu ScanEagle 2 series UAV and will operate these from the deck of their Deniz Han corvette warship.

Advertisements

Specifications



Service Year
2016

Origin
United States national flag graphic
United States

Status
ACTIVE
In Active Service.
Crew
0
UNMANNED
Production
100
UNITS


National flag of Malaysia National flag of Turkmenistan National flag of the United States Malaysia; Turkmenistan; United States
(OPERATORS list includes past, present, and future operators when applicable)
Unmanned Capability
Aircraft inherently designed (or later developed) with an unmanned capability to cover a variety of over-battlefield roles.


Length
5.6 ft
(1.71 m)
Width/Span
10.2 ft
(3.11 m)
Empty Wgt
42 lb
(19 kg)
MTOW
51 lb
(23 kg)
Wgt Diff
+9 lb
(+4 kg)
(Showcased structural values pertain to the base Boeing Insitu ScanEagle 2 production variant)
monoplane / shoulder-mounted / swept-back
Monoplane
Design utilizes a single primary wing mainplane; this represent the most popular mainplane arrangement.
Shoulder-Mounted
Mainplanes are mounted at the upper section of the fuselage, generally at the imaginary line intersecting the pilot's shoulders.
Swept-Back
The planform features wing sweep back along the leading edges of the mainplane, promoting higher operating speeds.
(Structural descriptors pertain to the base Boeing Insitu ScanEagle 2 production variant)
Installed: 1 x Orbital heavy-fuel (JP5 or JP8) gasoline engine driving three-bladed propeller unit in "pusher" configuration.
Max Speed
92 mph
(148 kph | 80 kts)
Ceiling
19,521 ft
(5,950 m | 4 mi)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Boeing Insitu ScanEagle 2 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None. Mission payload of 7.7 pounds and consists of sensor and optical equipment.


Supported Types




(Not all ordnance types may be represented in the showcase above)
ScanEagle 2 - Base Series Name.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

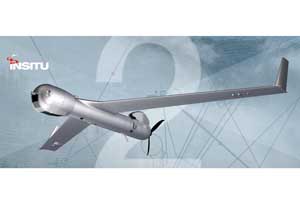

Image from official Insitu marketing material.
