Mil Mi-2 (Hoplite)


Light Utility / Training Helicopter [ 1965 ]



Nearly 5,500 of the Mil Mi-2 helicopters were produced from 1965 until 1998.



Authored By: Staff Writer | Last Edited: 11/14/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The Soviet helicopter industry began with the introduction of the Mil Mi-1, a simple, single engine development which appeared in 1950 and was followed in production by 2,594 examples into 1965. The next logical step in its development was the Mil Mi-2 which emerged from PZL-Swidnik of Poland in 1965. A prototype achieved first-flight in 1961 and, from there, 5,497 examples followed. It became known to NATO as "Hoplite".

The Mi-2 was larger than its predecessor and fitted two engines over its cabin. It relied on a three-point, fixed, wheeled undercarriage and could be operated by a single crewman. The cabin provided seating for up to eight passengers and could relatively easily be converted to the cargo transport role. Such was the versatility of this product that some air services of the world armed the type and modified it for other roles such as Search and Rescue (SAR).

The major shift on the Mi-2's design from the preceding Mi-1 was the switch from a radial engine to a turbine which was in line with developments witnessed in the West. This accordingly spurred work on a new Soviet turbine for which to use in an equally-new helicopter design, the engine designated GTD-350 and developed by one S.P. Isotov. The end-result was a more powerful rotary-wing platform which increased performance considerably and allowed a single airframe to undertake multiple roles - and compete with Western developments. The prototype went airborne on September 22nd, 1961 as the "V-2" and armaments trials were eventually had through the "V-2V" prototype that followed.

Early production forms were the Mi-2 "Platan", a minelaying platform, the Mi-2A and the upgraded Mi-2B (the latter intended for the export market). The Mi-2Ch "Chekla" became a smokescreener / chemical reconnaissance model and the Mi-2D "Przetacznik" an airborne command post with applicable equipment installed. The Mi-2FM was developed for surveying and the Mi-2P was used in the commercial passenger / cargo hauling roles. The Mi-2R became a mainstay in agriculture and the Mi-2RL was outfitted for the rescue / MEDEVAC role. Its maritime Search and Rescue (SAR) counterpart was the Mi-2RM. The Mi-2Ro was used in the reconnaissance role and a reconnaissance trainer became the UMi-2Ro.

The Mi-2RS "Padalec" was specifically developed for the chemical / biohazard reconnaissance role and the Mi-2S was an air ambulance. The Mi-2Sz and Mi-2U marks featured a dual-control scheme for training.

Mi-2T was modified to carry cargo and could haul up to 1,545lb of internal loads and 1,765lb of externally-slung loads. Performance included a maximum speed of 125 miles per hour, a range of 275 miles and a service ceiling of 13,125 feet. Rate-of-climb reached 885 feet-per-minute.

The Mi-2US was an armed version sporting a 23mm NS-23 automatic cannon in a fixed, forward-firing mount. it also carried up to 4 x 7.62mm PKT machine guns and could install another PK machine gun at the cabin door.

The Mi-2URP "Salamandra" was outfitted for the anti-tank role with the 23mm NS-23 autocannon and 4 x AT-3 "Sagger" Anti-Tank Guided Missiles (ATGMs). The Mi-2URN "Zmija" became an armed reconnaissance model with 23mm NS-23 autocannon and 2 x 16-shot S-5 unguided rocket pods. Additional 7.62mm machine guns could also be installed as needed. The Mi-2URP-G "Gniewosz" mounted 4 x Strela-2 Air-to-Air Missiles (AAMs).

The Mi-2 "Plus" was an upgraded Mi-2 model featuring GTD-350W2 series engines. it also incorporated a modernized avionics suite and composite main rotor blades. The Mi-2MSB was a modernized form and passenger hauler for the civilian market. The Mi-2MSB-V was another modernized form, though military in nature, and intended for the Ukrainian Air Force.

Operators of the Mi-2 ranged from Algeria and Armenia to the Ukraine and Yugoslavia - many were former Soviet allied nations and states. While many operators have given up on the type, many continue its use including the modern North Korean Air Force.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1965

Origin
Soviet Union national flag graphic
Soviet Union

Status
ACTIVE
In Active Service.
Crew
1

Production
5,497
UNITS


Mil Helicopter Plant - Soviet Union / PZL-Swidnik - Poland
(View other Aviaton-Related Manufacturers)
National flag of Algeria National flag of Armenia National flag of Azerbaijan National flag of Belarus National flag of Bulgaria National flag of Cuba National flag of Czechia National flag of Estonia National flag of modern Germany National flag of East Germany National flag of Hungary National flag of India National flag of Indonesia National flag of Latvia National flag of Libya National flag of Lithuania National flag of Mexico National flag of Myanmar National flag of Nicaragua National flag of North Korea National flag of Peru National flag of Poland National flag of Russia National flag of Slovakia National flag of the Soviet Union National flag of Syria National flag of Ukraine National flag of the United States National flag of Yugoslavia Algeria; Armenia; Azerbaijan; Belarus; Bulgaria; Cuba; Czech Republic; Djibouti; Estonia; East Germany; Germany; Hungary; Indonesia; India; Latvia; Libya; Lithuania; Mexico; Mongolia; Myanmar (Burma); Nicaragua; North Korea; Poland; Peru; Russia (Soviet Union); Slovakia; Syria; Ukraine; United States; Yugoslavia
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Special-Mission: Airborne Early Warning (AEW)
Specially-equipped platform providing over-battlefield Command and Control (C2) capability for allied aerial elements.
Special-Mission: Electronic Warfare (EW)
Equipped to actively deny adversaries the ElectroMagnetic (EM) spectrum and protect said spectrum for allied forces.
Special-Mission: MEDical EVACuation (MEDEVAC)
Extraction of wounded combat or civilian elements by way of specialized onboard equipment and available internal volume or external carrying capability.
Special-Mission: Search & Rescue (SAR)
Ability to locate and extract personnel from areas of potential harm or peril (i.e. downed airmen in the sea).
Transport
General transport functionality to move supplies/cargo or personnel (including wounded and VIP) over range.
Commercial Aviation
Used in roles serving the commercial aviation market, ferrying both passengers and goods over range.
VIP Service
Used in the Very-Important-Person (VIP) passenger transport role, typically with above-average amenities and luxuries as standard.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.
Special Forces
Serving Special Forces / Special Operations elements and missions.
Training (General)
Developed ability to be used as a dedicated trainer for student pilots (typically under the supervision of an instructor).


Length
37.4 ft
(11.40 m)
Width/Span
47.6 ft
(14.50 m)
Height
12.3 ft
(3.75 m)
Empty Wgt
5,236 lb
(2,375 kg)
MTOW
7,826 lb
(3,550 kg)
Wgt Diff
+2,590 lb
(+1,175 kg)
(Showcased structural values pertain to the Mil Mi-2T production variant)
Installed: 1 x PZL GTD-350P turboshaft engines developing 400 horsepower each and driving four-bladed main rotor and two-bladed tail rotor.
Max Speed
124 mph
(200 kph | 108 kts)
Ceiling
13,123 ft
(4,000 m | 2 mi)
Range
273 mi
(440 km | 815 nm)
Rate-of-Climb
885 ft/min
(270 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Mil Mi-2T production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
Typically none though some dedicated models outfitted with armament for use as gunships and support aircraft. In this case the aircraft was seen with rocket pods, 23mm automatic cannons, Anti-Tank Guided Missiles (ATGMs) and Air-to-Air Missiles (AAMs) installed.


Supported Types


Graphical image of an aircraft automatic cannon
Graphical image of an air-to-air missile weapon
Graphical image of a short-range air-to-air missile
Graphical image of an aircraft anti-tank guided missile
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 2


Mi-2 ("Hoplite") - Base Series Designation
V-2 - Prototype
V-2V - Armaments prototype
Mi-2 "Platan" - Minelayer platform
Mi-2A - Original production model
Mi-2B - Upgraded model for export market.
Mi-2Ch "Chekla" - Smokecreening platform and chemical reconnaissance model.
Mi-2D "Przetacznik" - Aerial Command Post Aircraft
Mi-2FM - Survey industry version
Mi-2P - Passenger / Cargo hauler
Mi-2R Agricultural industry variant
Mi-2RL - Overland Search and Rescue (SAR) platform; MEDEVAC model.
Mi-2RM - Maritime SAR model
Mi-2Ro - Dedicated reconnaissance mount
UMi-2Ro - Reconnaissance trainer model
Mi-2RS "Padalec" - Chemical / biohazard recon model.
Mi-2S - MEDEVAC platform
Mi-2Sz - Dual-control trainer for Mi-2S
Mi-2T - Utility transport model
Mi-2U - Dual-control trainer model
Mi-2US - Armed variant with 23mm cannon and 4 x 7.62mm machine gun pods.
Mi-2URN "Zmija" - Armed reconnaissance model; 23mm autocannon and 2 x 16-shot rocket pods.
Mi-2URP "Salamandra" - Anti-tank platform; 1 x 23mm autocannon and 4 x Anti-tank guided missiles fitted.
Mi-2URP-G "Gniewosz" - Mi-2URP model with support for 4 x AA missiles.
Mi-2 "Plus" - Modernized Mi-2; fitted with composite blades, new avionics suite and GTD-350W2 series engines.
Mi-3 - Proposed, ultimately abandoned successor.
Mi-2MSB - Modernized civilian market model
Mi-2MSB-V - Modernized Ukrainian military model


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 3

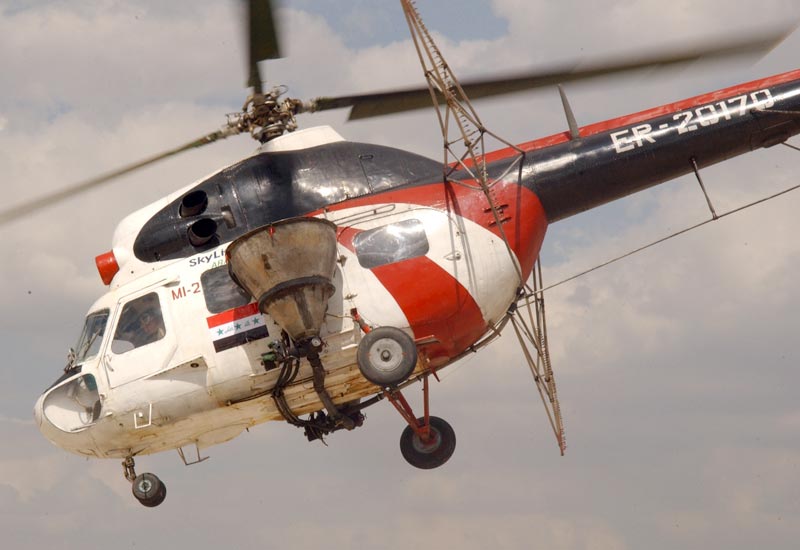

Image of the Mil Mi-2 (Hoplite)
