Avia B.35


Monoplane Fighter Prototype [ 1938 ]



Three prototypes of the Czech Avia B.35 fighter were all that existed by the time of World War 2.



Authored By: Staff Writer | Last Edited: 09/15/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
Prior to World War 2 (1939-1945) the nation of Czechoslovakia maintained a strong local military industry that included design, development and production of various small arms, armored vehicles of aircraft. In the years leading up to the grand war, it invested in a low-wing monoplane of modern design by Avia designated as the "B-35". The aircraft was born from a 1935 Ministry of National Defence requirement calling for a single-seat fighter with enclosed cockpit, monoplane wings and metal skin. The product was intended to succeed the aging line of biplanes still in service with the Czech Air Force.

The B.35 first took to the air on September 28th, 1938. The design showcased a slim fuselage with mid-set cockpit, forward-mounted engine and conventional tail unit using a small-area vertical fin and low-mounted horizontal planes. The wing mainplanes were set ahead of midships and given an elliptical shape akin to that as seen in the classic British Supermarine Spitfire. A Hispano-Suiza 12Ydrs 12-cylinder supercharged, liquid-cooled inline engine of 860 horsepower was fitted to the nose section and this drove a two-bladed propeller. The undercarriage, of a typical "tail-dragger" arrangement, was fixed in place and spatted. The wing mainplanes were constructed largely of wood while the fuselage used a mix of metal and canvas with an underlying structure of steel tubing.©MilitaryFactory.com
Advertisements
In practice, the B-35 seemed a winner for its handling characteristics were deemed good and its performance strong against contemporaries. Maximum speed could reach near 310 miles per hour with ranges out to 310 miles. Rate-of-climb was listed at 2,560 feet per minute.

The program delivered three total prototypes in all and these as the B-35/1, B-35/2 and B-35/3. During testing, the original 12Ydrs engine was superseded by the 12Ycrs series which allowed for a single 20mm cannon to be fitted firing through the propeller hub. The first prototype crashed on November 21st which spurred construction of the slightly revised (smaller ailerons, extended flaps and increased fuselage cross-section) second prototype (B-35/2) - this model took to the air on December 30th, 1938. Following the promising results, the Czech government commissioned for ten preproduction aircraft - though this was derailed with the German occupation of Czechoslovakia during March of 1939.

Despite the occupation, the B-35 product managed to continue development which led to the third prototype (B-35/3), this model earning its wings during a first flight on June 26th, 1939. By this time, the wing mainplanes were modified to feature straight edges along the leading lines (the wings losing their elliptical shape) and a retractable undercarriage was finally fitted. The complete armament suite was now made up of a hub-mounted 20mm autocannon and 2 x 7.92mm wing-mounted machine guns.

In the end, it was these three prototypes that stood for the Avia B-35 aircraft initiative for attention was soon moved to a more evolved form as the "B-135". Bulgarian Air Force pilots were able to trial the B-35/2 prototype back in November of 1939 and later got their hands on the B-35/3 prototype. With the blessings of Berlin, the Bulgarians commissioned for twelve of the type and these served solely with the Bulgarian Air Force during the war.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1938

Origin
Czechoslovakia national flag graphic
Czechoslovakia

Status
CANCELLED
Development Ended.
Crew
1

Production
3
UNITS


National flag of Czechia Czechoslovakia
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
27.9 ft
(8.50 m)
Width/Span
35.6 ft
(10.85 m)
Height
8.5 ft
(2.60 m)
Empty Wgt
3,748 lb
(1,700 kg)
MTOW
4,850 lb
(2,200 kg)
Wgt Diff
+1,102 lb
(+500 kg)
(Showcased structural values pertain to the Avia B.35/1 production variant)
Installed: 1 x Hispano-Suiza 12Ydrs 12-cylinder liquid-cooled engine developing 860 horsepower.
Max Speed
308 mph
(495 kph | 267 kts)
Ceiling
27,395 ft
(8,350 m | 5 mi)
Range
311 mi
(500 km | 926 nm)
Rate-of-Climb
2,560 ft/min
(780 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Avia B.35/1 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
1 x 20mm cannon in nose (firing through the propeller hub).
2 x 7.92mm machine guns in wings.


Supported Types


Graphical image of an aircraft medium machine gun
Graphical image of an aircraft automatic cannon


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


B.35 - Base Series Designation
B.35/1 - Initial prototype; elliptical wings; 12Ydrs engine; fixed, spatted undercarriage.
B.35/2 - Second prototype; 12Ycrs engine; hub-mounted 20mm cannon armament; smaller ailerons; extended flaps; increased fuselage cross-section; fixed undercarriage.
B.35/3 - Third prototype; Revised wing leading edges; armament of 1 x 20mm cannon and 2 x 7.92mm wing machine guns; retractable undercarriage.
B.135


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

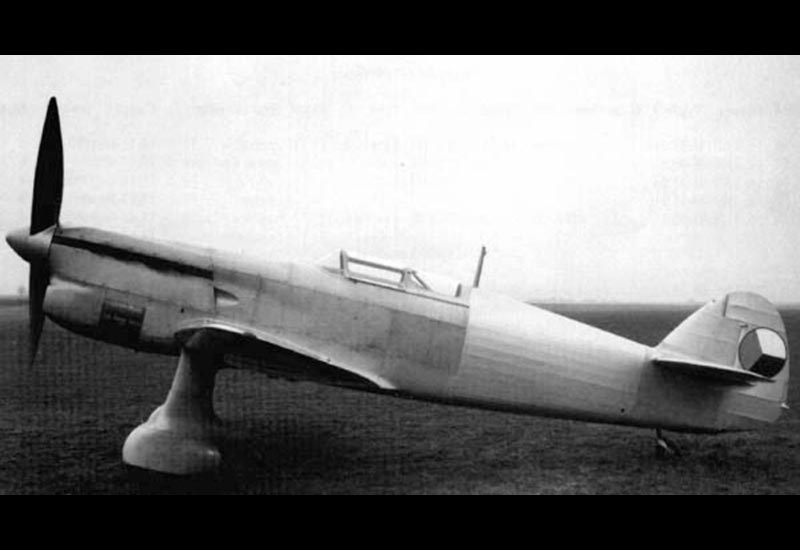

Image of the Avia B.35
