Blohm and Voss Bv P.194


Ground Attack / Tactical Bomber Proposal [ 1944 ]



The Blohm and Voss P.194 aircraft proposal of World War 2 joined many other ultimately-abandoned aircraft initiatives by the company.



Authored By: Staff Writer | Last Edited: 03/30/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
Despite the successes encountered by the German Luftwaffe with their famous Junkers Ju 87 "Stuka" dive bombers in the early phases of World War 2 (1939-1945), the system was becoming obsolete by the middle war years and a search for a successor was all but inevitable. This led to a new RLM requirement of February 1944 which called for a tactical multi-role bomber capable of reproducing the combat results of the aging Ju 87. Blohm and Voss submitted several designs for the requirement and one of these became the P.194. Like so many other B&V submissions for Luftwaffe consideration, the P.194 was from the mind of aviation engineer Richard Vogt.

B&V designs became some of the more unorthodox aircraft designs of the war with Vogt's chief achievement of this lot becoming the "asymmetric" Bv 141. The Bv 141 took on a highly unconventional arrangement in which the aircraft utilized a typical tubular fuselage housing the engine while a separate nacelle was used to house the cockpit. The fuselage and cockpit were both offset from the centerline, the fuselage to portside and the cockpit to starboard. A wing mainplane was driven through the design and provided traditional function for the aircraft. The empennage was attached to the unmanned fuselage portion and displayed a single horizontal plane (set to portside) as well as a single vertical tail fin. The result became what was believed to be a better-balanced aircraft and, despite its radical design, some 28 of the type were believed to have been constructed. The aircraft first flew on February 25th, 1938 and was adopted in limited number for the light bomber / reconnaissance role. Its restricted production reach was largely due to the availability of the engine required but, other that this, the asymmetric design was proven sound enough for military service. The aircraft was also directly challenged by the more conventional Focke-Wulf Fw 189 "Eagle Owl ("Uhu")", a twin-engine, twin-boom offering of which 864 were eventually procured by the Luftwaffe.

With this in mind, the groundwork for the P.194 was laid. The new aircraft was given largely the same asymmetric treatment and involved an offset main fuselage (to portside) housing the engine and tail unit. Unlike the Bv 141, the P.194 was to use a "combination" propulsion scheme involving a conventional "puller" engine at the front of the fuselage and a turbojet engine fitted to the starboard side nacelle. This starboard nacelle was to also showcase the cockpit and fixed standard armament. The conventional engine was to be a BMW 801D 14-cylinder air-cooled radial piston engine of 1,600 horsepower fitted to the extreme front section of the fuselage. The turbojet installation became a Junkers Jumo 109-004 engine with 2,000 pounds of output power. The tail unit, found on the fuselage tube, was a conventional arrangement with single fin structure and a pair of mid-mounted tailplanes.©MilitaryFactory.com
Advertisements
The P.194 was to carry a single crewmember in the cockpit nacelle. The wing mainplane, a straight assembly with clipped tips, ran through both the fuselage tube and the cockpit nacelle. The cockpit was set at the front of the nacelle with armament below and the turbojet engine to also reside in this structure. Thusly, the main fuselage could be reserved for the conventional powerplant, required fuel stores, and an internal bomb bay. A "tail-dragger" wheeled and retractable undercarriage was intended for the aircraft. Dimensions included a length of 12 meters, a wingspan of 15.3 meters, and a height of 3.7 meters. Empty weight was estimated at 14,330 pounds with a gross weight of 20,615 pounds.

Proposed armament, to help fulfill the ground attack requirement, was 2 x 30mm MK 103 cannons paired with 2 x 20mm MG 151/20 cannons - all concentrated in the cockpit nacelle. For bombing runs, the aircraft was designed to carry up to 1,100 pounds of bombs through the internal bomb bay found in the fuselage. It is possible that the aircraft could have also carried externally-mounted stores such as rockets under the wings.

Blohm and Voss drew up several variants for the P.194 project and this included the P.194.00-101 with its 52-foot wingspan. The intake opening for the turbojet engine resided under the cockpit. The P.194.01-02 emerged with a 50-foot wingspan and featured a more useful bubble canopy. The P.194.02-01 was to fit the turbojet under the cockpit as opposed to behind it. P.194.03-01 installed the turbojet intakes at the wing roots to either side of the cockpit nacelle and also feature a 50-foot wingspan with bubble canopy.

Because the P.194 proposal fell to naught and no working prototypes were ever realized, performance specifications were purely estimated - a maximum speed of 485 miles per hour, a range out to 665 miles, and a service ceiling of 36,420 feet. The RLM went on to favor a competing Messerschmitt design and this went on to become the famous Me 262 "Schwalbe" - the world's first jet-powered fighter.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1944

Origin
Nazi Germany national flag graphic
Nazi Germany

Status
CANCELLED
Development Ended.
Crew
1

Production
0
UNITS


Blohm and Voss - Nazi Germany
(View other Aviaton-Related Manufacturers)
National flag of modern Germany National flag of Nazi Germany Nazi Germany
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
39.7 ft
(12.10 m)
Width/Span
50.2 ft
(15.30 m)
Height
12.1 ft
(3.70 m)
Empty Wgt
14,330 lb
(6,500 kg)
MTOW
20,613 lb
(9,350 kg)
Wgt Diff
+6,283 lb
(+2,850 kg)
(Showcased structural values pertain to the base Blohm and Voss Bv P.194 production variant)
Installed: 1 x BMW 801D 14-cylinder air-cooled radial piston engine developing 1,600 horsepower; 1 x Junkers Jumo 109-004 turbojet engine developing 2,000 lb of thrust.
Max Speed
482 mph
(775 kph | 418 kts)
Ceiling
36,417 ft
(11,100 m | 7 mi)
Range
665 mi
(1,070 km | 1,982 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Blohm and Voss Bv P.194 production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
PROPOSED:
2 x 30mm MK 103 cannons in nose.
2 x 20mm MG 151/20 cannons in nose.

OPTIONAL:
Up to 1,100 lb of conventional drop bombs / stores held in an internal bomb bay.


Supported Types


Graphical image of an aircraft automatic cannon
Graphical image of an aircraft conventional drop bomb munition


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


P.194 - Base Project Designation
P.194.00-101 - 52 foot wingspan; turbojet intake under the cockpit nacelle.
P.194.01-02 - 50 foot wingspan; bubble-style canopy
P.194.02-01 - 50 foot wingspan; turbojet installation under cockpit.
P.194.03-01 - 50 foot wingspan; turbojet intakes mounted to cockpit nacelle sides.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

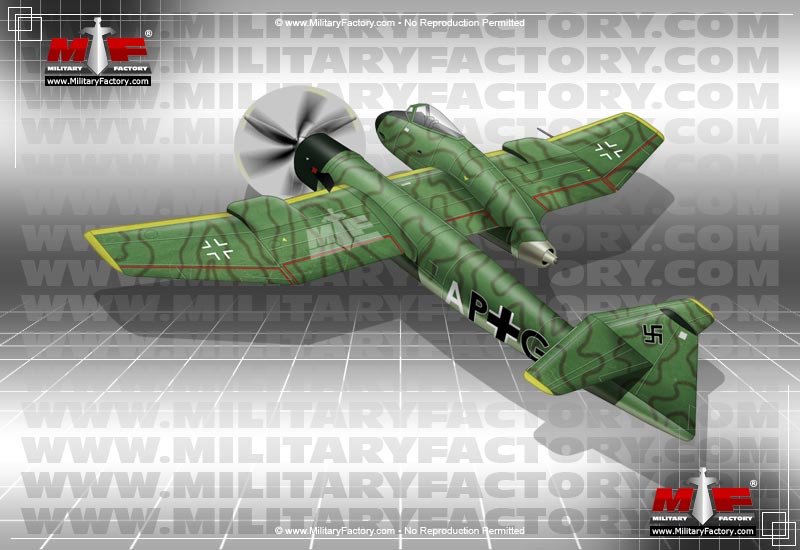

Image of the Blohm and Voss Bv P.194
