Bell AH-1J SeaCobra


Dedicated Two-Seat Attack Helicopter [ 1970 ]



The Bell AH-1 SeaCobra became a USMC derivative of the original U.S. Army AH-1 HueyCobra attack helicopter with changes implemented to suit the service.



Authored By: Staff Writer | Last Edited: 06/14/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
In the latter part of the 1960s, the United States Marine Corps (USMC) had enough interest in the new U.S. Army attack helicopter - the single-engine, two-seat Bell AH-1 "HueyCobra" - that it commissioned for a more capable twin-engine version for maritime use. The Army's AH-1G model was selected as the starting point with the most prominent change being 2 x PT6T-3 turboshafts coupled to a combining transmission system for 1,800 total shaft horsepower. The engine pairing was collectively recognized as the "Turbo Twin-Pac" and formally designated the Pratt & Whitney Canada T400-CP-400). Additional changes lay in the chin armament which added a 20mm three-barreled Gatling-style cannon in a General Electric M97 turret while, by and large, the helicopter remained faithful to the original U.S. Army offering.

The U.S. Army's AH-1 itself held origins in the famous Bell UH-1 "Huey" series transport helicopter to which the AH-1 borrowed much from the earlier Bell product though extensively modified for the dedicated attack role. The attack helicopter was used as a replacement for the several make-shift gunships in service with American forces during the Vietnam War (1955-1975). The USMC variant of the AH-1G was specifically modified to include the dual-engine layout for increased survivability, particularly in the maritime (over-water) environment that the service's helicopters were expected to operate in. The branch ordered the AH-1J through a batch of 49 helicopters in 1968.

The powerplant drove a two-blade main rotor and two-blade tail rotor, the latter set to the starboard side of the tail fin and driven by a shaft housed in the tail boom. The fuselage retained the same slim head-on profile as the AH-1G and seated its crew of two in a standard tandem arrangement - the pilot at the rear and the weapons officer/co-pilot in front. Performance included a never-exceed-speed of 220 miles per hour, a maximum speed of 175 miles per hour, a range out to 560 miles, a service ceiling up to 10,500 feet, and a rate-of-climb of 1,090 feet per minute.

The USMC introduced their "SeaCobra" during September of 1970 and first actions centered around the American involvement in Vietnam in the coastal "hunter-killer" role. The helicopters were primarily armed through multi-shot rocket pods slung under their wingstubs which held two hardpoints apiece. The AH-1J SeaCobra was then offered in an export guise as the AH-1J "International" of which Iran became an operator of.

In 1974, a new version was ordered as the AH-1T "Improved SeaCobra". This model incorporated a new main rotor (from the Bell Model 214), upgraded gearbox, and lengthened fuselage and tailboom. The mark also included support for the Hughes BGM-71A TOW anti-tank missile but the weight added by the changes led to a decrease in performance. This forced Bell to offer 2 x General Electric T700-GE-401 turboshaft engines in 1980 and this, with other modifications including broadened weapons support (Hellfire ATGM, AIM-9 Sidewinder AAM) and day/night capabilities, led to the modernized AH-1W "SuperCobra" (the "Whiskey Cobra") mark. The AH-1W itself came to life as a re-engined AH-1T intended for sale to Iran.

The AH-1J was ultimately supplanted in USMC service by the AH-1W. Twin-engined Cobras saw combat service during the 1991 Gulf War in the tank-killing role as well as the American-led invasions of Afghanistan and Iraq during the 2000s. While the AH-1W remains the standard attack helicopter for the USMC, it is being replaced by the incoming AH-1Z "Viper" mark ("Zulu Cobra") as of this writing (2014) bringing with it improved avionics, uprated engines, and a four-blade main rotor among other changes.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1970

Origin
United States national flag graphic
United States

Status
ACTIVE
In Limited Service.
Crew
2

Production
251
UNITS


Bell Helicopter Textron - USA
(View other Aviaton-Related Manufacturers)
National flag of Iran National flag of the United States Iran; United States
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Close-Air Support (CAS)
Developed to operate in close proximity to active ground elements by way of a broad array of air-to-ground ordnance and munitions options.
Maritime / Navy
Land-based or shipborne capability for operating over-water in various maritime-related roles while supported by allied naval surface elements.


Length
53.3 ft
(16.26 m)
Width/Span
44.0 ft
(13.40 m)
Height
13.7 ft
(4.18 m)
Empty Wgt
6,614 lb
(3,000 kg)
MTOW
10,009 lb
(4,540 kg)
Wgt Diff
+3,395 lb
(+1,540 kg)
(Showcased structural values pertain to the base Bell AH-1J SeaCobra production variant)
Installed: 1 x Pratt & Whitney Canada T400-CP-400 (PT6T-3 "Twin-Pac", limited to 1,530shp) turboshaft engine developing 1,800 shaft horsepower to two-bladed main rotor and two-bladed tail rotor.
Max Speed
175 mph
(282 kph | 152 kts)
Ceiling
10,548 ft
(3,215 m | 2 mi)
Range
357 mi
(575 km | 1,065 nm)
Rate-of-Climb
1,090 ft/min
(332 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Bell AH-1J SeaCobra production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
1 x 20mm M197 triple-barrel Gatling-style gun in General Electric electric-powered chin turret.

OPTIONAL (Across four hardpoints under wingstubs):
2.75" Mk 40 / "Hydra" rocket pods (14-shot pods)
5" "Zuni" rocket pods (4-shot pods)
Hughes BGM-71A TOW Anti-Tank (AT) wire-guided air-to-surface missiles.
AIM-9M Sidewinder short-range air-to-air missiles


Supported Types


Graphical image of an aircraft Gatling-style rotating gun
Graphical image of an air-to-air missile weapon
Graphical image of a short-range air-to-air missile
Graphical image of an aircraft air-to-surface missile
Graphical image of an aircraft anti-tank guided missile
Graphical image of aircraft aerial rockets
Graphical image of an aircraft rocket pod


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 4


AH-1J "SeaCobra" - Base Series Designation; based on the U.S. Army AH-1G airframe; service entry in 1970.
AH-1J "International" - Export model of the AH-1J
AH-1T "Improved SeaCobra" - New main rotor; upgraded gearbox; lengthened fuselage and tailboom; BGM-71A TOW AT missile support.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 8

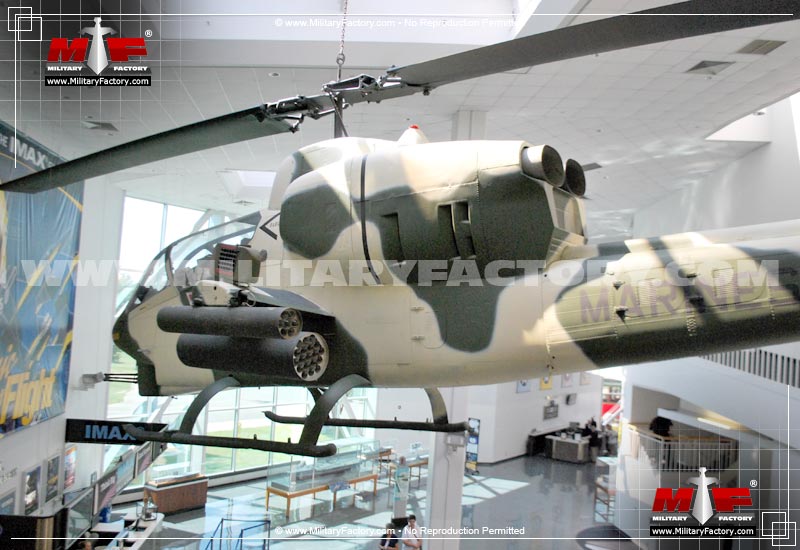

Image of the Bell AH-1J SeaCobra
