Lavochkin La-15 (Fantail)


Jet-Powered Tactical Fighter / Interceptor [ 1949 ]



Aircraft like the Lavochkin La-15 Fantail formed the early-going for the growing Soviet jet program.



Authored By: Staff Writer | Last Edited: 08/18/2019 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
A series of Lavochkin jet-powered fighter prototypes preceded the La-15 (NATO reporting name of "Fantail") tactical fighter / interceptor. Work stemmed from a 1945 Soviet requirement that saw a line of aircraft evolve from the captured German Junkers Jumo 004 turbojet and straight main wings to a Rolls-Royce-based engine (copied under the Klimov brand label) and swept-back wings. A 1946 requirement then streamlined a proposal for an all-modern jet-powered fighter for the Soviet Air Force which incorporated a "T-style" tail configuration - a feature also pioneered by the Germans. The end result became the La-15 which was a further evolution of the one-off La-168 prototype first flying on April 22nd, 1948. The La-15 followed suit and took to the air on January 8th, 1948 to which its serial production form eventually served alongside the competing, and decidedly more famous, Mikoyan-Gurevich MiG-15 fighter of which over 18,000 were eventually built. Comparatively, the La-15 proved a limited success, seeing just 235 produced as its power and performance proved rather underwhelming for the interceptor role. As such, the La-15 series was given up for good by 1953.

The external appearance of the La-15 was not unlike the form of the competing MiG-15. The nose was cut-off to provide the intake for the air-fed turbojet engine at fuselage center. The cockpit was situated over the duct work with a large clear canopy fitted overhead. This provided the pilot with exceptional views all about his aircraft and the canopy was further raised above the rear fuselage spine, adding additional viewing angled over the more vulnerable rear angle. The mainplanes were high-mounted on the fuselage sides and noted for their extensive sweepback. They each featured a pair of strakes to improve flight characteristics, this proving a physical quality added to many of the early Soviet jets including the MiG-15. A large vertical tail unit mounted the horizontal tailplanes high in a near "Tee" arrangement. The undercarriage was of a modern tricycle arrangement and wholly retractable to retain the aircraft's aerodynamic efficiency at speed.

The engine of choice became a Klimov RD-500 centrifugal compressor turbojet powerplant providing 3,500lbs of thrust. Maximum speed reached 626 miles per hour with a range out to 710 miles. The aircraft's service ceiling reached 44,300 feet and rate-of-climb was 6,240 feet per minute.

Armament centered around 3 x 23mm Nudelman-Suranov NS-23 cannons fitted under the nose. 100 rounds of ammunition was loaded per gun. There was no fighter-bomber capability in the La-15 series.

In practice, pilots liked their La-15s but the aircraft did not meet the performance required and production per unit proved complex. It was lighter than the competing MiG-15 but the MiG-15 bettered the Lavochkin aircraft on most all of the performance fronts. Additionally, it graduated to serve in a limited fighter-bomber role over the course of its career, leaving the La-15 to the pages of history. Variants of the La-15 proved few during its service life and production run. "Aircraft 174" was the first prototype and fitted with the Rolls-Royce Derwent turbojet engine. This example crashed during testing. "Aircraft 174D" served as the second prototype and benefitted from the failures of the first. It was accordingly revised into an improved form. "Aircraft 180" became the prototype basis for the two-seat trainer, eventually adopted as the "La-15UTI".

The La-15 fighter line was not exported outside of the Soviet Union.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
1949

Origin
Soviet Union national flag graphic
Soviet Union

Status
RETIRED
Not in Service.
Crew
1

Production
235
UNITS


National flag of the Soviet Union Soviet Union
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
Interception
Ability to intercept inbound aerial threats by way of high-performance, typically speed and rate-of-climb.


Length
29.5 ft
(9.00 m)
Width/Span
27.5 ft
(8.38 m)
Height
12.8 ft
(3.90 m)
Empty Wgt
12,522 lb
(5,680 kg)
MTOW
18,739 lb
(8,500 kg)
Wgt Diff
+6,217 lb
(+2,820 kg)
(Showcased structural values pertain to the base Lavochkin La-15 (Fantail) production variant)
Installed: 1 x Klimov RD-500 turbojet engine developing 3,500lb of thrust.
Max Speed
626 mph
(1,007 kph | 544 kts)
Ceiling
44,291 ft
(13,500 m | 8 mi)
Range
711 mi
(1,145 km | 2,121 nm)
Rate-of-Climb
6,240 ft/min
(1,902 m/min)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Lavochkin La-15 (Fantail) production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
STANDARD:
3 x 23mm Nudelman-Suranov NS-23 cannons under the nose.


Supported Types


Graphical image of an aircraft automatic cannon


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


La-15 ("Fantail") - Base Series Designation
Izdeliye 52 - Product Code
Type 21 - USAF Reporting Name
Aircraft 174 - Initial prototype with Rolls-Royce Derwent turbojet engine installed; lost in crash.
Aircraft 174D - Second prototype; improvements based on Aircraft 174 model.
Aircraft 180 - Proposed two-seat trainer; not adopted.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

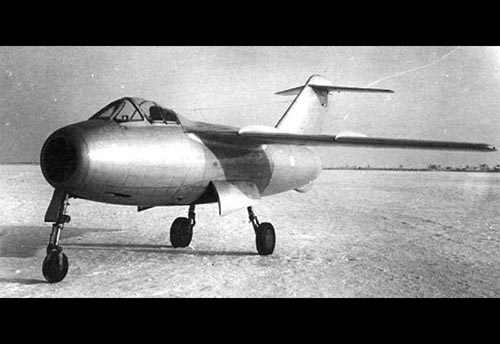

Image from the Public Domain.
