General Atomics Sea Avenger


Unmanned Carrier-Launched Airborne Surveillance and Strike (UCLASS) Vehicle [ 2020 ]



The General Atomics Sea Avenger is a navalized version of the land-based Avenger offering and intended to complete for the US DoD UCLASS program.



Authored By: Staff Writer | Last Edited: 05/22/2018 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
The United States Navy's "Unmanned, Carrier-Launched, Airborne Surveillance and Strike" (UCLASS) program was launched to deliver a viable, carrier-based UAV combat system capable of working in concert with existing naval aircraft and systems. The UCLASS vehicle is expected to take on a myriad of roles once reserved for manned aircraft systems including intelligence gathering, aerial reconnaissance, targeting and light strike capabilities. The UCLASS program is expected to announce a contract sometime in the third quarter of fiscal year 2015.

To that end, General Atomics, recognized worldwide by its popular "Predator" series of unmanned aircraft, has begun development of a demonstrator in the mold of their emerging Avenger line ("Predator C") for the United States Air Force. This new variant has been called "Sea Avenger" and is expected to be dimensionally larger than its land-based predecessor, appropriately modified for the rigors of at-sea operation. The aircraft will make use of a jet engine buried within the contours of its fuselage and stealth characteristics will be applied where possible. Additionally, a sensor package will be retractable into the fuselage for stealth and communications will be handled via satellite - coordinated with existing USN systems and hardware. The enlarged nature of the Sea Avenger will also promote greater internal volume for larger munitions than seen in the Avenger product. Beyond its internal weapons bays, the drone will feature external hardpoints as well and one concept is of a "buddy" in-flight refueling aircraft to serve accompanying fighters.

A highly optimistic design at this stage, the Sea Avenger will compete against offerings from Lockheed and perhaps Northrop and Boeing in attempting to come in at/under cost and offer the required endurance and mission capabilities. The Northrop offering is expected to be formed from their existing X-47B carrier-based demonstrator. The Lockheed submission is known as the "Sea Ghost" with the Boeing model possibly emerging from their "Phantom Ray" endeavor.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
2020

Origin
United States national flag graphic
United States

Status
IN-DEVELOPMENT
Program in Progress.
Crew
1

Production
1
UNITS


General Atomics Aeronautical Systems, Incorporated - USA
(View other Aviaton-Related Manufacturers)
National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
Ground Attack (Bombing, Strafing)
Ability to conduct aerial bombing of ground targets by way of (but not limited to) guns, bombs, missiles, rockets, and the like.
Intelligence-Surveillance-Reconnaissance (ISR), Scout
Surveil ground targets / target areas to assess environmental threat levels, enemy strength, or enemy movement.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.
Unmanned Capability
Aircraft inherently designed (or later developed) with an unmanned capability to cover a variety of over-battlefield roles.


Length
55.0 ft
(16.76 m)
Width/Span
75.0 ft
(22.86 m)
MTOW
29,983 lb
(13,600 kg)
(Showcased structural values pertain to the base General Atomics Sea Avenger production variant)
Installed: 1 x Pratt & Whitney Canada PW545B turbofan engine developing 6,400 lb of thrust (estimated).
Max Speed
463 mph
(745 kph | 402 kts)
Ceiling
59,990 ft
(18,285 m | 11 mi)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base General Atomics Sea Avenger production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
Internal weapons bay for air-to-surface guided/homing missiles or precision-guided drop bombs.


Supported Types


Graphical image of an aircraft conventional drop bomb munition
Graphical image of an aircraft guided bomb munition


(Not all ordnance types may be represented in the showcase above)
Sea Avenger - Base Series Designation


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

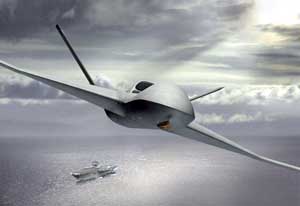

Image of the General Atomics Sea Avenger
Image courtesy of General Atomics Aeronautical Systems, Incorporated marketing material; All Rights Reserved.
