Lippisch P.13A


Ramjet-Powered Interceptor Proposal [ 1944 ]



One of the most fascinating and unorthodox of all the viable German jet-powered designs was the coal-burning Lippisch P.13A delta-winged interceptor.



Authored By: Staff Writer | Last Edited: 12/29/2021 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

VIEW SPECIFICATIONS [+]
Alexander Lippisch (1894-1976) became an important figure in aviation research, having earned his "wings" as an aerial photographer during World War 1 (1914-1918). Lippisch's greatest claim to fame would become the famous Messerschmitt Me 163 "Komet" rocket-powered interceptor which entered operational service with the German Luftwaffe in World War 2 (1939-1945). Throughout the war, Lippisch continued his ground-breaking work and developed some of the more fantastical of the German "paper airplane" designs - holding a strong belief in his creations to the end and delving ever-deeper into the world of delta- and flying-winged flight. Lippisch would eventually come to work for the United States in the post-war world and develop his concepts even further before passing away in Iowa at the age of 81.

The Lippisch Li P.13A was a project centered around supersonic flight through a unique airframe shape and ramjet-provided thrust. Lippisch set to work on a peculiar model that was unlike any of the war, an airframe whose general shape was akin to a diamond or triangle intended to incorporate the swept-back wing surfaces and low aspect ratio needed for supersonic travel at speeds beyond Mach 1.0. The P.13A was the embodiment of his thinking, situating the single-seat cockpit at the center of the design and as part of the frontal face of a large dorsal rudder. The fuselage was flat from a side profile and triangular from the overhead perspective, essentially a tailless "flying wing" had the dorsal rudder been removed. Wings were swept-back at an angle of 60-degrees to provide the best balance of high-speed flight and stability at those speeds. The engine would be buried in the fuselage under the cockpit floor and the installation would run with ductwork from nose to tail. The nose was a cylindrical intake port with the engine exhausting through a conventional nozzle at the base of the rudder. The fuselage would house the needed avionics and fuel stores. Developed from the outset as a technology demonstrator intending to prove the viability of several qualities (supersonic flight, excellent operational ranges through a streamlined design and low-cost operation), the P.13A surely looked to become one of the more important aviation products in history.

However, the situation heading into 1944 presented a different sort of Germany, one embroiled in a war along two fronts against multiple enemies. The Allied bombing campaign in the West was taking its toll on German infrastructure and its positions in German-held territories. In the East, the Soviet Union was amassing greater forces on a seemingly daily basis to enact thunderous offensives against battle-weary German Army troops. It would seem, from this point forward, that a defensive stand was the growing call of the day for Germany. Add to this that resources were proving scarce and talent was committed to critical projects that could be put to use immediately for the Reich, there proved little time for fanciful innovation.

With the current state of things as they were, Lippisch moved his P.13A along project under the guise of it being an interceptor project. The program suffered an early setback when the model was destroyed in an Allied air raid over Vienna. Regardless, enough of the program survived to keep the P.13A initiative alive for the interim. To power the airframe - and due to strict resources control of conventional fuels - Lippisch decided upon a coal-burning ramjet engine by Kronach to power his triangular fighter. Take-off would have been assisted by jettisonable rockets, allowing the vehicle to reach the minimum required 150mph speed before committing to the ascend. From there, Lippisch reasoned his creation could advance to 400 miles per hour as its maximum speed. Range would be 1,000 miles on one ton of coal fuel, utilizing the special airframe in conjunction with its ramjet propulsion for maximum efficiency. Tests were undertaken through a powerless research glider known as the "DM-1".©MilitaryFactory.com
Ramjet propulsion was essentially an offshoot of the jet, intended to utilize the basic forward motion of a speeding aircraft in flight to help compress incoming air without a rotary compressor component. The air entered the engine through an inlet in the usual way, was compressed prior to fuel injection and ahead of a combustion chamber. Through a nozzle at the rear of the ramjet's design, the generated force was exhausted via a port in the normal way. Ramjets operated their best at supersonic speeds which made sense for Lippisch's project goal of supersonic flight. However, because ramjets lacked the traditional power of turbojets at low speeds (i.e. for taxiing and take-off procedures) such aircraft would have to be fitted with alternative thrust means for reaching the desired minimum speeds - hence the P13A's expected use of jettisonable rockets.

One of the more interesting design qualities of the P.13A would be its use of a coal supply (granule sized) situated within a wire mesh basket and set inside the intake duct. Science was the call of the day as a chain reaction was experienced within the duct to generate the required fuel, eventually producing carbon dioxide and ignited by a gas flame. The fumes produced from this action would then be mixed under high pressure and jettisoned through the exhaust port at the rear of the aircraft, generating the required thrust. The ramjet engine would be enacted at speeds in excess of 200mph which is why a rocket-assisted take-off was required.

Testing of a small scale P.13A were undertaken in May of 1944 outside of Vienna. By this time, the war in Europe had come to a close and United States ground forces had moved in to claim much of Lippisch's work regarding his P.13A. He and his design team were charged by American authorities with finishing the P.13A project for the benefit of United States research. To this end, the coal-burning powerplant was completed and successfully tested and the airframe proven viable. Lippisch was eventually absorbed into the American aviation research programs revolving high-speed flight during the 1950s and 1960s, primarily under the employ of Convair. His "triangle" fighter theory was later realized through the prototype XF-92 and the upcoming F-102 Delta Dagger and F-106 Delta Dart interceptors - all Convair products.

For the P.13A, the war ended before any prototype could be finalized and flown - the DM-1 glider certainly provided much of the needed data for subsequent prototypes. Armament could only be estimated though the P-13A's compact size may have precluded use of cannon, leaving only heavy caliber machine guns as a possible option. However, by this point in the war, all newer German fighter designs were being fitted with cannon in an effort to make short work of Allied bomber formations. To some extent, Lippisch's triangle fighter design was proven sound and undoubtedly well-ahead of its time, leaving the fortunate United States to benefit most from his research.

The P.13B became a somewhat related program development which sought to combine the best qualities of the DM-1 glider and the P.13A project along a new airframe and ramjet configuration. However, this design appeared in paper form only. The P.13B held a more conventional arrangement with a standalone cockpit position fitted to the very front of the fuselage, side-mounted intakes built into the wing leading edges and an all-new delta wing planform taking on a clipped triangle shape. The airframe featured a pair of vertical tail fins unlike the single large dorsal unit of the preceding P.13A. Power was to be served through a single Kronach Lorin Duct ramjet.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.

Specifications



Service Year
1944

Origin
Nazi Germany national flag graphic
Nazi Germany

Status
CANCELLED
Development Ended.
Crew
1

Production
1
UNITS


National flag of modern Germany National flag of Nazi Germany Nazi Germany
(OPERATORS list includes past, present, and future operators when applicable)
Air-to-Air Combat, Fighter
General ability to actively engage other aircraft of similar form and function, typically through guns, missiles, and/or aerial rockets.
Interception
Ability to intercept inbound aerial threats by way of high-performance, typically speed and rate-of-climb.
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
22.0 ft
(6.70 m)
Width/Span
19.7 ft
(6.00 m)
Height
10.7 ft
(3.25 m)
MTOW
5,071 lb
(2,300 kg)
(Showcased structural values pertain to the base Lippisch P.13A production variant)
Installed: 1 x Kronach Lorin coal-fueled ramjet engine.
Max Speed
404 mph
(650 kph | 351 kts)
Range
385 mi
(620 km | 1,148 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the base Lippisch P.13A production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
PROPOSED STANDARD:
2 x 30mm Mk 108 cannons in wing leading edges


Supported Types


Graphical image of an aircraft automatic cannon


(Not all ordnance types may be represented in the showcase above)
Hardpoint Mountings: 0


P.13A - Base Series Designation
P.13B - P.13A revised into a more conventional design form; forward-set cockpit, twin vertical tail fins, clipped triangle wing planform; existed in paper stage only.


General Assessment
Firepower
Performance
Survivability
Versatility
Impact
Values are derrived from a variety of categories related to the design, overall function, and historical influence of this aircraft in aviation history.
Overall Rating
The overall rating takes into account over 60 individual factors related to this aircraft entry.
20
Rating is out of a possible 100 points.
Relative Maximum Speed
Hi: 500mph
Lo: 250mph
This entry's maximum listed speed (404mph).

Graph average of 375 miles-per-hour.
City-to-City Ranges
NYC

  LON
LON

  PAR
PAR

  BER
BER

  MOS
MOS

  TOK
TOK

  SYD
SYD

  LAX
LAX

  NYC
Lippisch P.13A operational range when compared to distances between major cities (in KM).
Aviation Era Span
Pie graph section
Showcasing era cross-over of this aircraft design.
Unit Production (1)
1
36183
44000
Compared against Ilyushin IL-2 (military) and Cessna 172 (civilian).
>>

Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

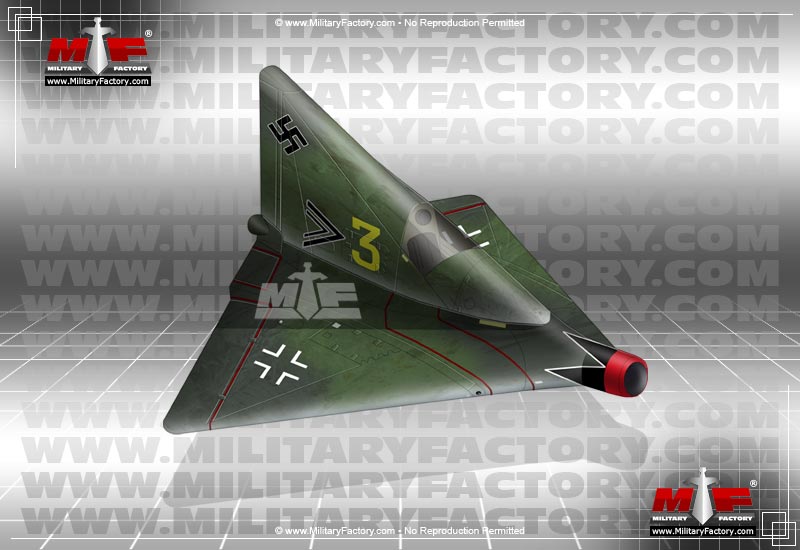

Image of the Lippisch P.13A
