Boeing X-51 (Waverider)


Scramjet Technology Demonstrator [ 2010 ]



The Boeing X-51 Waverider product is a pioneering effort in the realm of SCRAMJET engines.



Authored By: Staff Writer | Last Edited: 04/25/2016 | Content ©www.MilitaryFactory.com | The following text is exclusive to this site.

GO TO SPECIFICATIONS [+]
Advertisements
The Boeing X-51 "Waverider" is an unmanned technology demonstrator designed to further develop the concept of shockwave-assisted, high-speed flight by way of an internal scramjet engine. The product was born from the 1990s-era Scramjet Engine Demonstrator program in which the SJX61 hydrocarbon-fueled engine was originally developed for the X-43, a NASA-sponsored unmanned hypersonic technology demonstrator (the "Hyper-X" program). While the X-43 eventually fell to naught, the research was later rolled into the Boeing X-51. Following a steady stream of ground tests beginning in 2006, the X-51 prototype recorded its first flight on May 26th, 2010 to which the test vehicle reached speeds of 4,000 miles per hour (Mach 6) when launched from a Boeing B-51 Stratofortress mothership. As of this writing (2013), the X-51 has been produced in four development examples.

A scramjet engine ("Supersonic Combustion RAMJET") - a concept initially developed in the technology evolution of the 1950s - makes use of incoming air (via an air intake) through extremely high-speed flight, the air being slowed prior to combustion . An inlet body manages the supersonic compression to which fuel is then injected during the combustion process and a nozzle manages the outgoing supersonic exhaust, therefore producing the required thrust. A scramjet, therefore, is related to a "ramjet" in its general approach though, in a ramjet engine, combustion occurs in subsonic airflow as oppose to supersonic. A scramjet can provide speeds rated in Mach values - even as high as Mach 12 - and is a future alternative to the conventionally-powered turbofan engines in wide-scale use today. One of the key limitations of modern scramjet technology is the lack of low-altitude, low-powered capabilities which require the airframe to be airlifted though use of a "host" / "mother" ship for its launching. From there, the scramjet must also be first brought to speed by way of a rocket booster.

The X-51's scramjet powerplant makes use of the same fuel as in the Lockheed SR-71 Blackbird, designated in the USAF inventory as "JP-7". The X-51 is hauled into the air by the host ship (B-52) and then air-launched. The X-51 initially utilizes the power of a modified Lockheed Martin MGM-140 ATacMS (Army Tactical Missile System) solid rocket booster to help clear the host ship and reach initial speeds (approximately Mach 4.5). Once the booster system is spent, the assembly is jettisoned, allowing the Pratt & Whitney Rocketdyne SJY61 scramjet to take over in helping the airframe reach speeds nearing Mach 6. The aerodynamic principles involved in the X-51 fuselage design then react to the naturally-occurring shockwaves to add required lift (hence the nickname of "Waverider"). The fuselage consists of a well-sloped nose cone assembly, streamlined nearly-rectangular fuselage and short stubby wings about the design. An air intake is identified under the fuselage with the scramjet exhausting through the rear of the design in a conventional fashion. In essence, the X-51's configuration is similar to that of a streamlined cruise missile ala the "Tomahawk". Despite its unmanned design, the X-51's project data may very well be applied to all manner of future aircraft still to come - such as a scramjet-powered civilian airliner.

The X-51 sports a running length of 25 feet with an empty weight of 4,000lbs. Its presented operational range is 460 miles with a service ceiling of 70,000 feet.

As of 2013, the X-51 is still in active testing.©MilitaryFactory.com
Note: The above text is EXCLUSIVE to the site www.MilitaryFactory.com. It is the product of many hours of research and work made possible with the help of contributors, veterans, insiders, and topic specialists. If you happen upon this text anywhere else on the internet or in print, please let us know at MilitaryFactory AT gmail DOT com so that we may take appropriate action against the offender / offending site and continue to protect this original work.
Advertisements

Specifications



Service Year
2010

Origin
United States national flag graphic
United States

Crew
0
UNMANNED
Production
4
UNITS


National flag of the United States United States
(OPERATORS list includes past, present, and future operators when applicable)
X-Plane (Developmental, Prototype, Technology Demonstrator)
Aircraft developed for the role of prototyping, technology demonstration, or research / data collection.


Length
25.0 ft
(7.62 m)
Empty Wgt
3,968 lb
(1,800 kg)
(Showcased structural values pertain to the Boeing X-51A (Waverider) production variant)
Installed: 1 x Pratt & Whitney SJX61 hydrocarbon fuel scramjet engine.
Max Speed
3,604 mph
(5,800 kph | 3,132 kts)
Ceiling
69,882 ft
(21,300 m | 13 mi)
Range
460 mi
(740 km | 1,370 nm)


♦ MACH Regime (Sonic)
Sub
Trans
Super
Hyper
HiHyper
ReEntry
RANGES (MPH) Subsonic: <614mph | Transonic: 614-921 | Supersonic: 921-3836 | Hypersonic: 3836-7673 | Hi-Hypersonic: 7673-19180 | Reentry: >19030


(Showcased performance specifications pertain to the Boeing X-51A (Waverider) production variant. Performance specifications showcased above are subject to environmental factors as well as aircraft configuration. Estimates are made when Real Data not available. Compare this aircraft entry against any other in our database or View aircraft by powerplant type)
None.


Supported Types




(Not all ordnance types may be represented in the showcase above)
X-51 - Base Series Designation
X-51A - Initial Demonstration vehicle; 4 examples produced.


Military lapel ribbon for Operation Allied Force
Military lapel ribbon for the Arab-Israeli War
Military lapel ribbon for the Battle of Britain
Military lapel ribbon for the Battle of Midway
Military lapel ribbon for the Berlin Airlift
Military lapel ribbon for the Chaco War
Military lapel ribbon for the Cold War
Military lapel ribbon for the Cuban Missile Crisis
Military lapel ribbon for pioneering aircraft
Military lapel ribbon for the Falklands War
Military lapel ribbon for the French-Indochina War
Military lapel ribbon for the Golden Age of Flight
Military lapel ribbon for the 1991 Gulf War
Military lapel ribbon for the Indo-Pak Wars
Military lapel ribbon for the Iran-Iraq War
Military lapel ribbon for the Korean War
Military lapel ribbon for the 1982 Lebanon War
Military lapel ribbon for the Malayan Emergency
Military lapel ribbon representing modern aircraft
Military lapel ribbon for the attack on Pearl Harbor
Military lapel ribbon for the Six Day War
Military lapel ribbon for the Soviet-Afghan War
Military lapel ribbon for the Spanish Civil War
Military lapel ribbon for the Suez Crisis
Military lapel ribbon for the Ukranian-Russian War
Military lapel ribbon for the Vietnam War
Military lapel ribbon for Warsaw Pact of the Cold War-era
Military lapel ribbon for the WASP (WW2)
Military lapel ribbon for the World War 1
Military lapel ribbon for the World War 2
Military lapel ribbon for the Yom Kippur War
Military lapel ribbon for experimental x-plane aircraft


Ribbon graphics not necessarily indicative of actual historical campaign ribbons. Ribbons are clickable to their respective aerial campaigns / operations / aviation periods.

Images Gallery



1 / 1

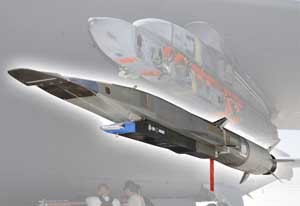

Image of the Boeing X-51 (Waverider)
